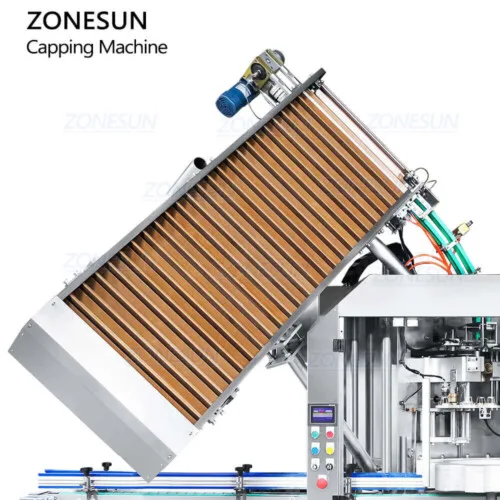

Wine Bottle Corking Muselet Caging Capping Machine

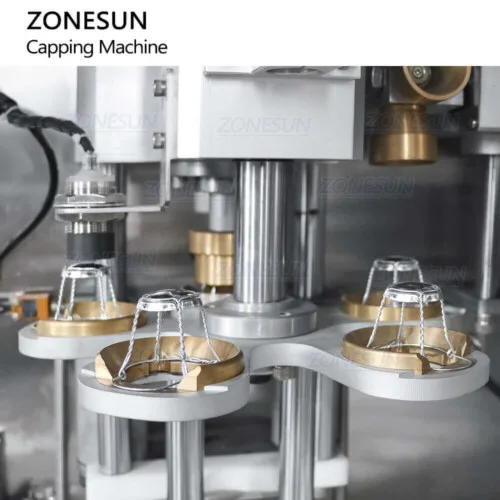

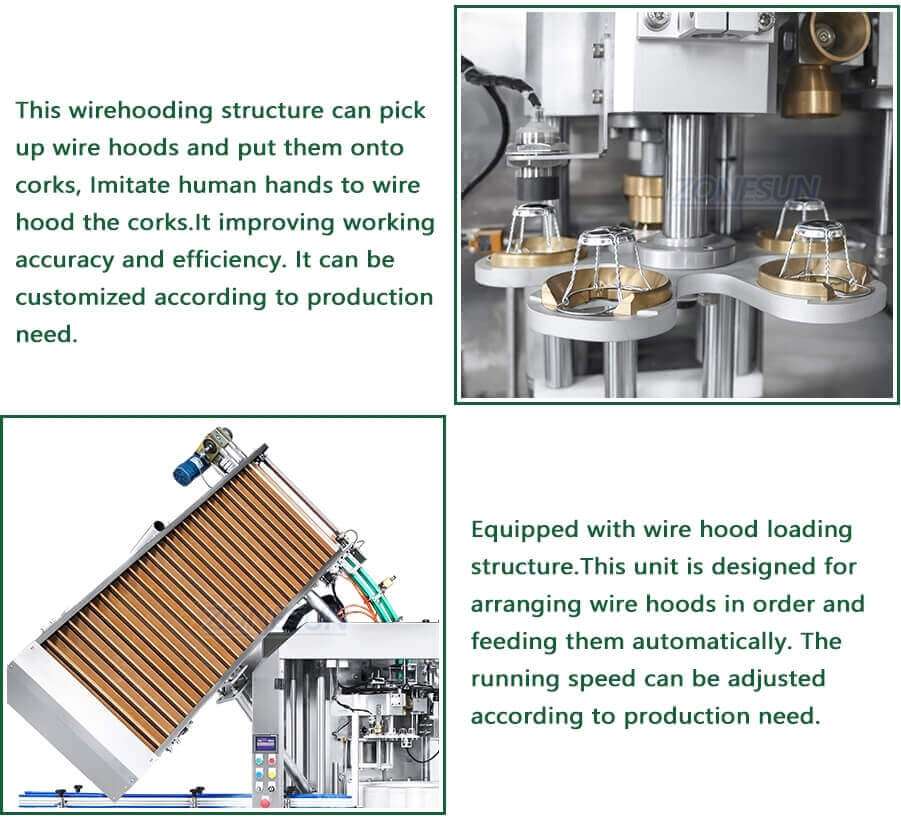

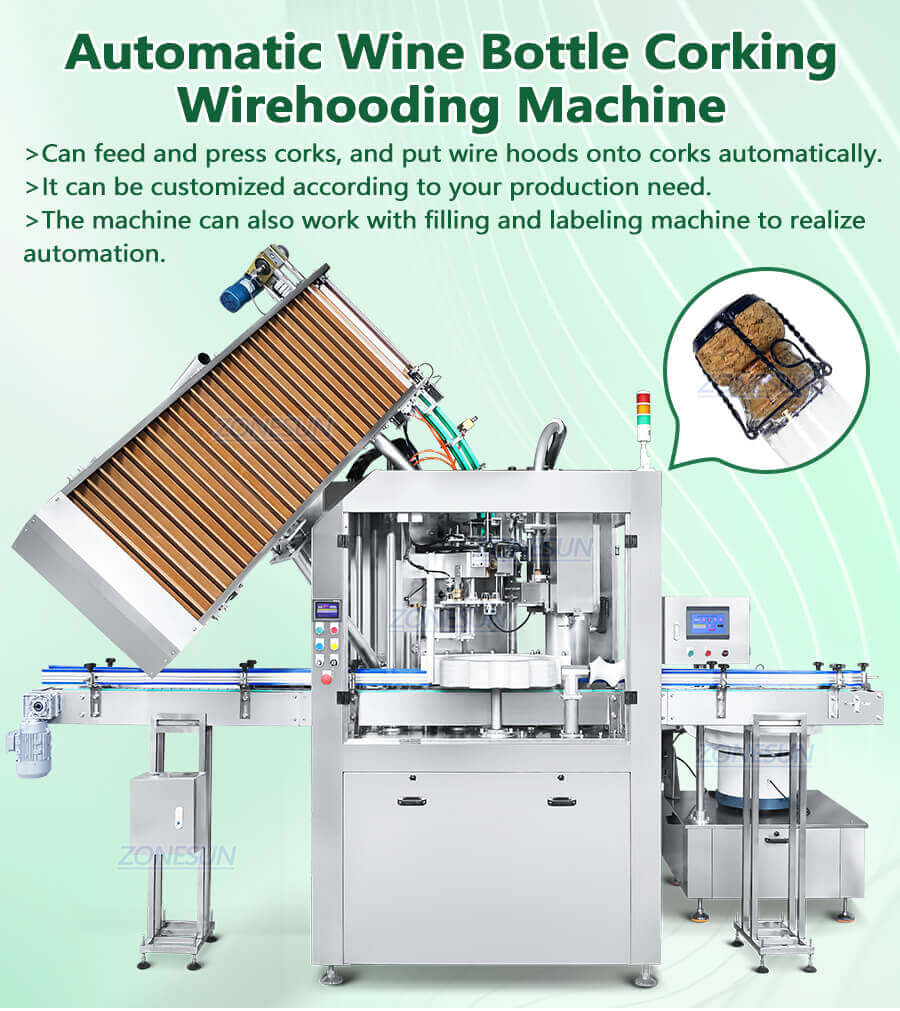

A corking and wirehooding machine is a device used in the bottling process,primarily for sparkling wines,ciders,and certain types of beer.The machine can push the cork into the bottle with considerable force,ensuring a tight seal.After the cork is placed,the machine then applies and secures the wirehood onto the bottle,twisting it to ensure it's tightly held.This machine is only suitable for the round bottles,can not be used for the square bottles.

Machine Video Click Here:

Product Detail

Product Tags

Description:
A corking and wirehooding machine is a device used in the bottling process,primarily for sparkling wines,ciders,and certain types of beer.The machine can push the cork into the bottle with considerable force,ensuring a tight seal.After the cork is placed,the machine then applies and secures the wirehood onto the bottle,twisting it to ensure it’s tightly held.This machine is only suitable for the round bottles,can not be used for the square bottles.

Machine ModelZS-YG17
Voltage380V 3 Phase
Power2kW
Working SpeedAbout 2000 BPH(depending on product size)
Suitable Bottle Diameter70-155mm(Can be customized)
Suitable Bottle Height220-390mm(Can be customized)
Suitable Cork SizeCan be customized
Air Pressure0.5MPa
Air Consumption10L/min

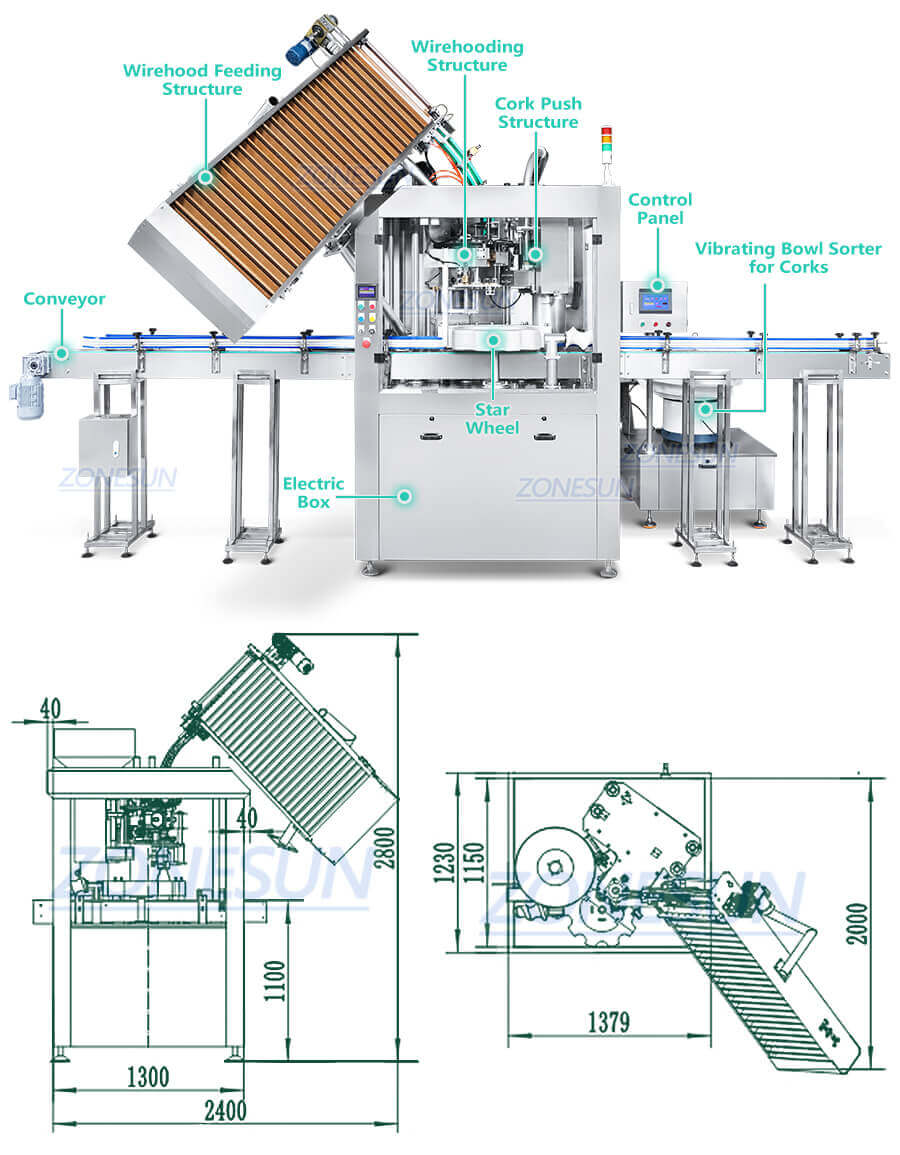

Machine SizeAbout 6150*2700*3000mm
Machine WeightAbout 2000kg
Machine Configuration
Machine ComponentBrandOrigin
Air CylinderAirTacTaiwan,China
Electromagnetic ValveAirTacTaiwan,China
InverterSchneiderFrance
PLCSchneiderFrance

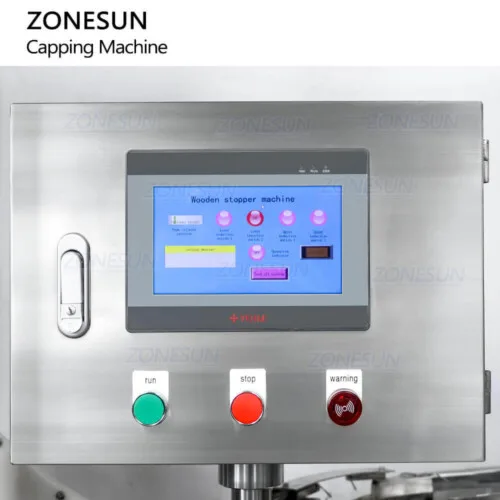

Screen PanelSchneiderFrance
Low Voltage Electrical SystemCHNTZhejiang,China
