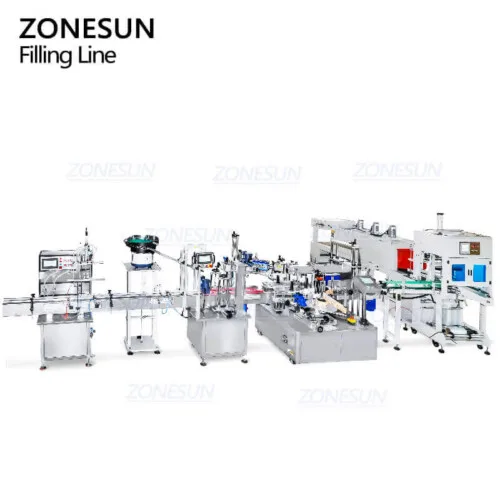

Water Bottle Filling Packaging Line

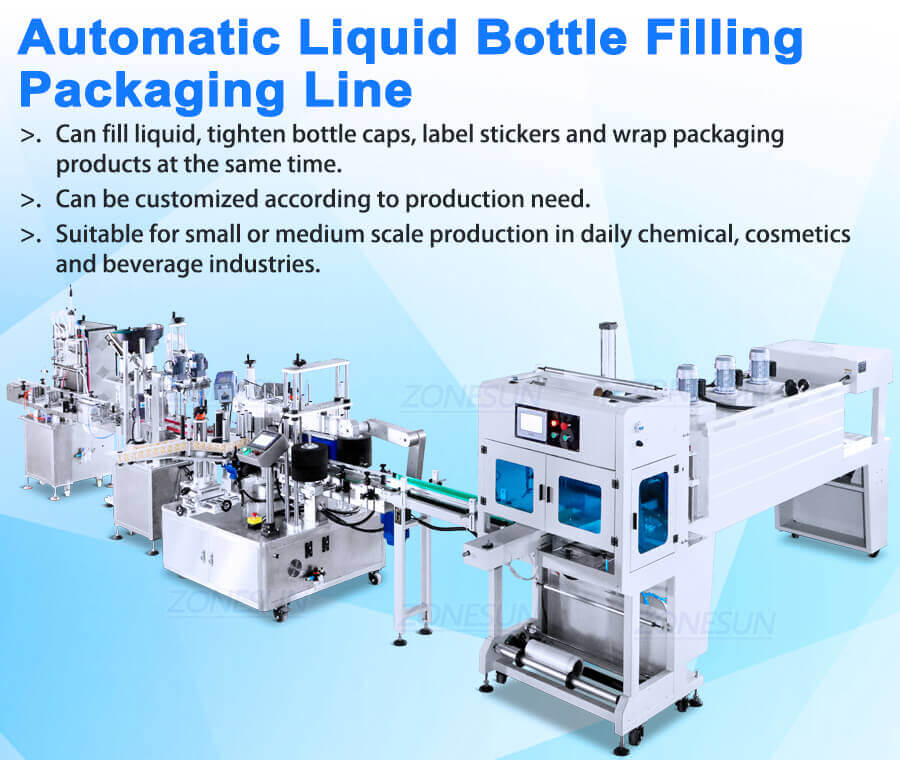

This packaging system is used to fill liquid into bottles,tighten bottle caps,label stickers on bottles and wrap them.It is suitable for packaging soft drinks,mouth wahs,liquid soap and it is good for daily chemical,beverage and cosmetics industries.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Description:
This packaging system is used to fill liquid into bottles,tighten bottle caps,label stickers on bottles and wrap them.It is suitable for packaging soft drinks,mouth wahs,liquid soap and it is good for daily chemical,beverage and cosmetics industries.

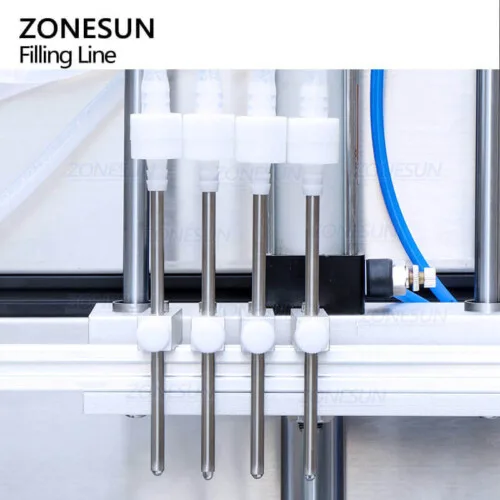

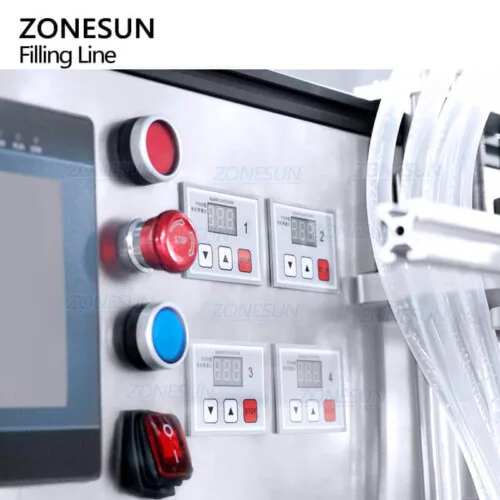

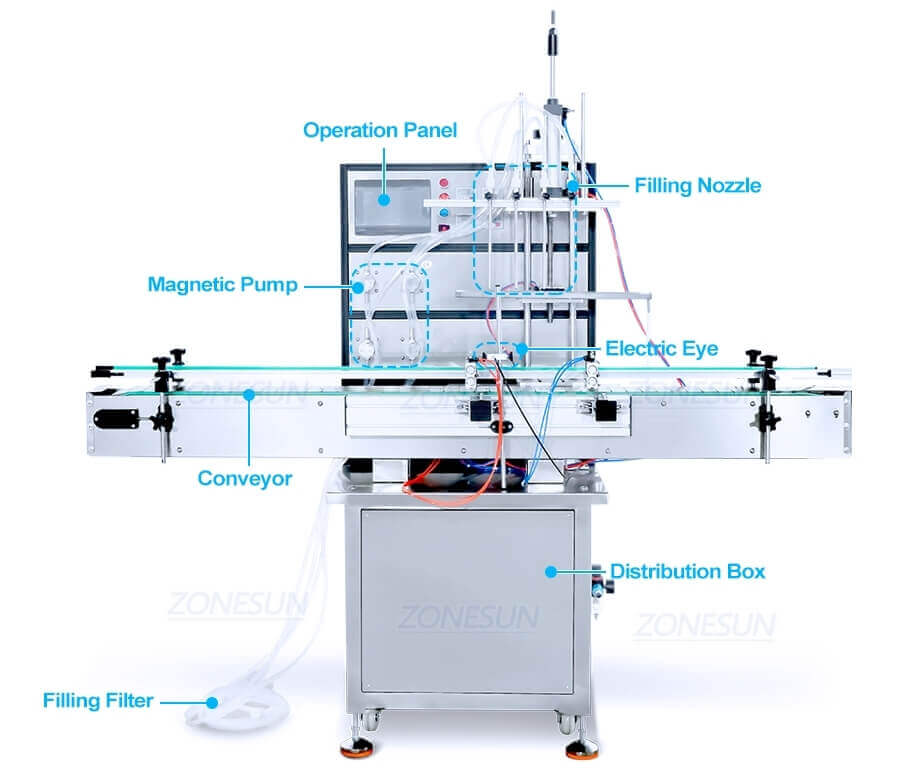

Machine model	ZS-VTMP80C
Container size	φ20-160mm H30-300mm
Max flow rate	6000ml/min	7500ml/min	12000ml/min
Material of pump	316stainless steel	316stainless steel	316stainless steel
Filling accuracy	≤100ml deviation≤±1ml > 100ml deviation≤±1% ( based on water)
Filling speed	20-50pcs/min	25-60pcs/min	40-65pcs/min
	(depending on bottles and filling liquid)
Power supply	220V-50HZ/110V-60HZ
The whole machine power	2000W
Size of air compressor connector	OD8mm
Packing weight	About 150kg
Packing size	About 20008201580mm

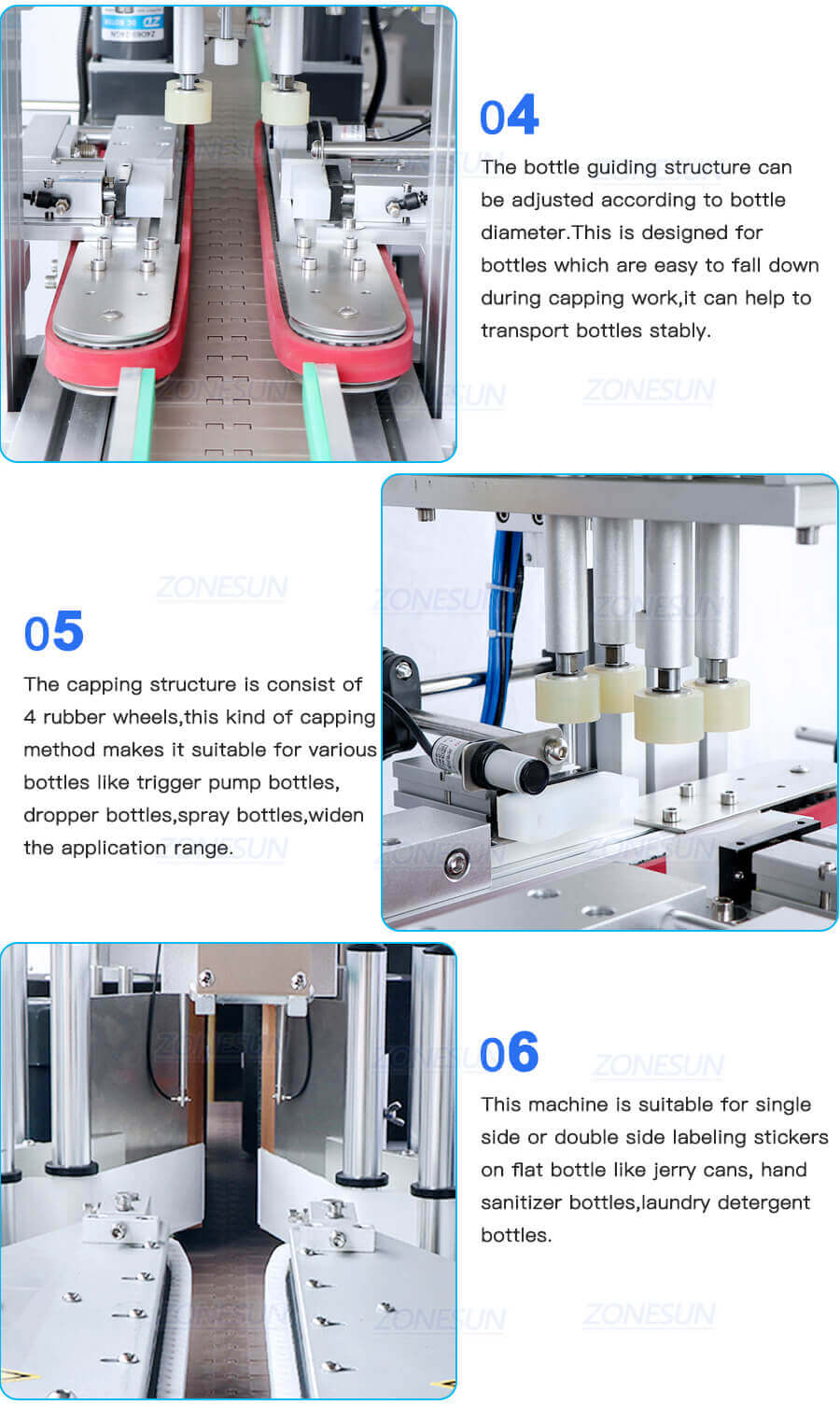

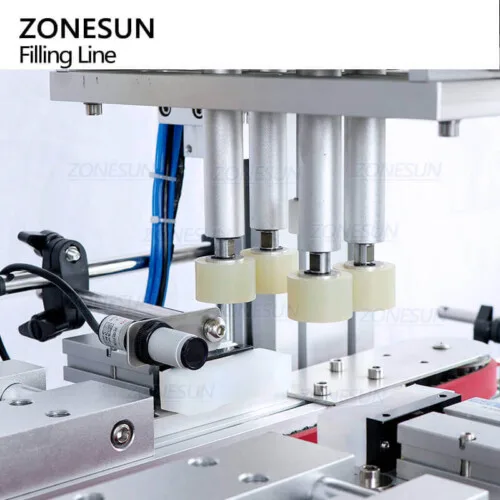

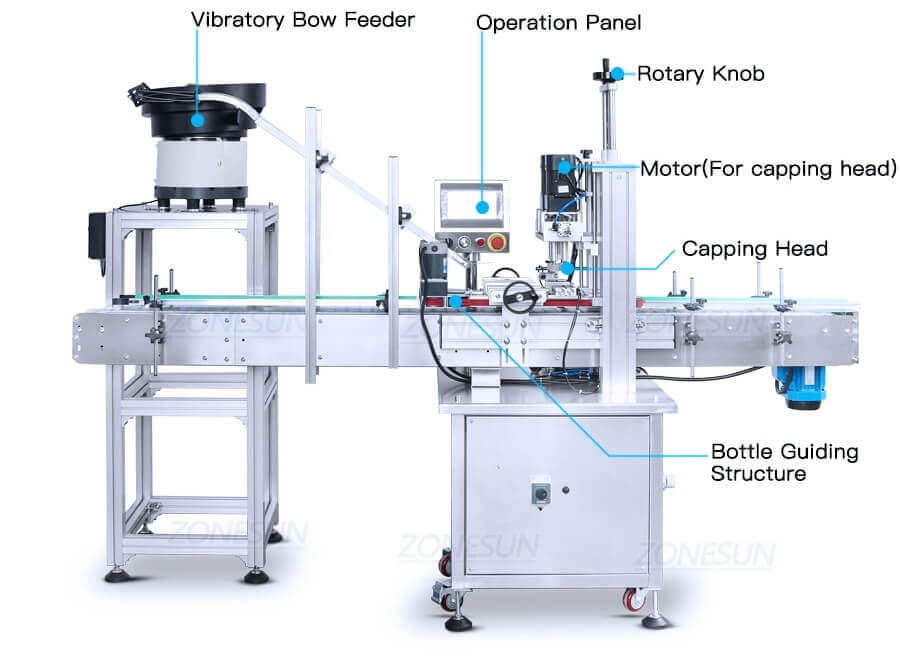

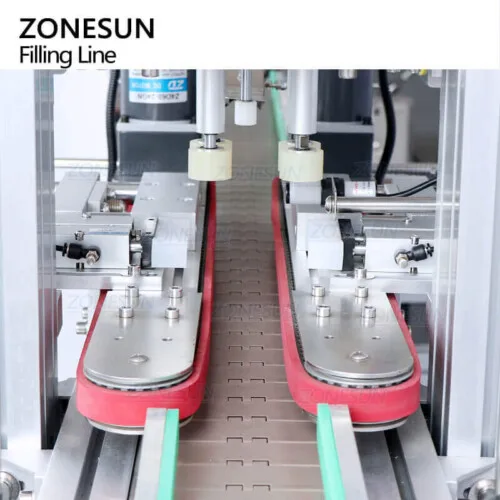

Machine model	ZS-XG16P
Bottle height	30-300mm
Cap Diameter	18-70mm
Bottle Diameter	20-160mm
Working speed	20-60 bottles / minute (depending on bottle and cap size and shape)
Working voltage	AC220V/110V 50- 60HZ
Working pressure	0.4-0.6MPa

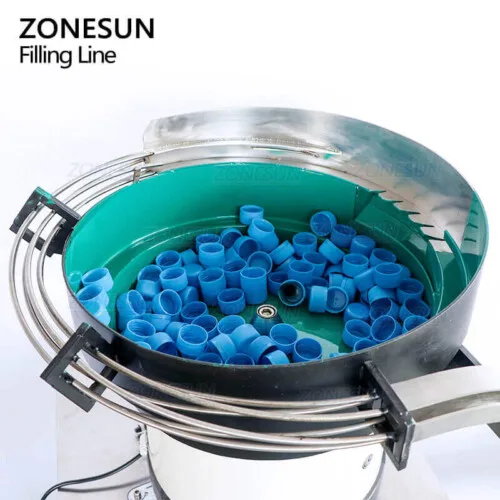

Machine size	About 24206801700mm (machine) About 5005001640mm( vibratory sorter)
Machine weight	About 138kg(machine)+75kg( vibratory sorter)
Package Size	About 19707701790mm
Gross weight	About 213kg

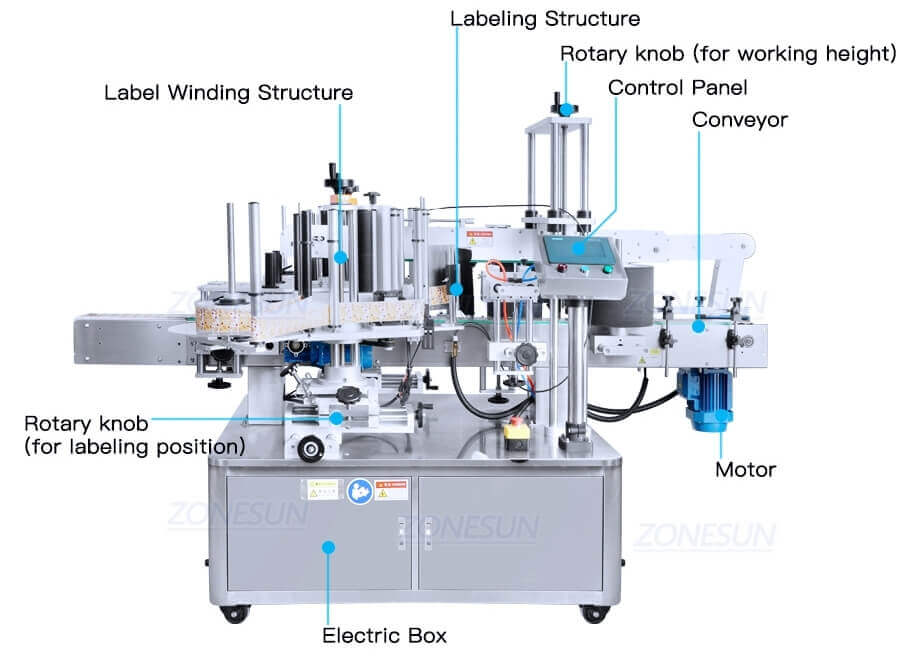

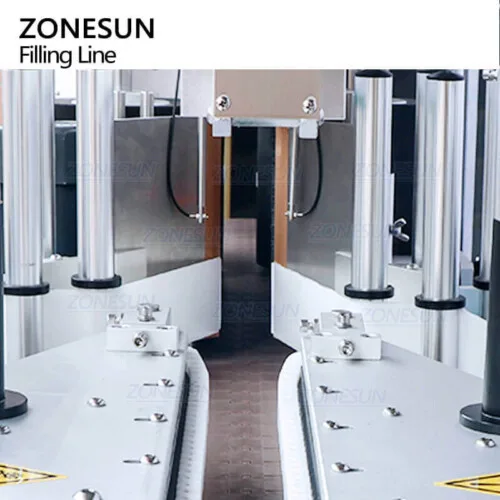

Machine Model	ZS-TB300A	ZS-TB300B
Labeling capacity(pcs/min)	60-350PCS /min(depends on bottle size)
Labeling material thickness	20-120mm
Labeling material height	30-350mm
Label size(mm)	(L)25- 300mm (H)15-200mm

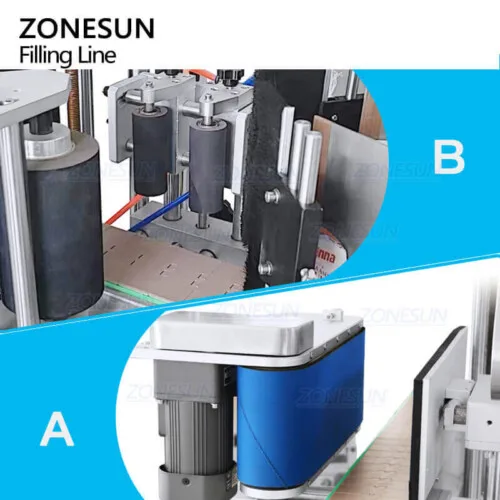

Round bottle	Single Side	Single & Double Side
Flat bottle	Double Side
Roll inside(mm)	Φ76mm
Roll outside diameter(mm)	Φ350mm
Machine size (mm)	About 21209401500mm
Power supply	AC220V 50Hz/60Hz 1500W
Packing size	About 285013001900mm
Net weight/Gross weight	About 450kg/650kg

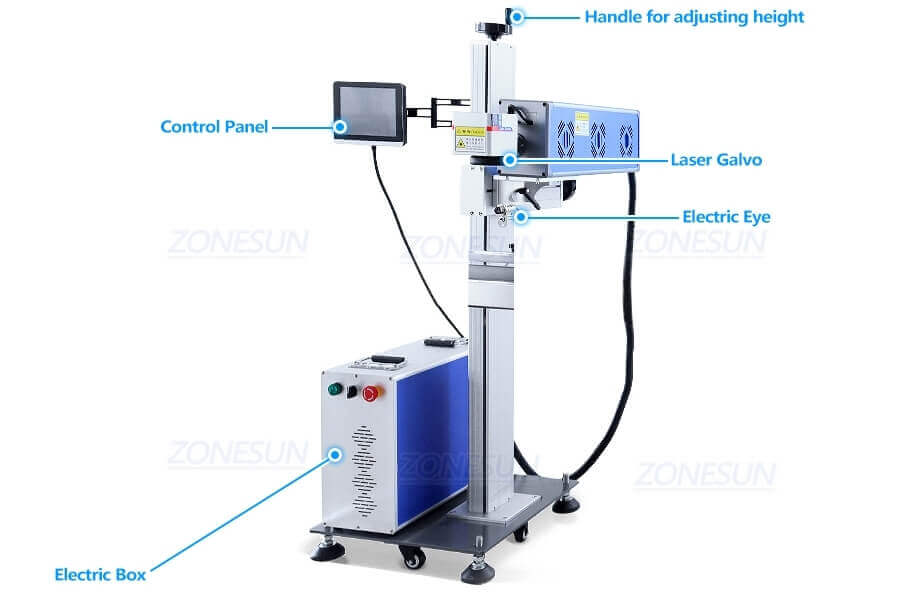

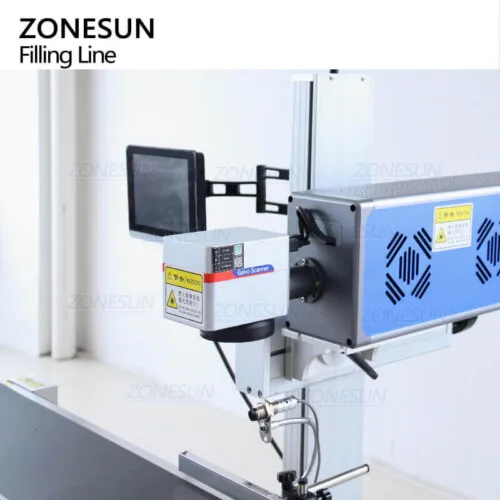

Machine Model	ZS-LMC1
Voltage	220V/110V 50-60Hz
Power	30W
Working Speed	PVC tubes: 40 m/min PET bottles: 20000 bottles/h Coated cartons: 35 m/min
Marking Area	7070/9090/110110/140140mm
Marking Depth	3mm(depending on materials)
Repeat Frequency	20-200Hz
Cooling Method	Air Cooling

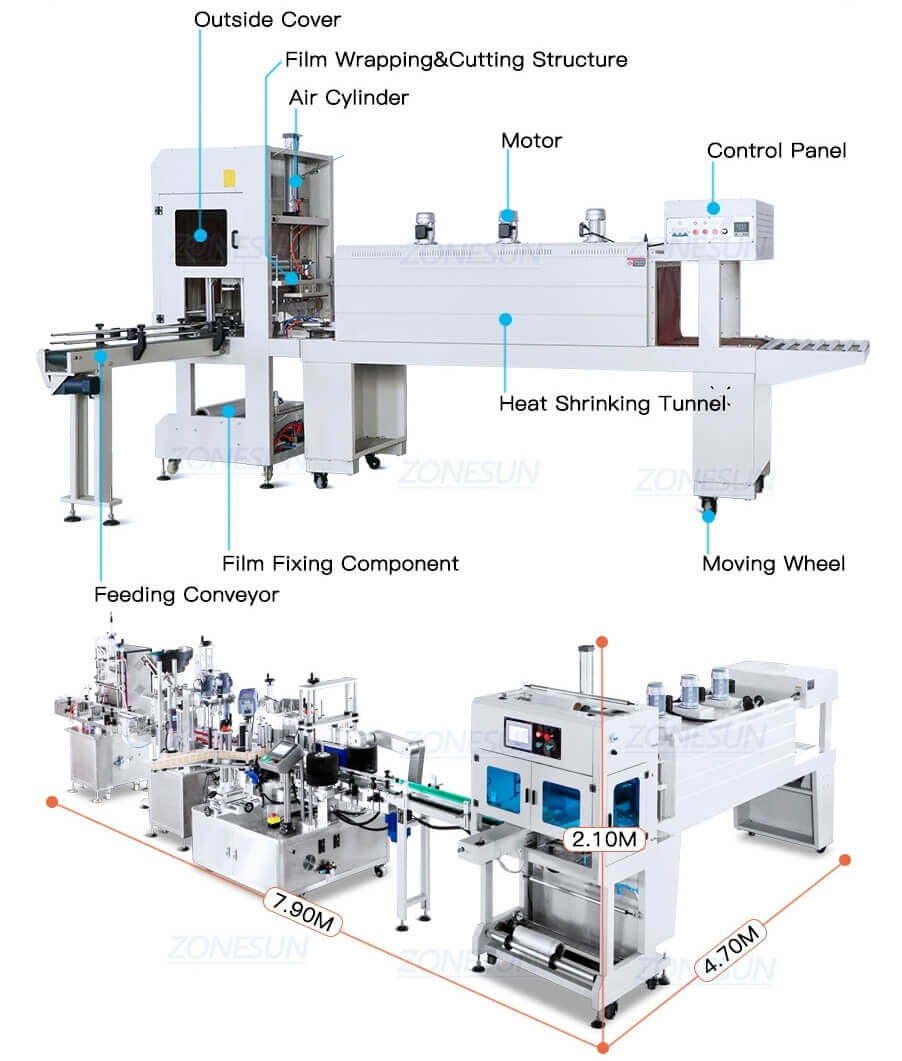

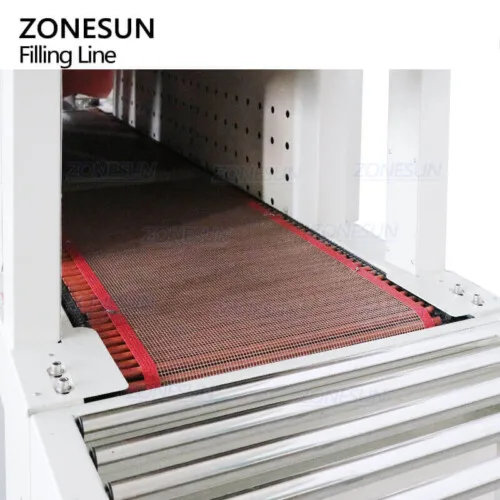

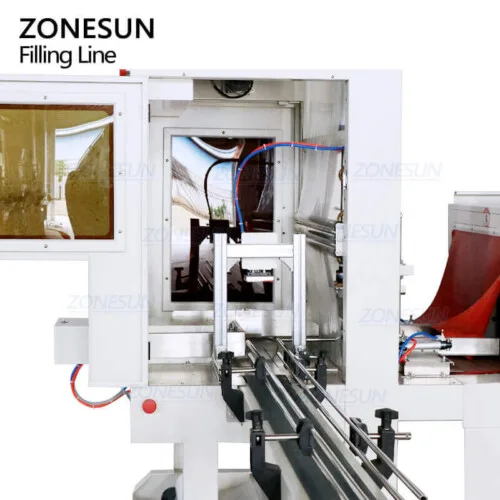

Heat Shrinking Machine
Machine Model	ZS-BSPN6040
Voltage	380V 50-60HZ
Power	21KW
Tunnel Size	About 1800600400mm
Conveying Speed	0-15m/min
Transport Load	25kg
Suitable Film	PVC/POF/PE
Machine Size	About 28009101400mm
Package Size	About 28809301500mm
Package Weight	About 350kg

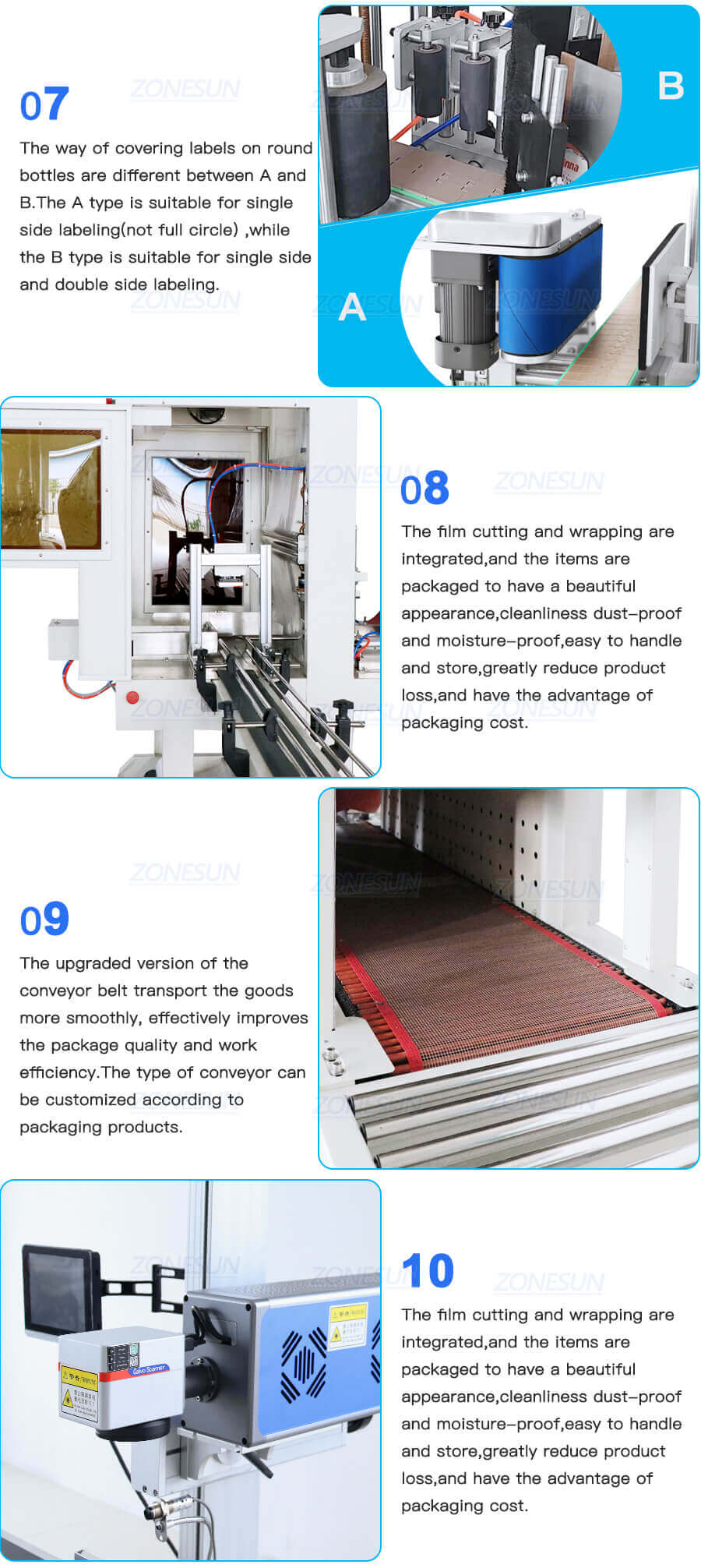

Film Wrapping Machine
Model	ZS-QZD7040
voltage	220-240V 50-60Hz
Power	2kw
Packing speed	0-6 bags/min
Sealing time	0.5-1.5s
Maximum package size	420(120n)*330mm
Conveying load	20kg
Conveyor length	1.6m
Film width/thickness	Max 560mm/0.03-0.25mm
Suitable for shrink film	POF/PE/PVC/PP
Machine size	About 221014502080mm
Machine weight	About 380kg
