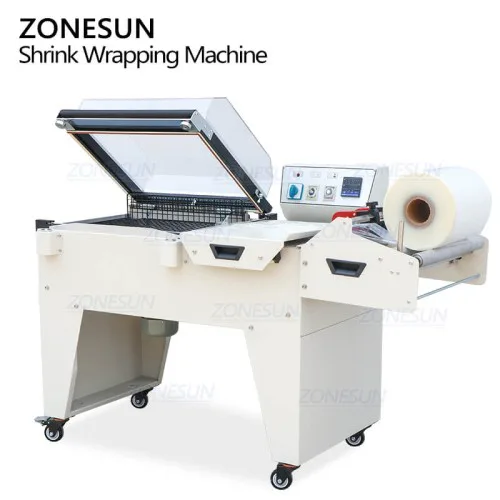

Semi Automatic Shrink Wrapping Machine

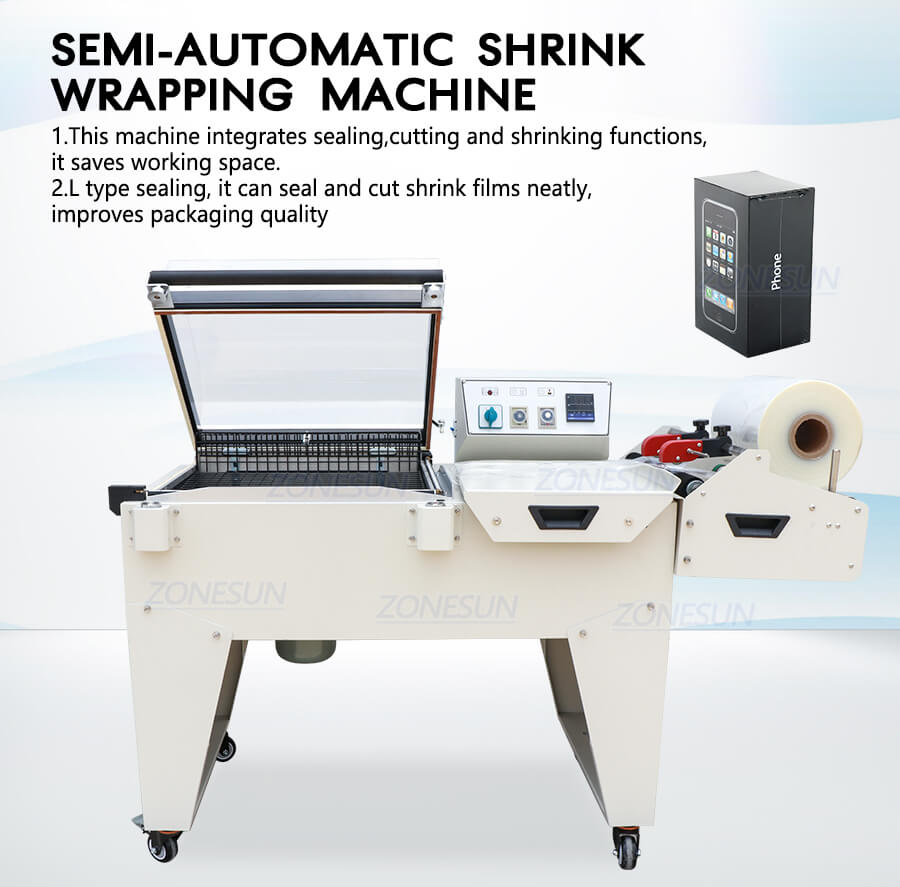

The machine integrates sealing, cutting and shrinking functions, thereby shortening the entire packaging time and space. This machine can perform continuous sealing, cutting and shrinking work for a long time, improving packaging efficiency. It is suitable for small-scale packaging production such as mobile phone boxes, earphone boxes, and perfume boxes.

Machine Video Click Here:

Product Detail

Product Tags

Product Description:
The machine integrates sealing, cutting and shrinking functions, thereby shortening the entire packaging time and space. This machine can perform continuous sealing, cutting and shrinking work for a long time, improving packaging efficiency. It is suitable for small-scale packaging production such as mobile phone boxes, earphone boxes, and perfume boxes.

Product Parameters:

Machine ModelZS-SX5540
Machine VoltageAC220-240V/50-60Hz 4.57KW
Sealing and Cutting Time0-3sec
Shrinking Time0-30sec
Packaging Speed0-800 pieces/h
Suitable Package FilmPOF PVC
Film Thickness0.015-0.08mm
Maximum Packaging SizeAbout 550*400*230mm
Machine SizeAbout 1570*720*1060(1320)mm(L*W*H)
Machine Net WeightAbout 128kg

Product Details:

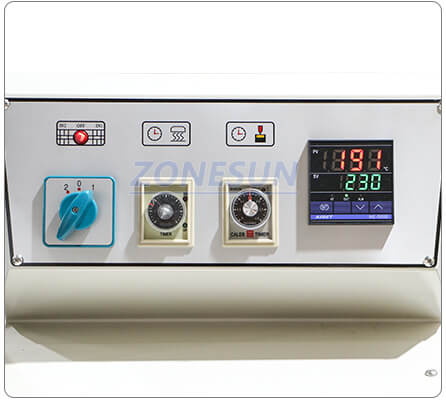

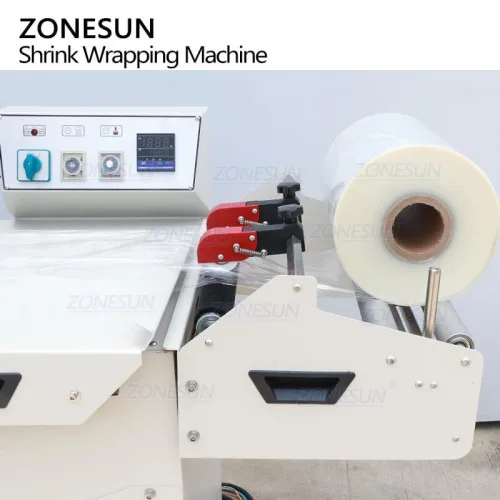

This shrink wrapping systems come with a control panel that allows operators to adjust parameters such as temperature and sealing time.

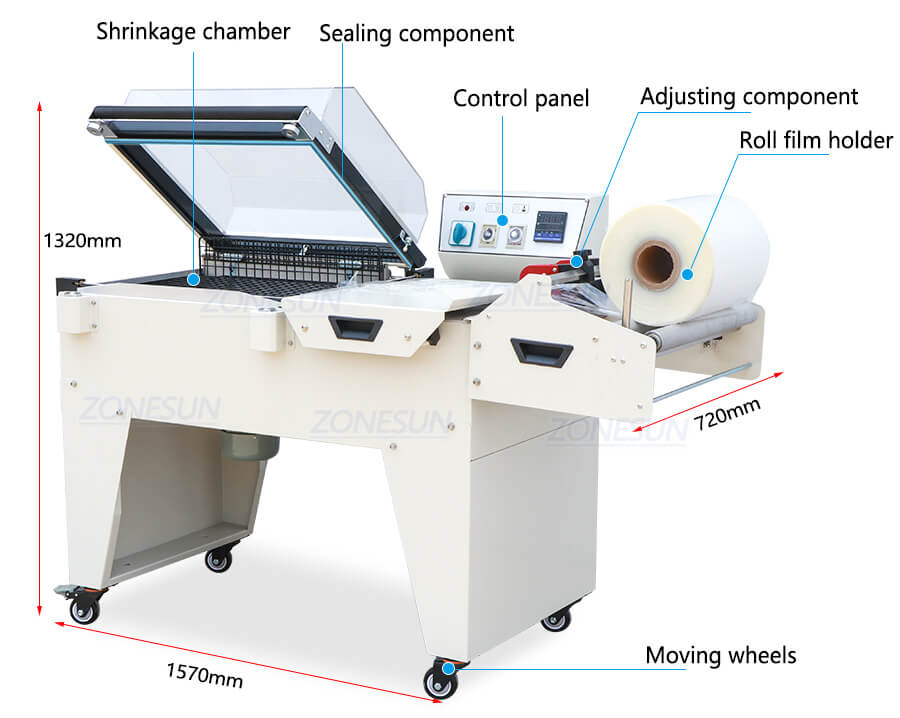

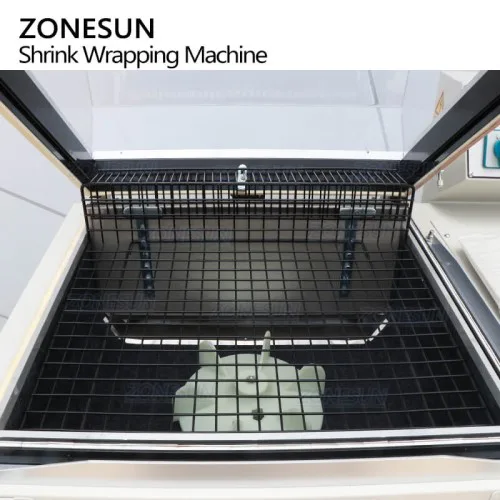

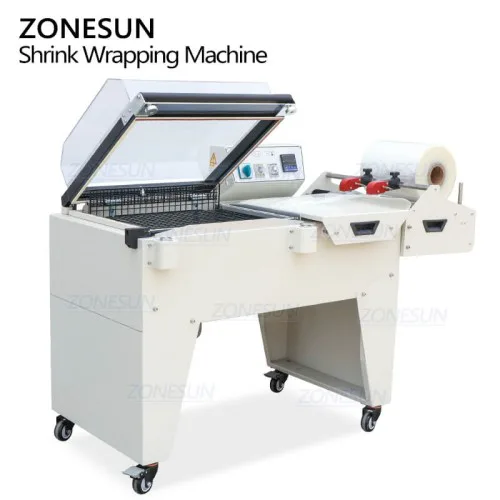

This machine is consists of a chamber where the product to be wrapped is placed. This chamber is equipped with heating elements. This machine uses heat to shrink the film tightly around the product. This improves packaging quality.

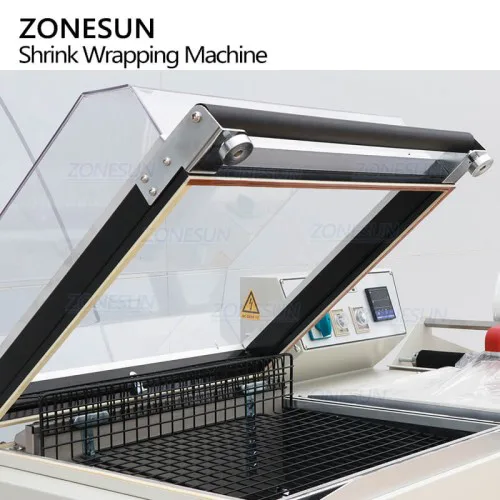

This machine is equipped with L type sealing and cutting component, it can handle a variety of products, including individual items, boxes, trays, and more. It is suitable for packaging both regular and irregular-shaped products, offering versatility in packaging applications.

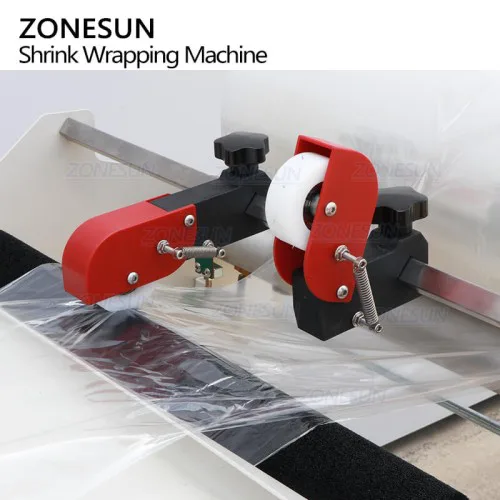

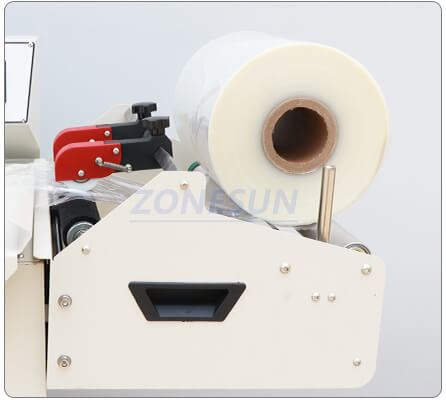

The roll film holders is designed to be user-friendly, with features such as adjustable tension control and film guides to ensure smooth and consistent film feeding. There are two adjusting components to make the packaging size more accurate.
