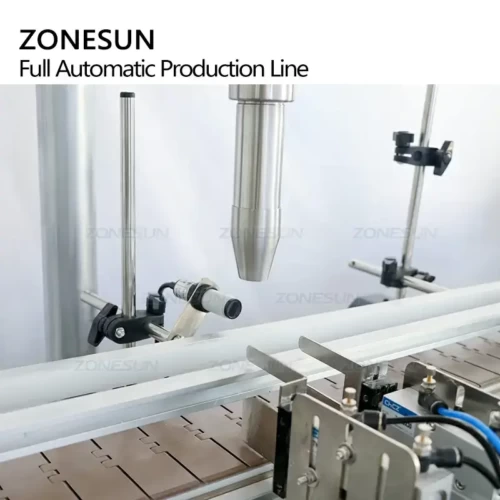

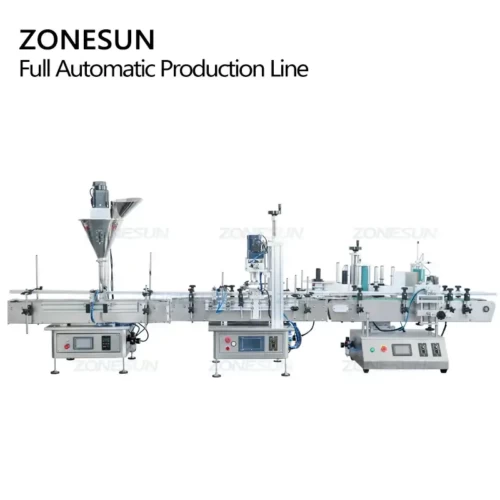

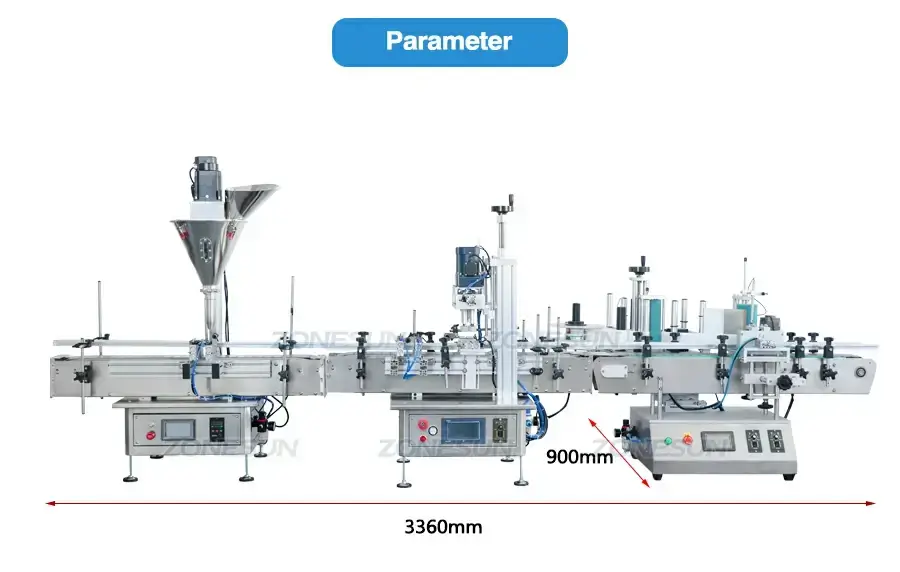

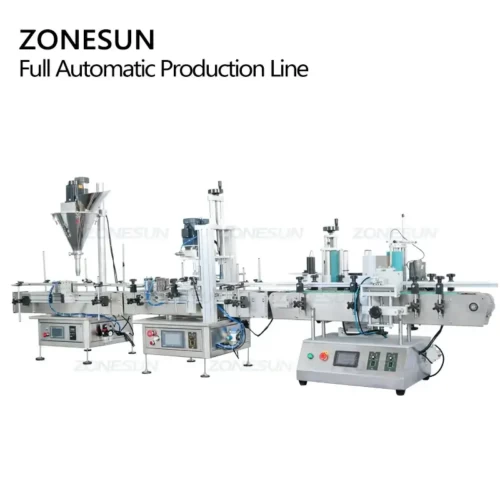

ZS-FAL180F1 Production Line

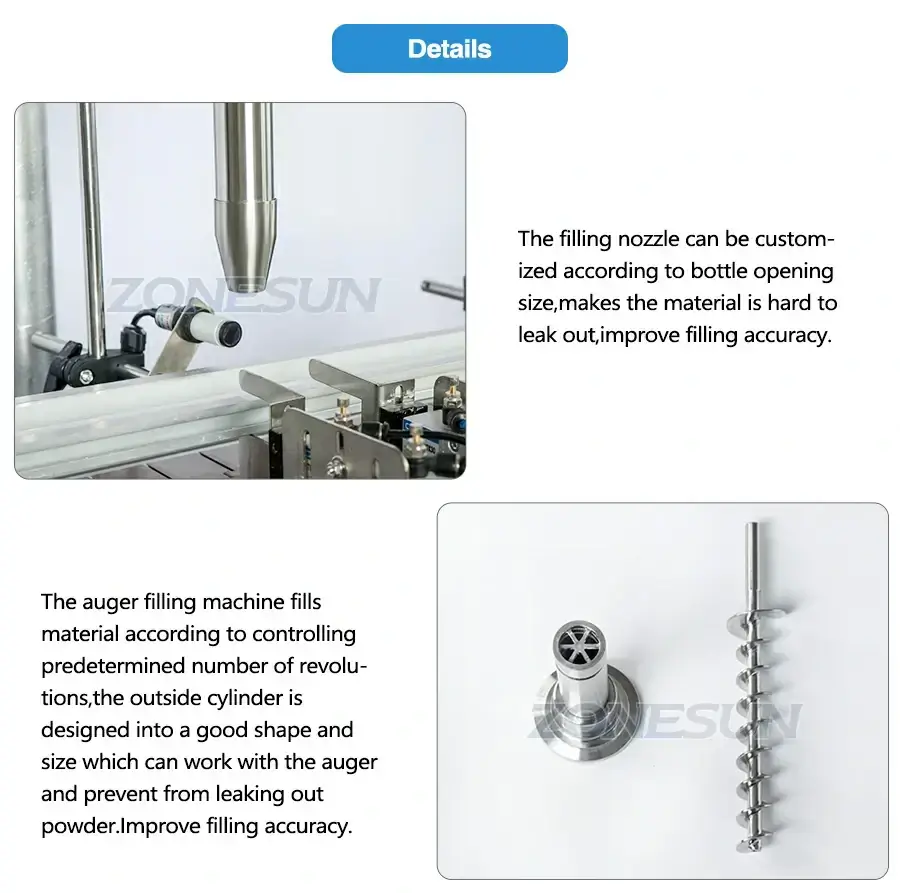

Machine model | ZS-FM3A |
Voltage | 110/220V |
Machine power | 0.5KW |
Hopper size | About 6L |
Hopper diameter | About 320mm |
Filling range | 50g-500g |
Filling nozzle size | 20mm (Can be Customized) |
Filling accuracy | ±1% |
Filling speed | About 20-30 bottles/min |
Working height | 420-490mm(Adjustable) |
Conveyor length | About 1100mm |
Package size | About 720*610*1030mm |
Conveyor width | About 140mm |

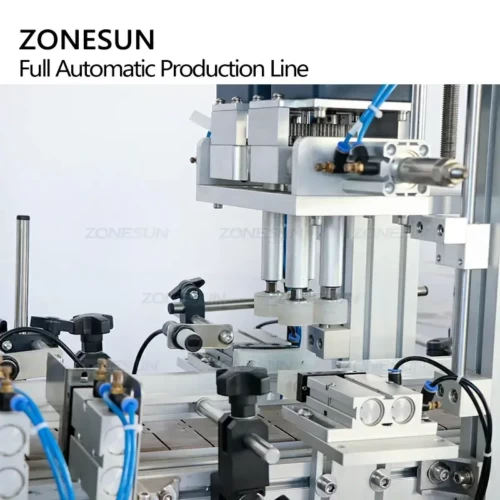

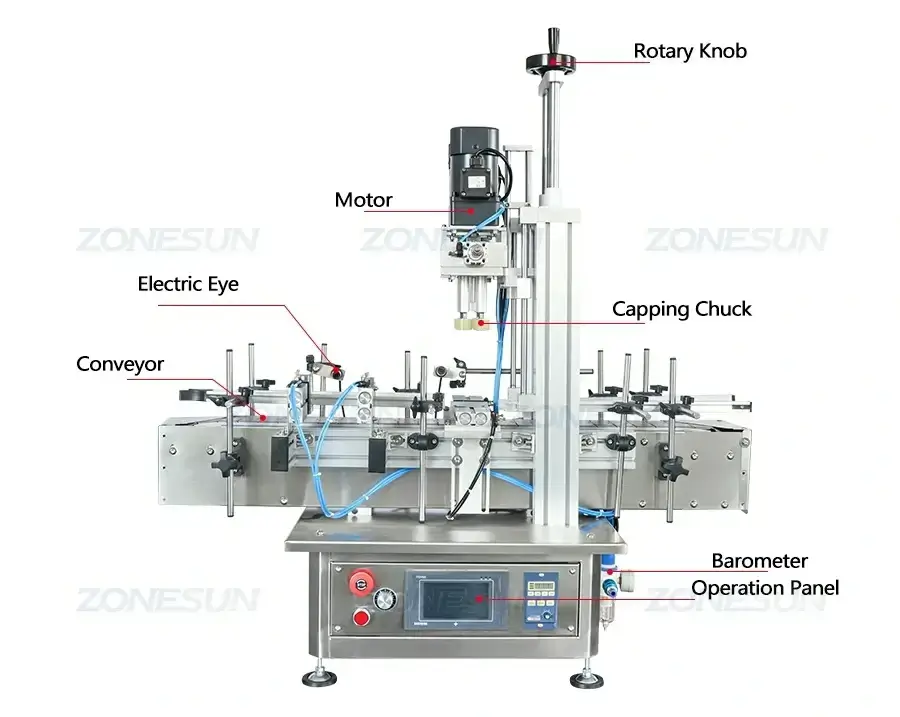

Bottle Height | 60- 270mm |
Bottle Caps Diameter | 18-70mm |
Working Speed | 20-40 bottles/minute (depending on bottle and caps) |
Working Voltage | AC220V/110V 50-60HZ |
Working Pressure | 0.4-0.6 MPa |
Conveyor Length | 1117mm |
Net weight/Gross weight | About 65.5kg/97.5kg |
Package Size | About 1160*610*1140mm |
Machine Size | About 1120* 580* 1110mm |
Size of air compressor connector | OD 8mm |

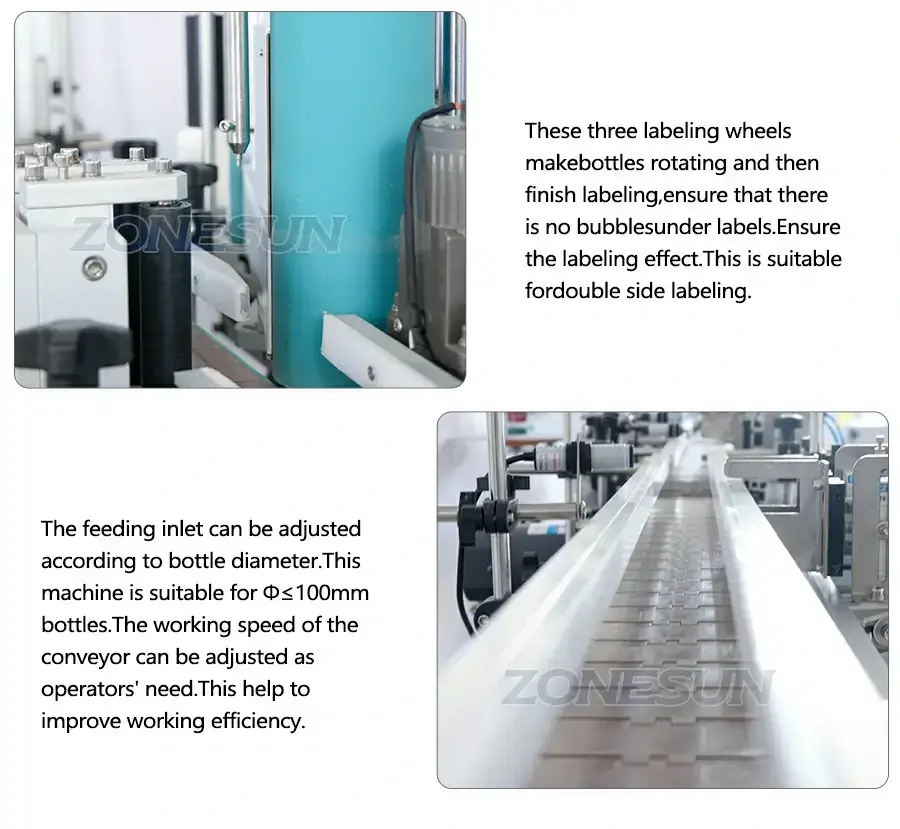

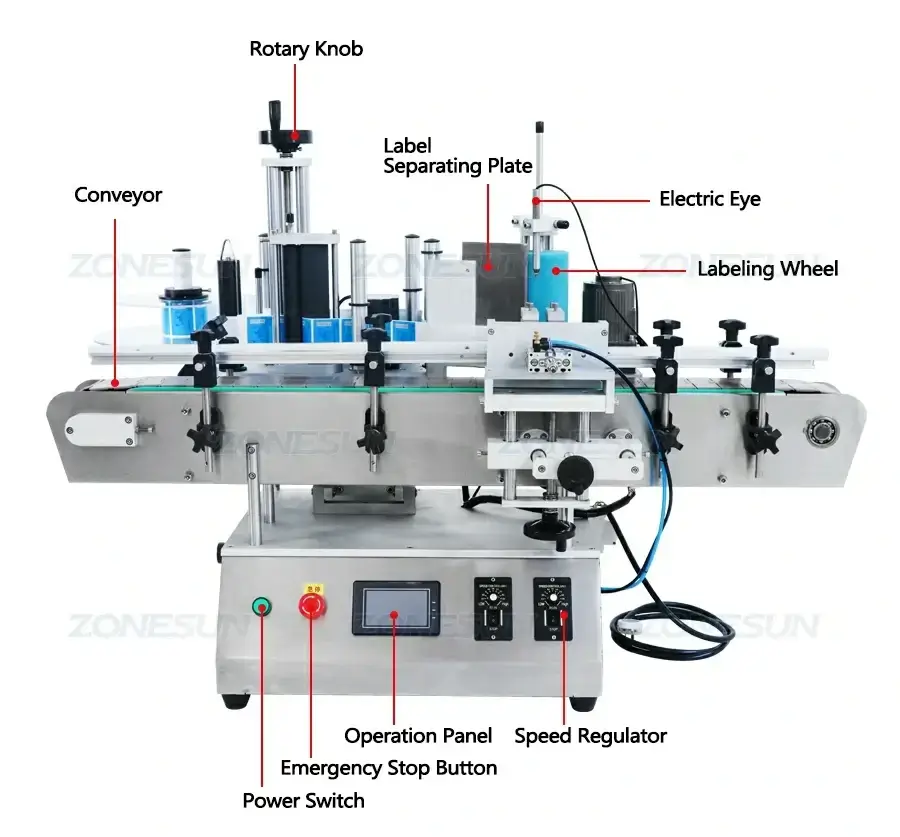

Machine Model | ZS-TB500A |
Voltage | 110V-60HZ/220V-50HZ |
Working Speed | About 20-60 bottles/min |
Suitable Labeling Size | 15-140mm(W)*25-300mm(L) |
Roll Inside Diameter(mm) | φ75mm |
Roll Outside Diameter(mm) | φ250mm |
Suitable Bottle Diameter | About 30-100mm |
Conveyor Size | About 1310*100mm |
Package Size | About 1460*700*960mm |
Package Weight | About 125.5kg |
