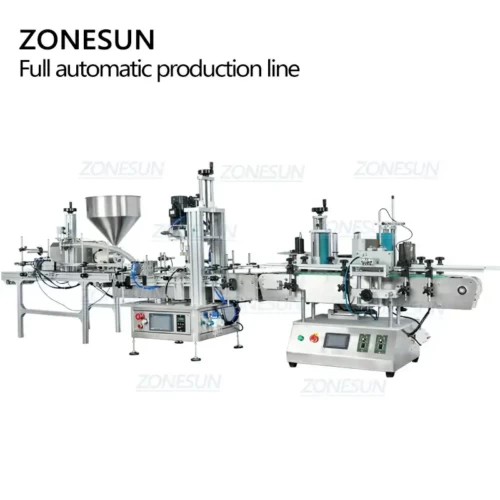

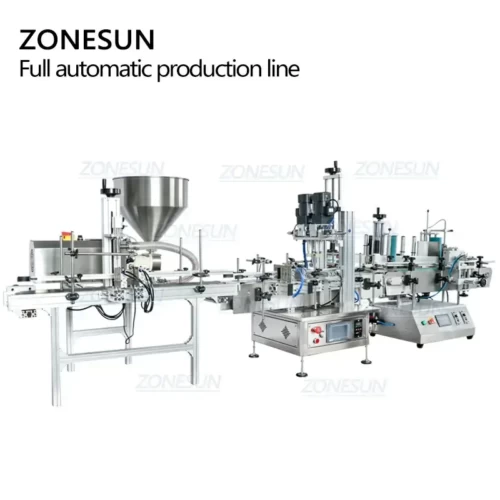

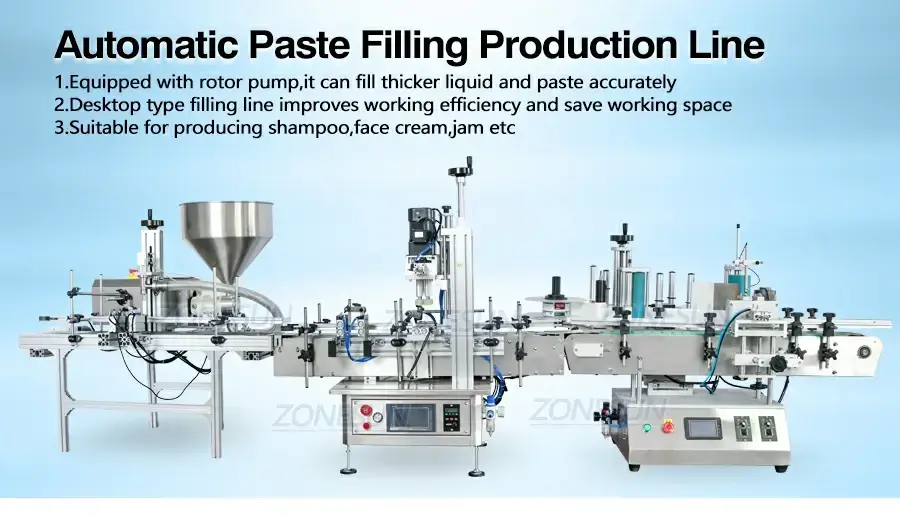

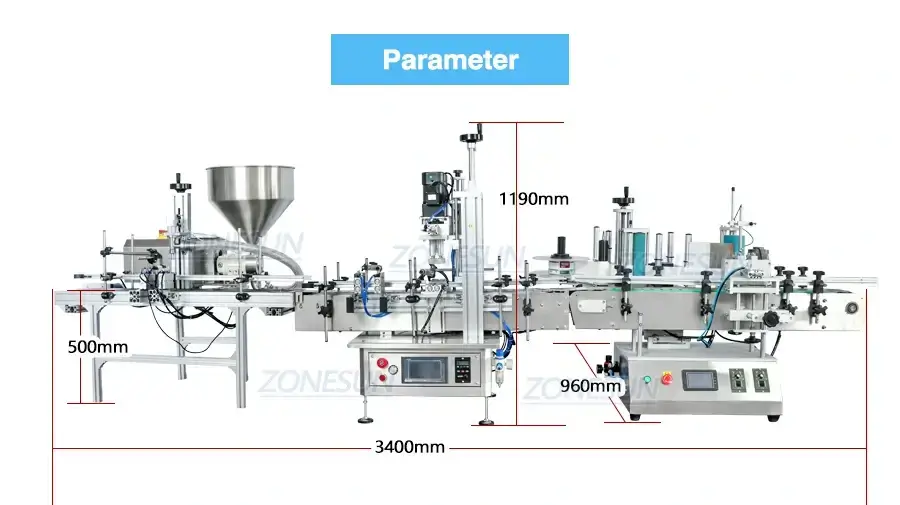

ZS-FAL180D2 Production Line
Mode Of Transport：Press、Transportation、Ocean shipping、Land transportation
Payment Options：Redit card、Paypal、Western Union、TT、Alipay、WeChat

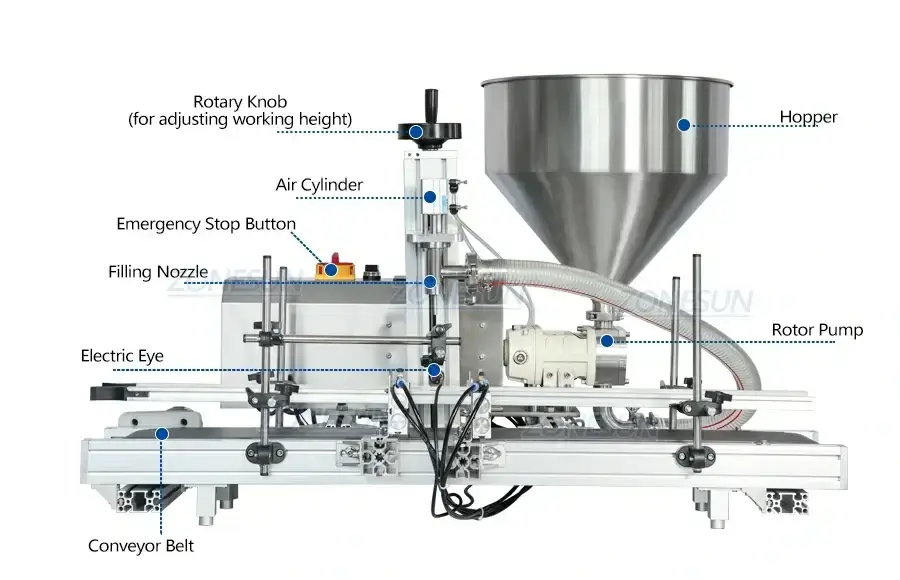

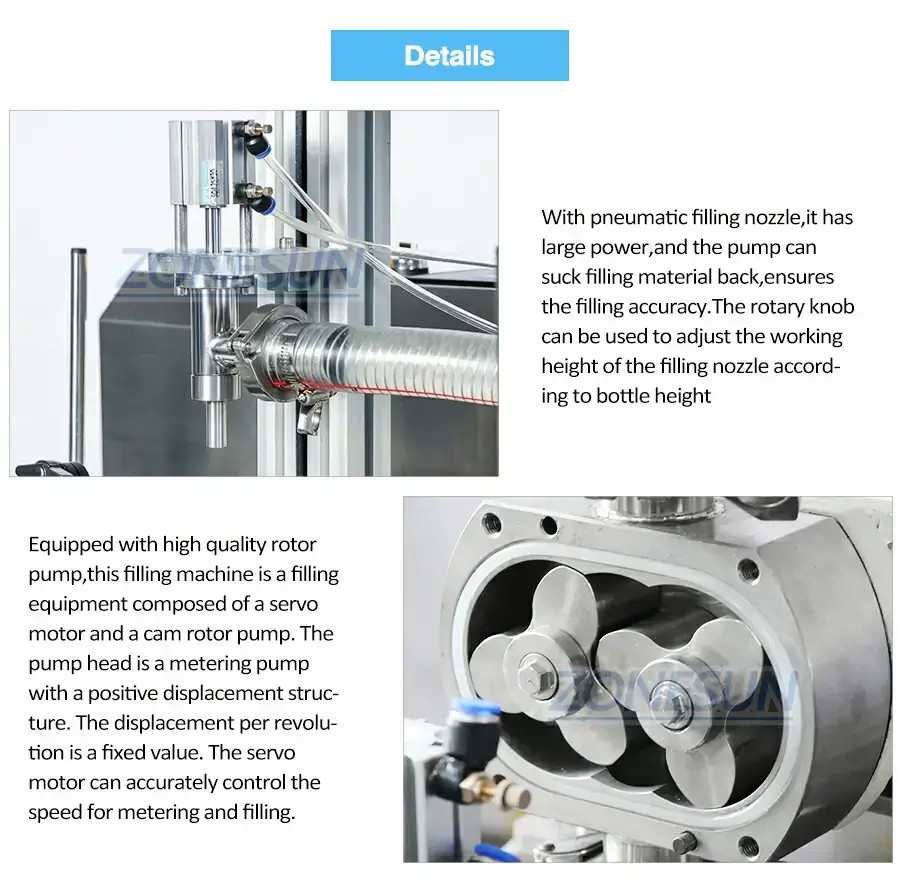

| Machine model | ZS-DTGT900 |
| Machine power | 840W |
| Recommend filling range | 50-5000ml |
| Filling accuracy | ≤±1% |
| Bottle opening size | φ＞20mm |
| Hopper size | 30L |
| Working speed | 10-60bottles/min(based on 250ml jam) |
| Machine size | About 1090*700*680mm |
| Machine weight | About 54kg |

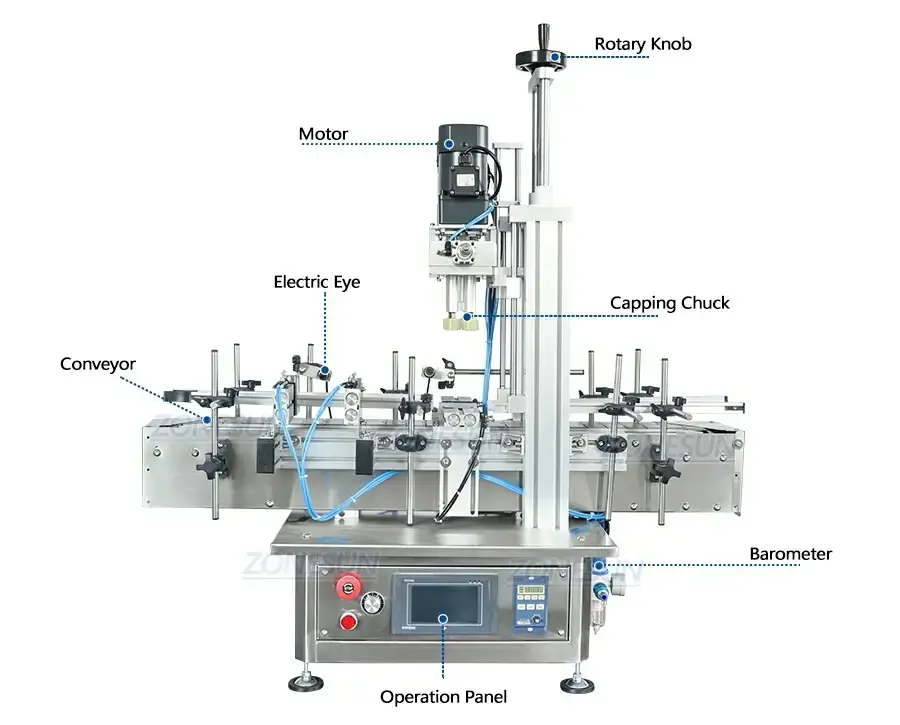

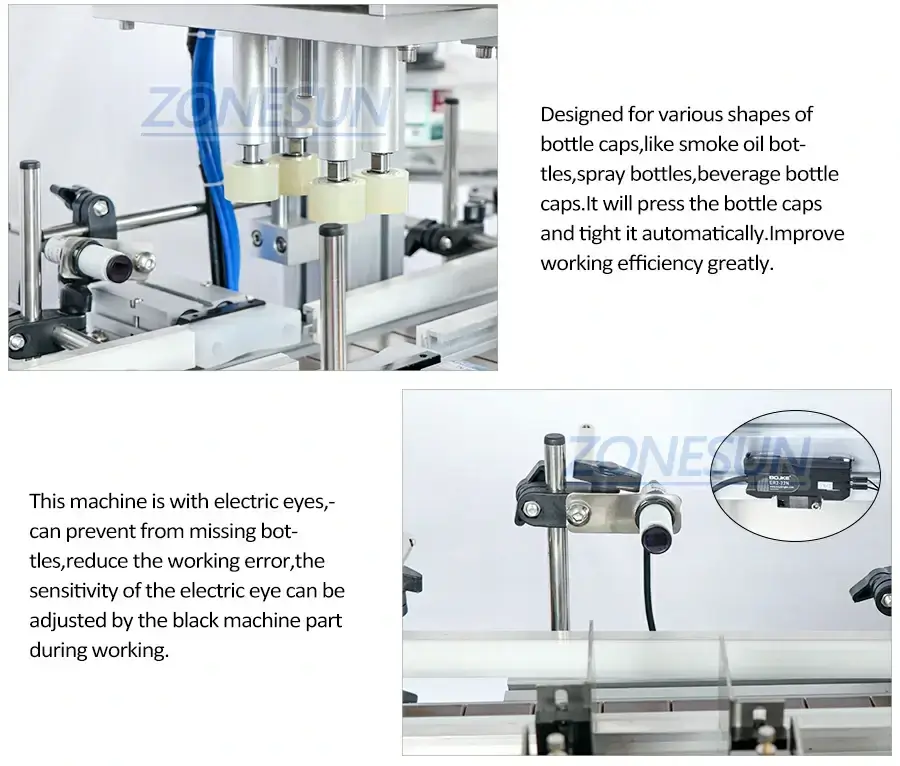

| Bottle height | 60-270mm |
| Bottle Caps Diameter | 18-70mm |
| Working speed | 20-40 bottles/minute(depending on bottle and caps) |
| Working voltage | AC220V/110V 50-60HZ |
| Working pressure | 0.4-0.6 MPa |
| Conveyor length | 1117mm |
| Size of air compressor connector | OD 8mm |
| Machine size | About 1200*610*950mm |
| Package size | About 1150*640*1120mm |
| Net weight/Gross weight | About 69kg/100kg |

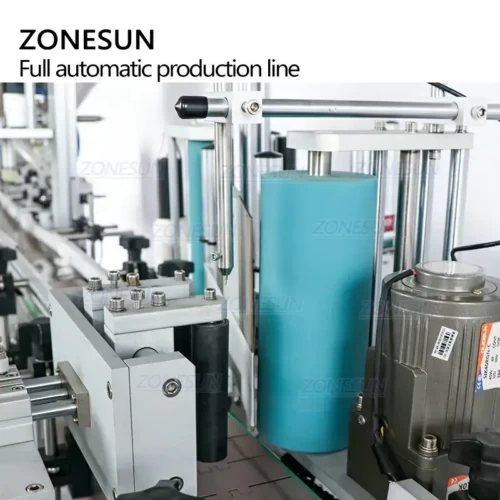

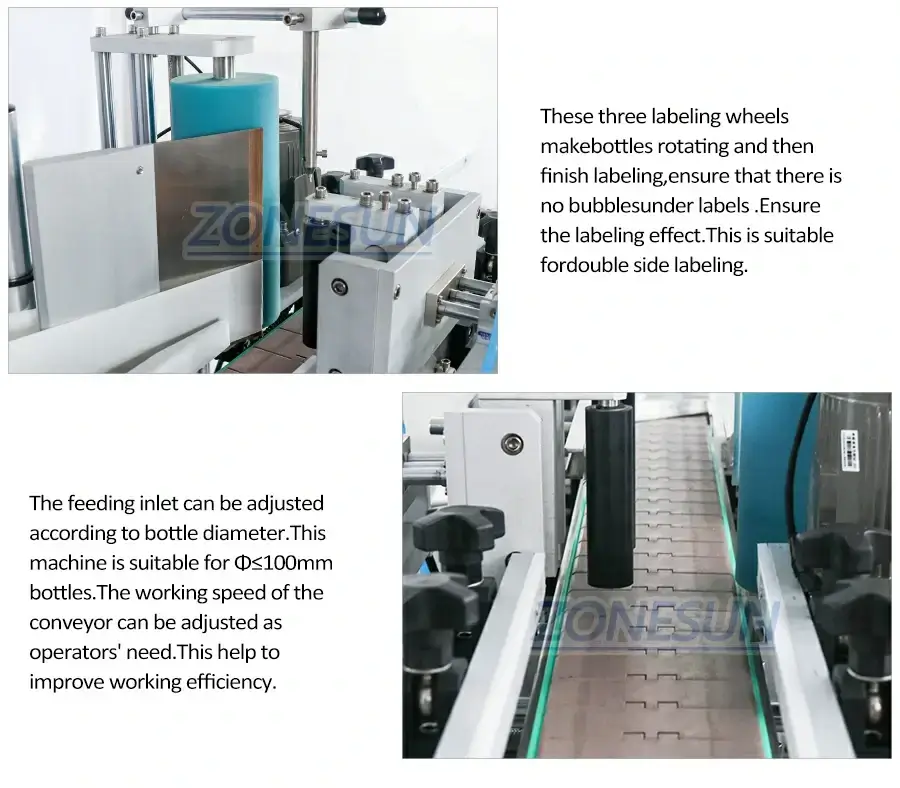

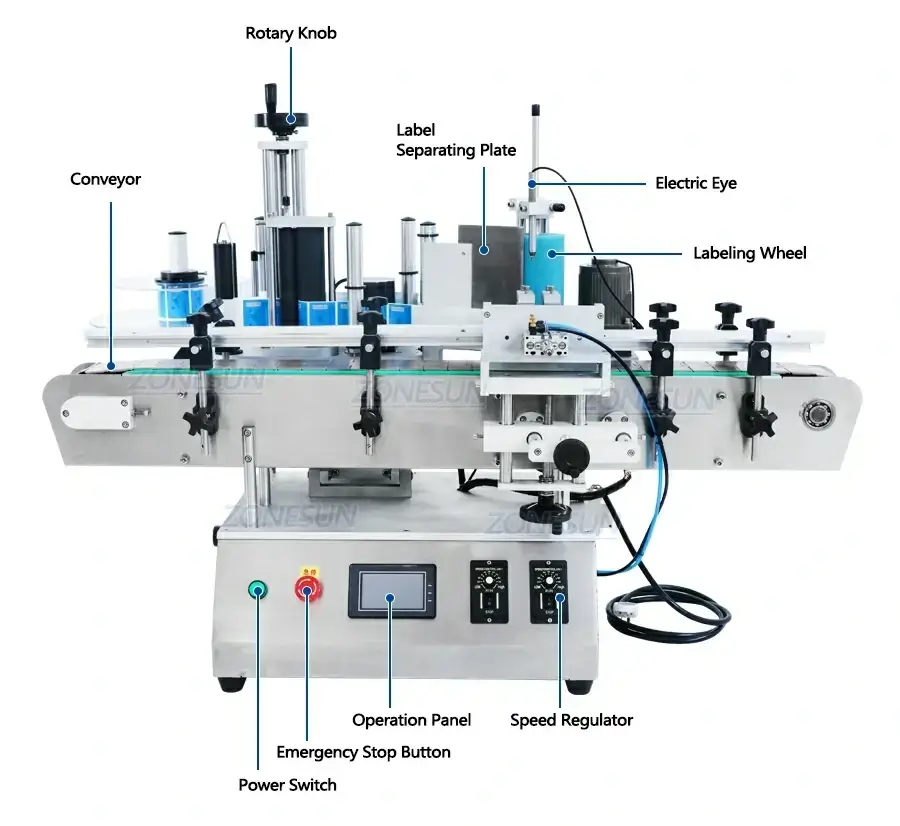

| Machine Model | ZS-TB500A |
| Voltage | 110V-60HZ/220V-50HZ |
| Working Speed | About 20-60 bottles/min |
| Suitable Labeling Size | 15-140mm(W)*25-300mm(L) |
| Roll Inside Diameter(mm) | φ75mm |
| Roll Outside Diameter(mm) | φ250mm |
| Suitable Bottle Diameter | About 30-100mm |
| Conveyor Size | About 1310*100mm |
| Machine size | About 1240*680*890mm |
| Package Size | About 1390*690*910mm |
| Package Weight | About 125.5kg |
