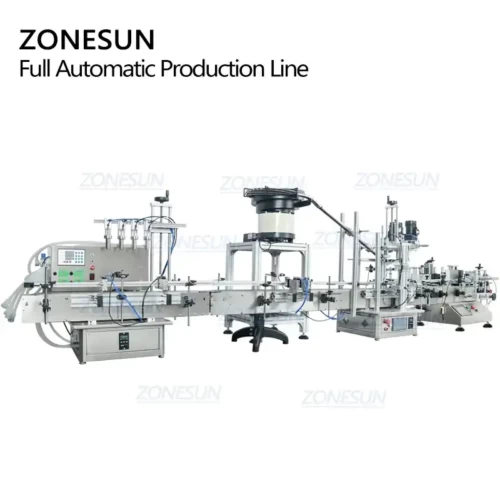

Desktop Liquid Production Line

This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Description:

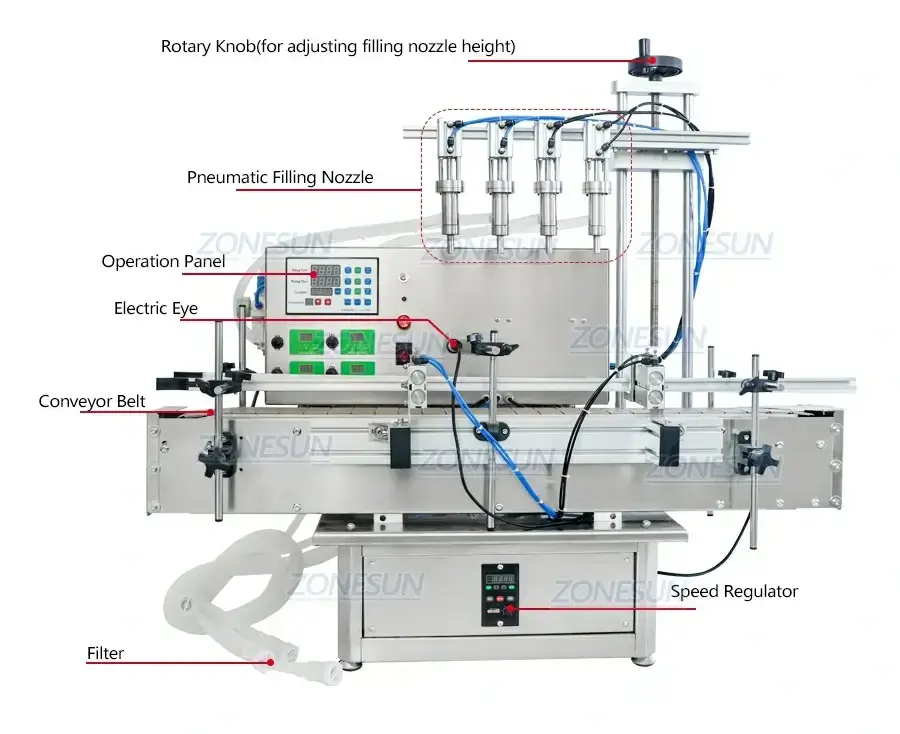

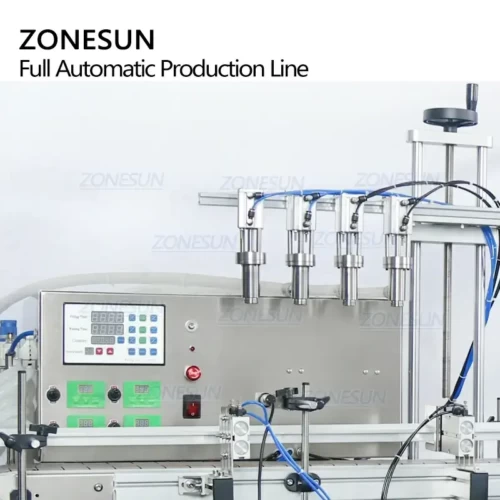

Machine model	ZS-DTDP4E
Voltage	110/220V 50-60HZ
Power	60W(Each Pump)
Recommended filling volume	10-1000ml(Gel is better≤100ml)
Maximum flow velocity	4000ml/min(Each nozzle and base on water)

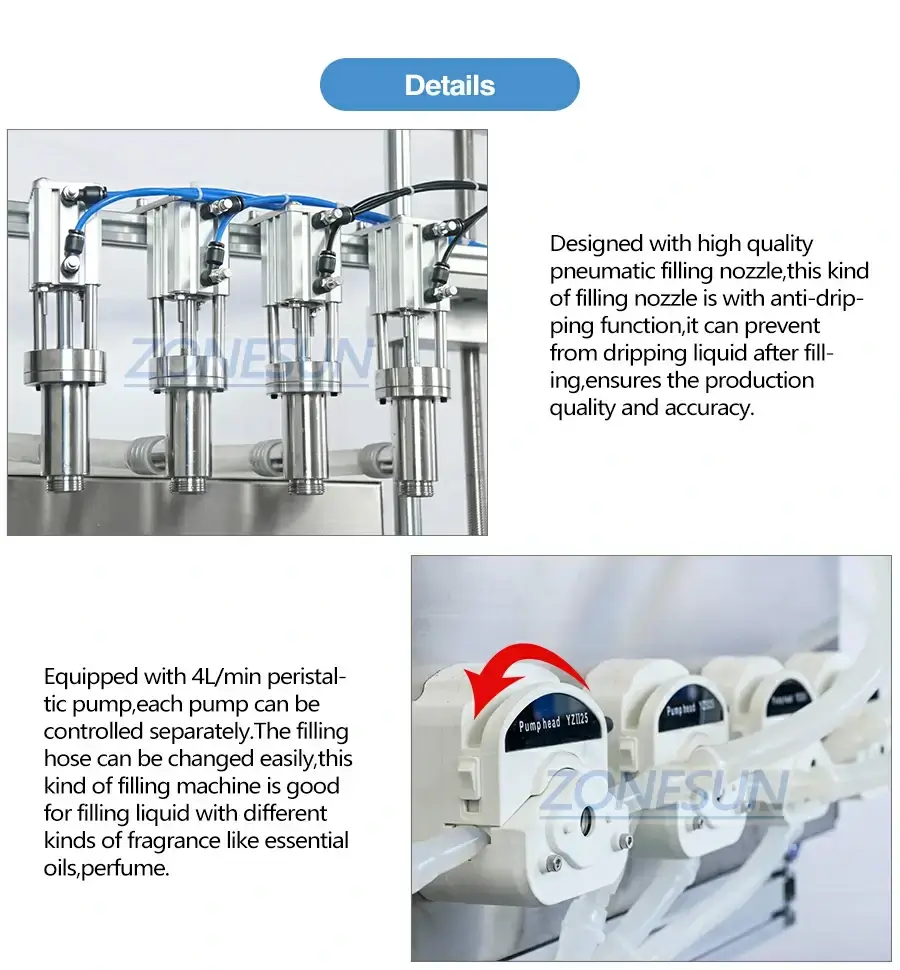

Filling nozzles	4(we can customize the nozzles based on your demands)
Working speed	30-50 bottles/min(depends on bottle size and liquid)
Air pressure	0.3-0.4MPa
Filling accuracy	≤±1% (For water)
Delay range	0.01s-999.9s
Bottle height	<220mm(Can be customized,max height 300mm)
Size of air compressor connector	OD8mm
Conveyor size	About 1100*115mm
Machine size	About 11005801070mm

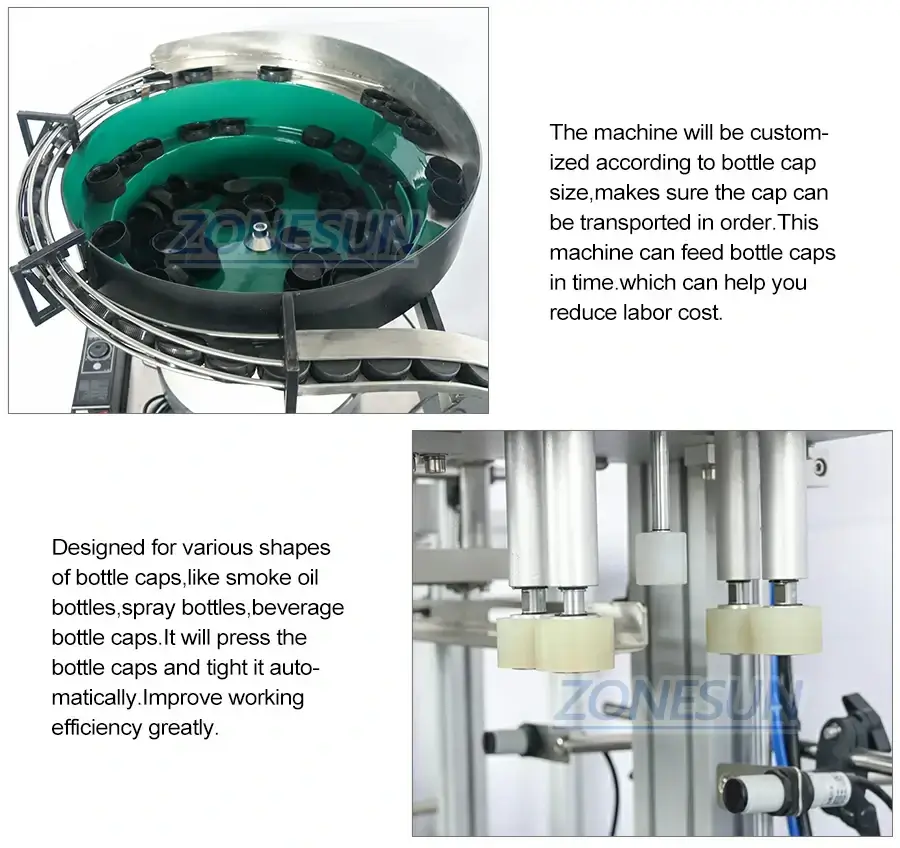

Vibratory Bowl

Machine Power	110/220V 50-60HZ
Material	Stainless Steel
Suitable Caps Diameter	Customized
Working Speed
Machine Size

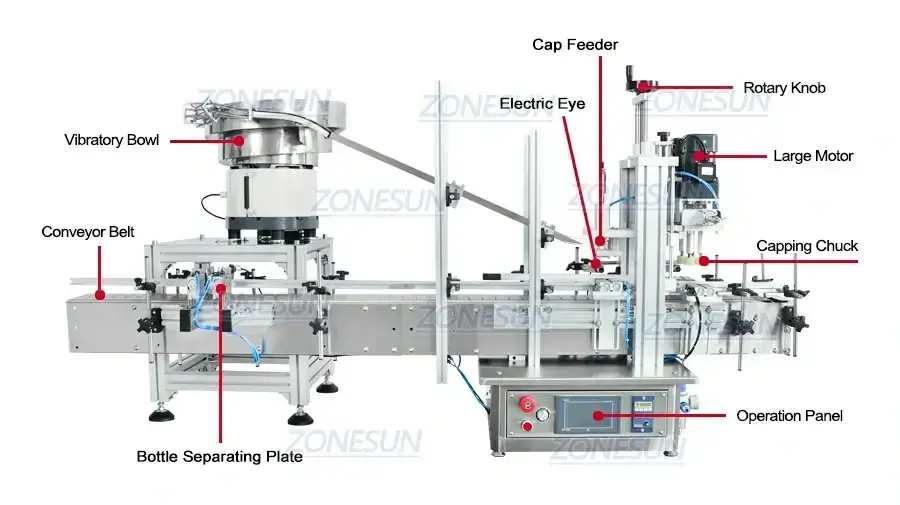

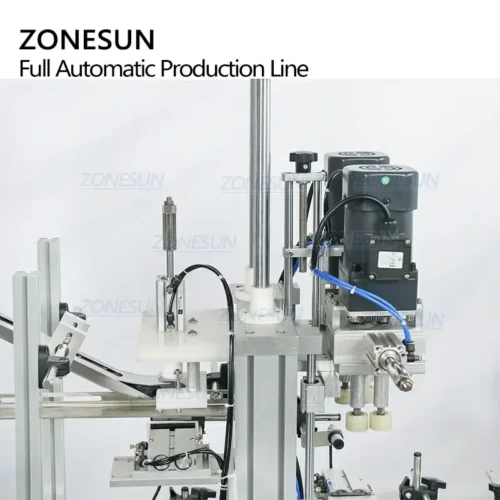

Capping Machine

Bottle height	60-270mm
Bottle Caps Diameter	18-70mm
Working speed	20-40 bottles/minute(depending on bottle and caps)
Working voltage	AC220V/110V 50-60HZ
Working pressure	0.4-0.6 MPa
Machine size	About 213010901040mm
Package size	About 11606101140mm
Package weight	About 97.5kg
Conveyor length	1117mm
Size of air compressor connector	OD 8mm

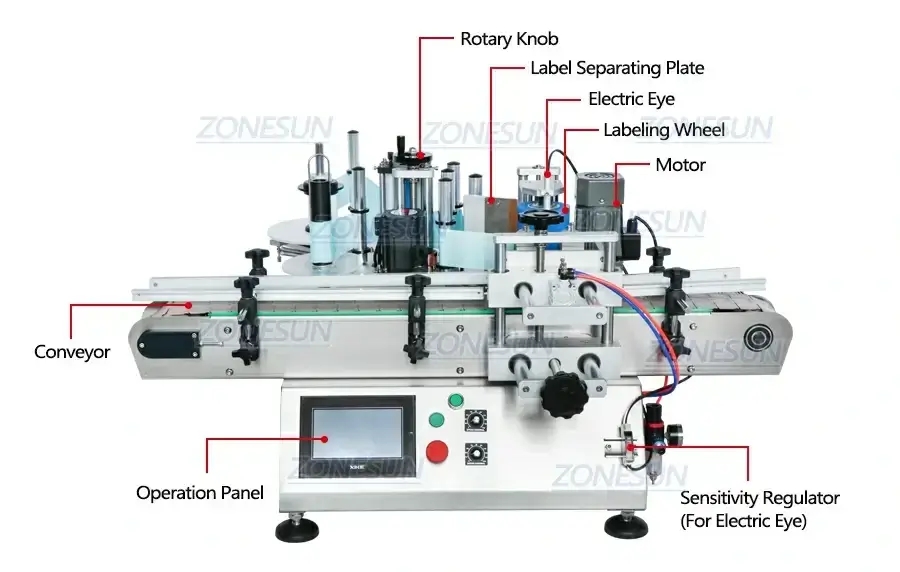

Voltage	110V-60HZ / 220V-50HZ
Working Speed	About 20-50bottles/min
Suitable Labeling Size	15-140mm (W) X 25-300mm (L)
Roll inside diameter (mm)	φ76mm
Roll outside diameter (mm)	φ350mm
Suitable Bottle Diameter	≤100mm
Package Size	About 1290860900mm
Package Weight	About 130kg
