Prefume Production Line

Prefume Production Line

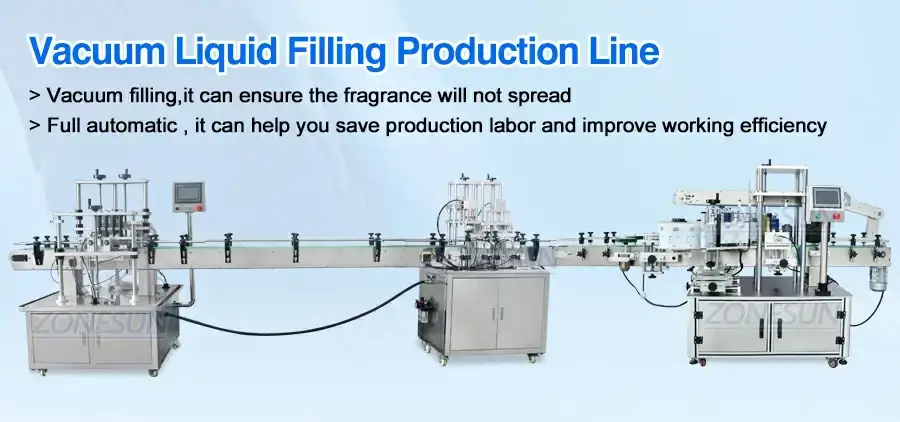

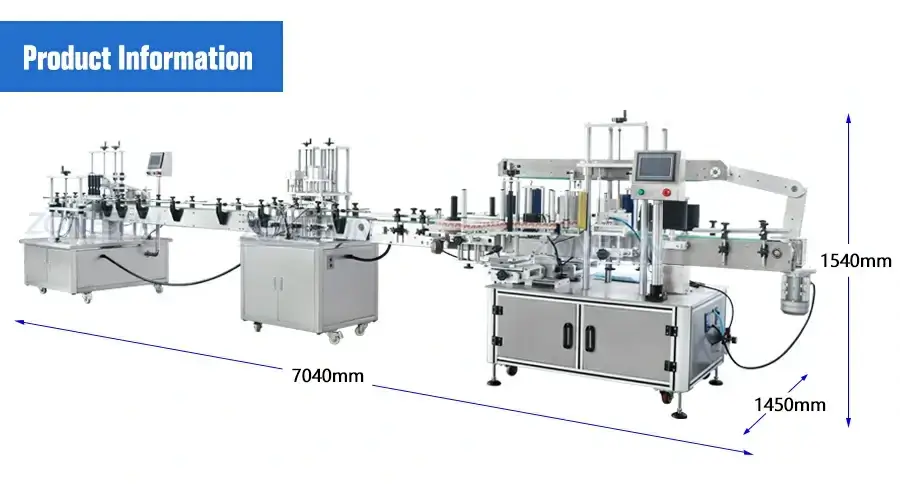

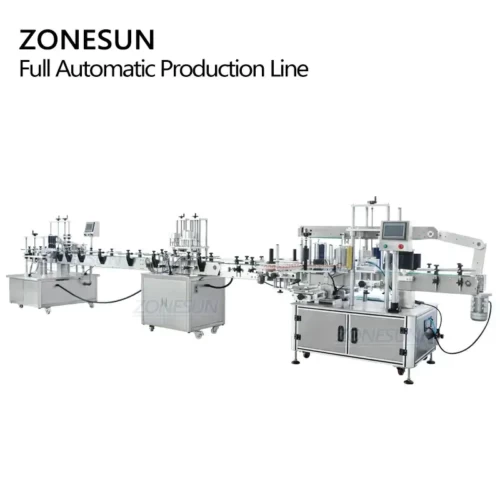

The full automatic production line for producing perfume.Consisting of vacuum filling machine,bottle crimping machine and labeling machine,it can help you improve working efficiency and save production labor.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Description:

The full automatic production line for producing perfume.Consisting of vacuum filling machine,bottle crimping machine and labeling machine,it can help you improve working efficiency and save production labor.

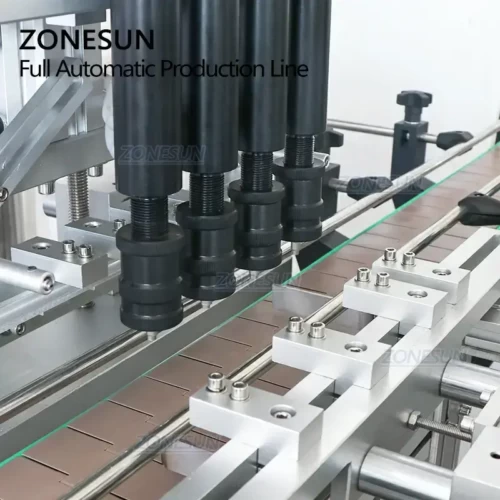

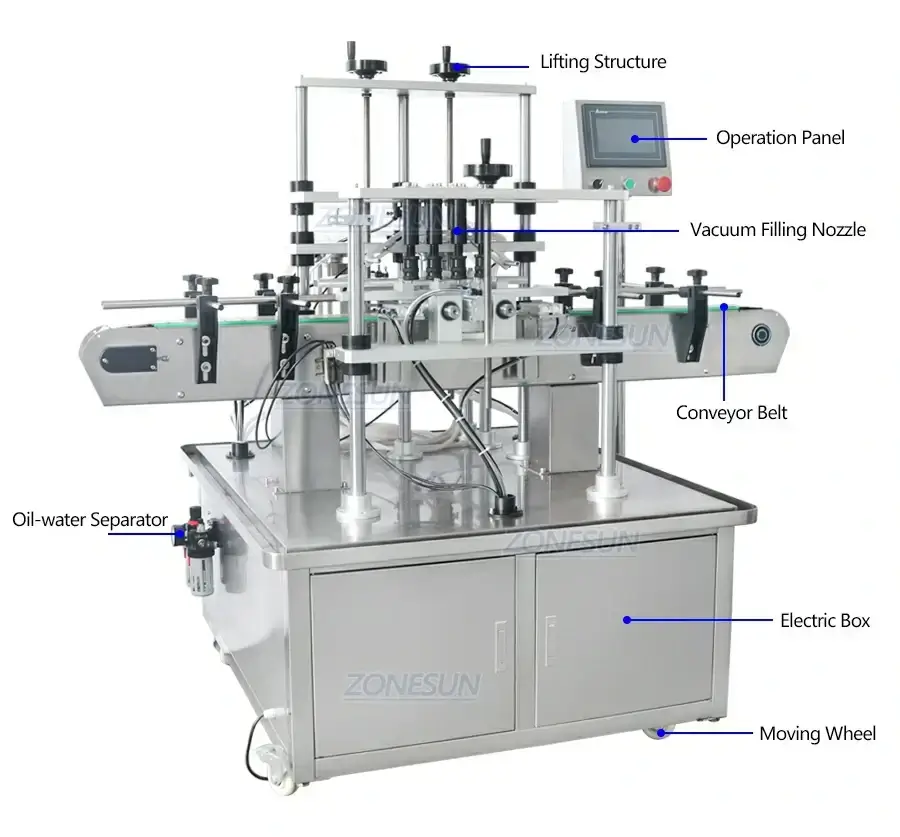

Model	ZS-YTZL4A
Filling head	4 Head
Air pressure	0.5-0.8MPa
Liquid level accuracy	±1mm
Viscosity range	The maximum applicable viscosity is 20Cps (static viscosity)
Working Speed	20-40 Bottles/Minute
Bottle height	≤250mm
Bottle Opening Size	≤φ4.5mm-φ28mm
Adjustable liquid level (from the bottle mouth)	15-50mm
Pumping rate	5.5L/S
Machine size	About 150011501530mm
Package size	About 166013101670mm
Net weight/Gross weight	About 278kg/339kg

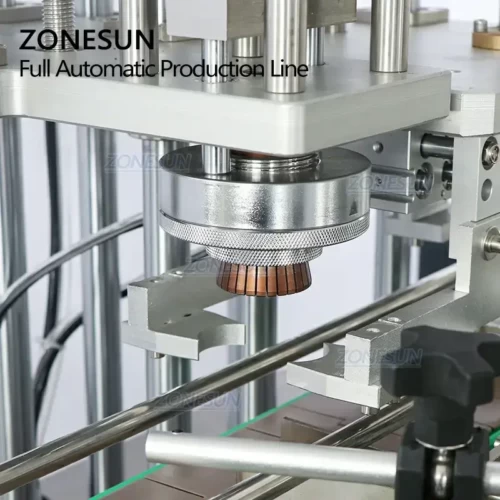

Machine model	ZS-YG09
Bottle height	60-200mm
Bottle opening size	13/15/18/20mm(customized)
Bottle diameter	≤100mm
Caps diameter	Customized
Machine size	About 13456551460mm
Machine weight	About 151.5kg
Package size	About 14608101630mm
Package weight	About 193kg

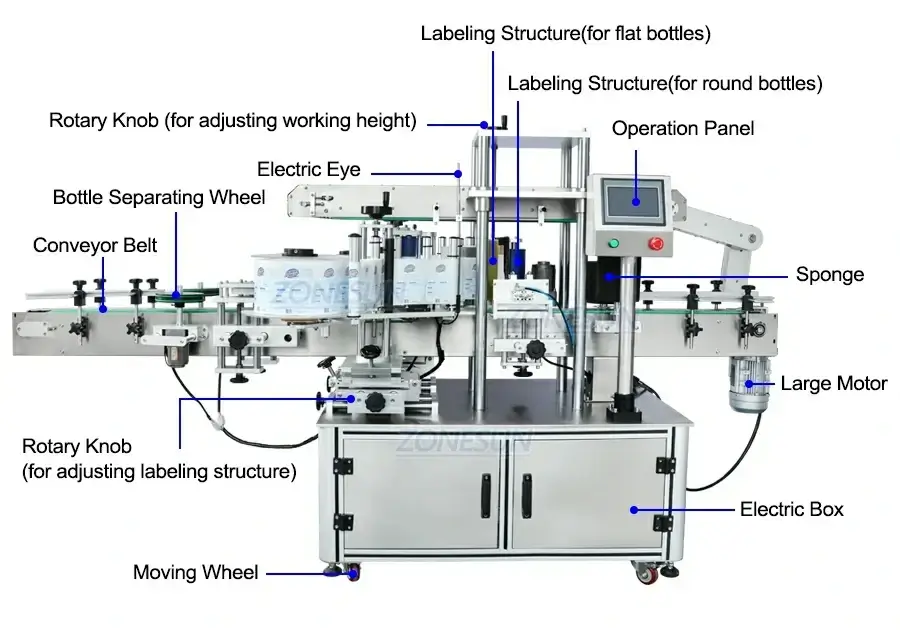

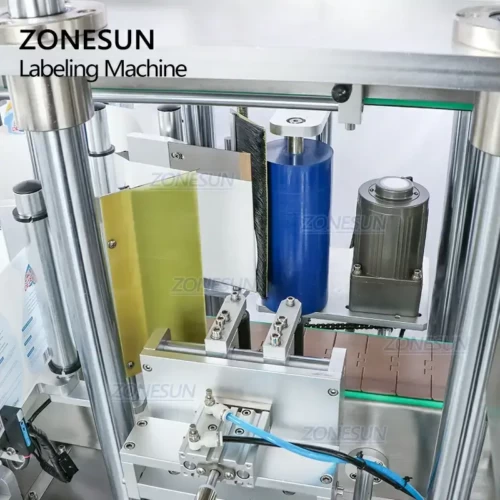

Machine Model	ZS-TB300Z
Machine Power	110/220V 2500W
Working Speed	30-150 bottles/min(based on bottle size)
Labeling Accuracy	±1mm
Suitable Labeling Object	30-300mm(L)30-100mm(W)50-350mm(H)
Suitable Label Size	15-300mm(L)*15-150mm(W)
Label Roll OD	Φ280mm
Label Roll ID	Φ76mm
Machine Size	About 271014501540mm
Package Size	About 19009701690mm
Net Weight/Gross Weight	About 361kg/410kg
