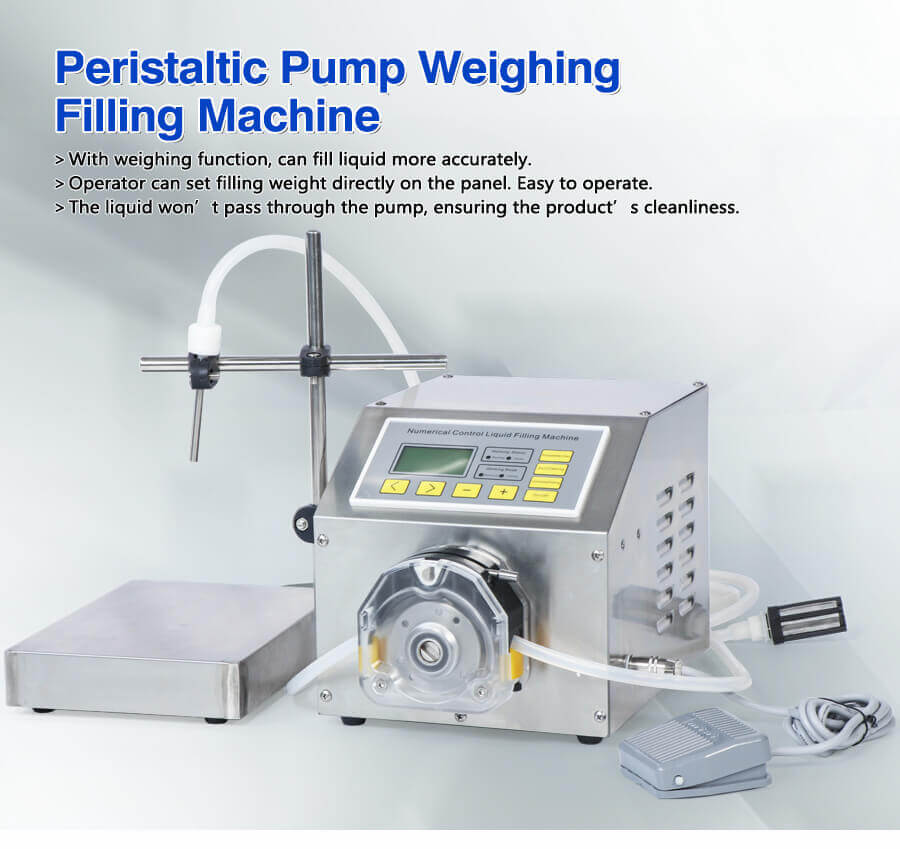

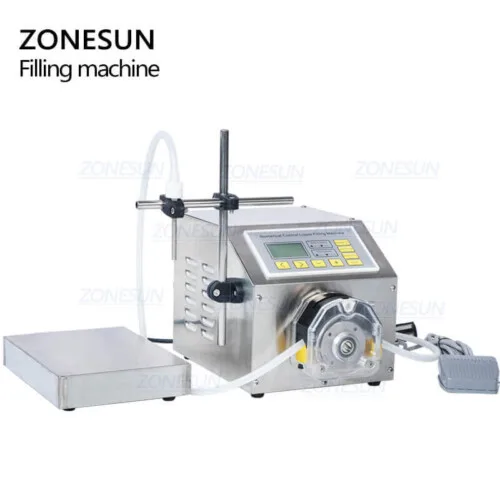

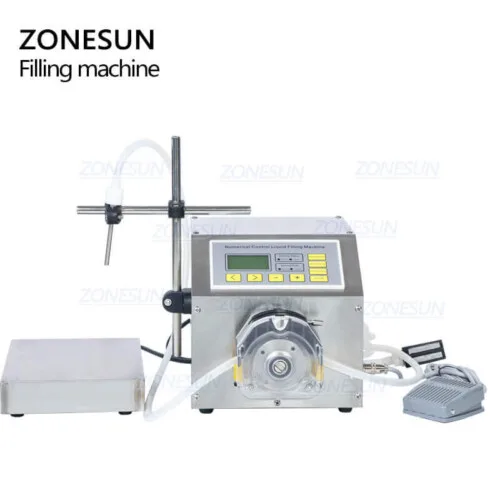

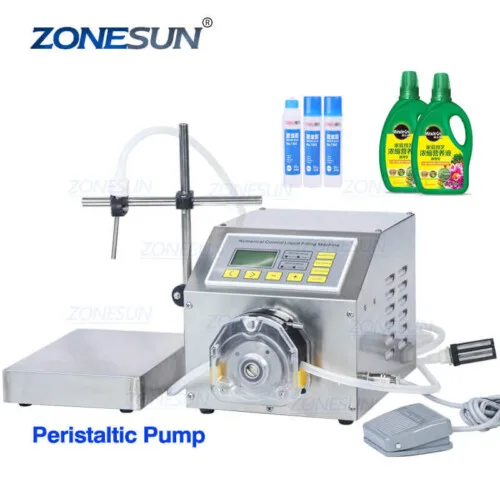

Peristaltic Pump Weighing Filling Machine
Product Description:

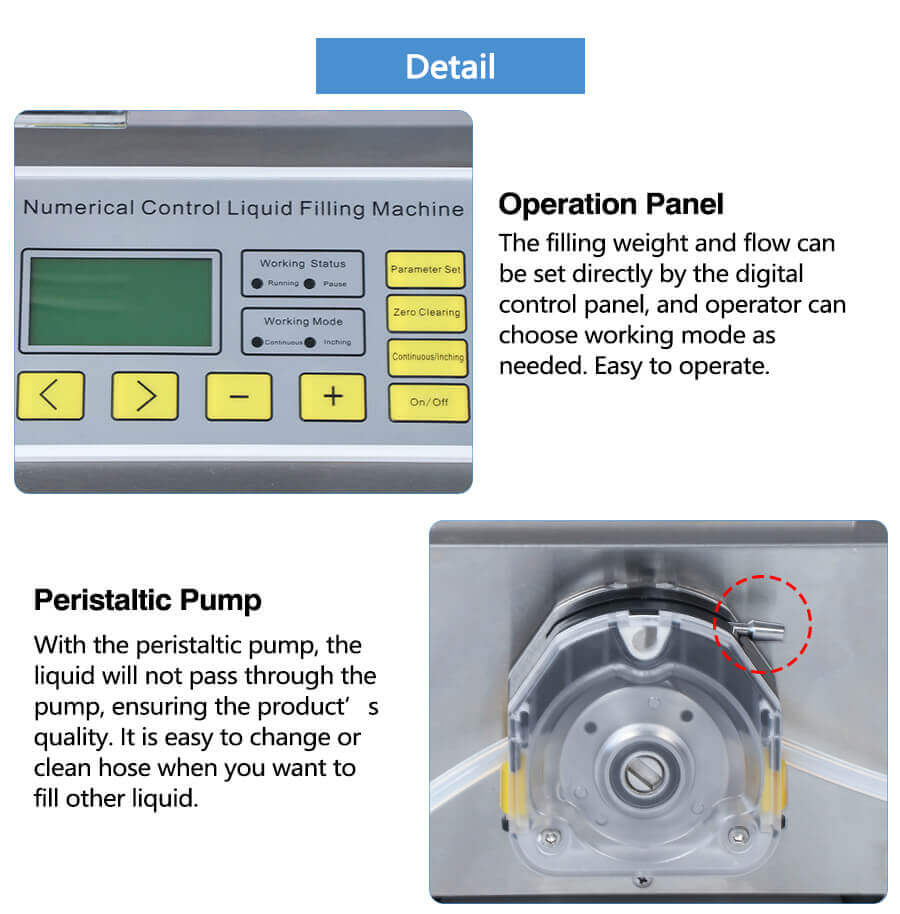

This semi-automatic weighing filling machine is suitable for liquid that is without particles, such as milk, essential oil, edible oil, ink, etc. With peristaltic pump, the liquid will not pass through the pump, ensuring cleanliness. Operator can set the filling weight on the panel directly. Easy to operate. The machine can be widely used in medicine, daily chemical, cosmetic, catering industries.
Product Parameters:
Machine Model | ZS-PP531W |
Machine Power | 220V/110V 100W |

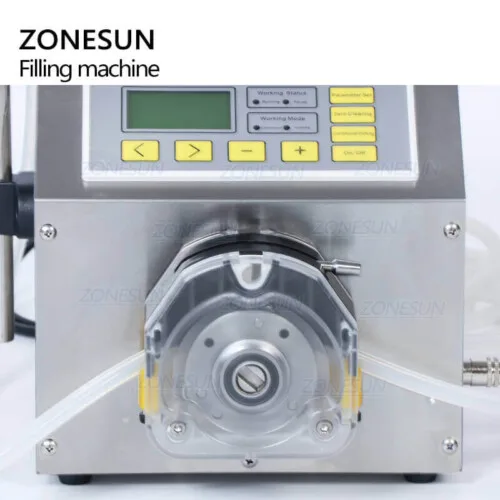

Machine Pump | Peristaltic Pump |
Max Flow Rate | 6L/min |
Filling Range | 30mL-6L |
Weighing Range | 30g-10kg |
Repetitive Error | ±1g |

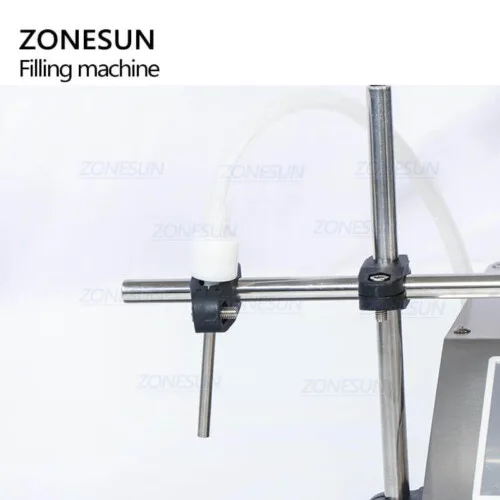

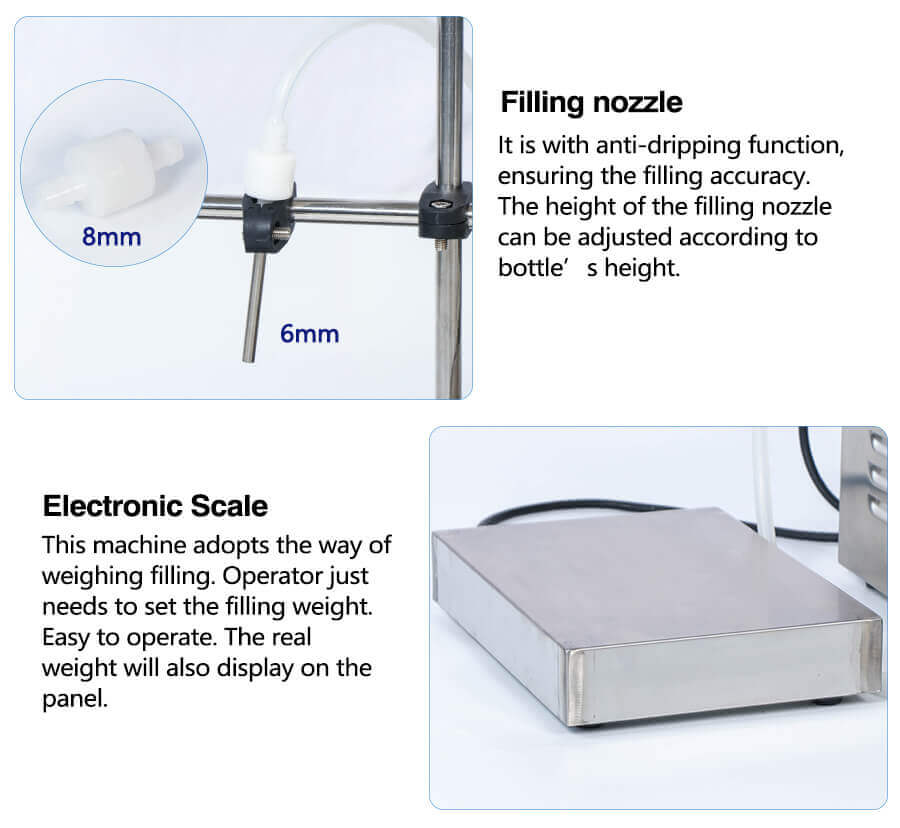

Filling Nozzle Diameter | Φ6mm&Φ8mm |
Hose Diameter | 6.4mm(ID)/9.4mm(OD) |
Hose Length | 2m(inlet)/1m(outlet) |
Liquid Temperature | <150℃ |
Max Suction Function | 4m |
Memory Function out of Power | Available |
Machine Weight | About 7.5kg |

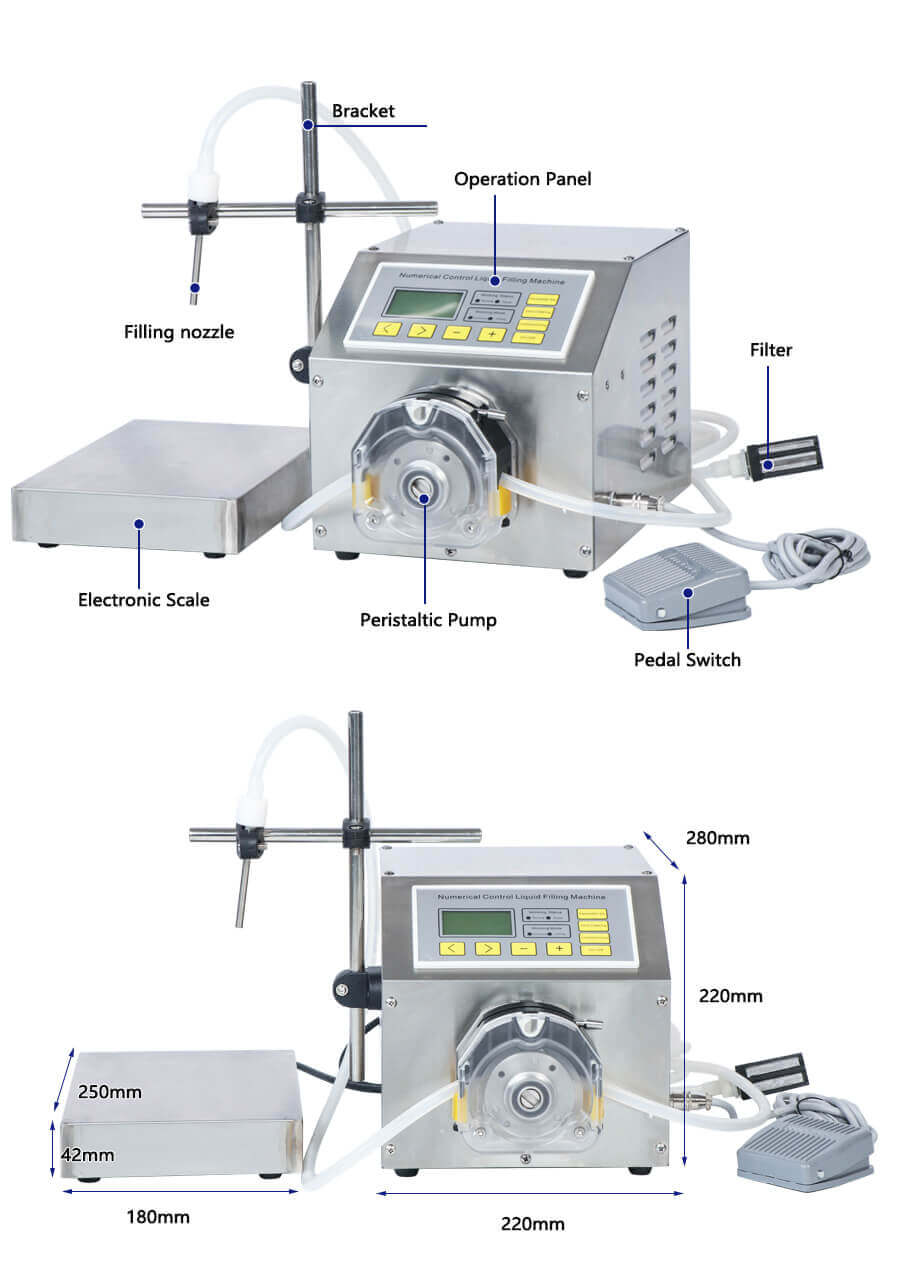

Machine Size | About 218mm*272mm*203mm (L*W*H) |
Weighing Device Size | About 250*180*42mm |
Package Weight | About 8kg |
Package Size | About 400*370*270mm |
