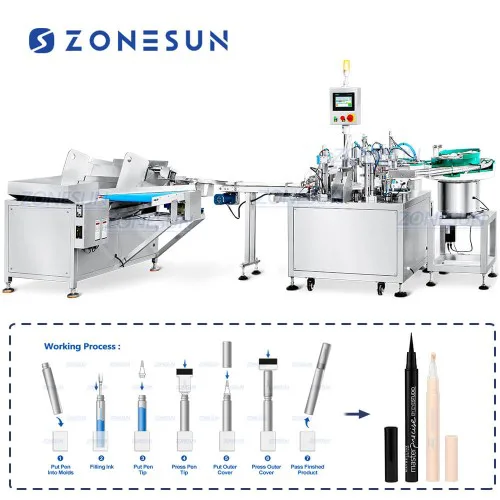

Monoblock Mark Pen Filling Capping Machine
This monoblock packaging machine is designed for the efficient packaging of marker pens. It simultaneously fills ink into the pen, presses the marker tip, and seals the outer cover, significantly enhancing productivity.
Product Description:
This monoblock packaging machine is designed for the efficient packaging of marker pens. It simultaneously fills ink into the pen, presses the marker tip, and seals the outer cover, significantly enhancing productivity.
Product Parameters:
| Machine Model | ZS-AFCU1 |
| Voltage | 110/220V |
| Filling Pump | ceramic pump |
| Number of Filling Heads | 2 heads -diving nozzle |
| Suitable Pen Size | Customized |
| Filling Volume | 3 ml (can be customized) |
| Filling Error | ±0.1 ml (based on filling capacity and filling materials) |
| Speed | 2000-2300 pieces/hour |
| Machine Material | 304 stainless steel |

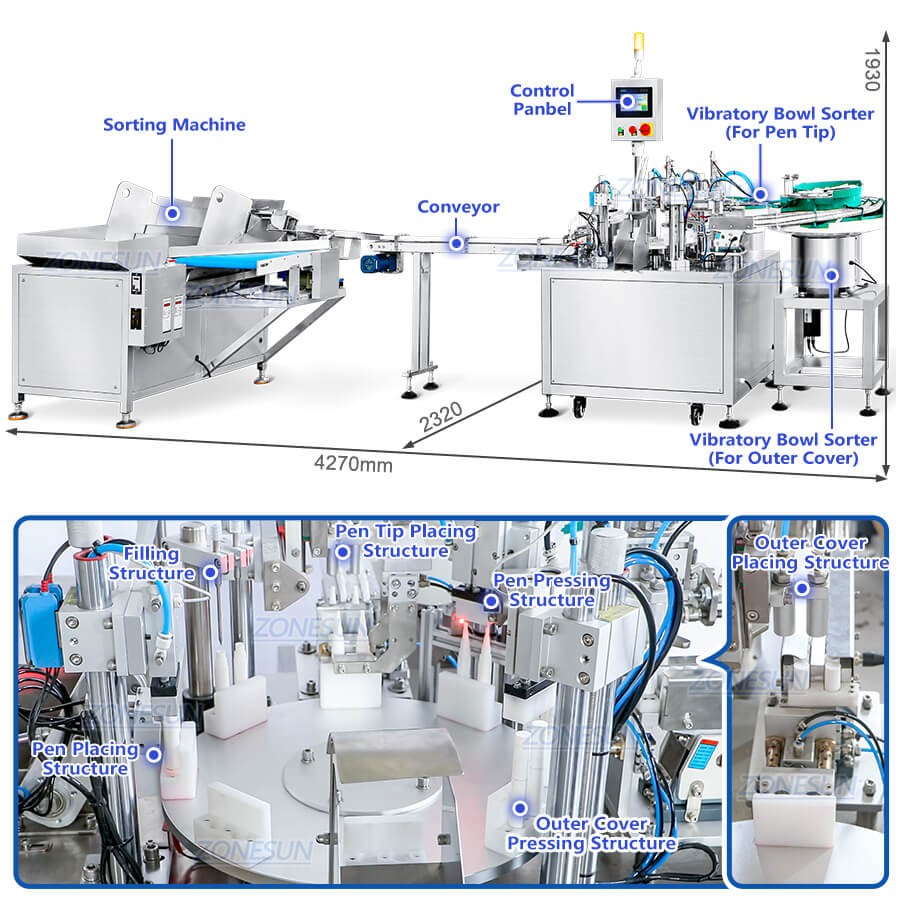

| Machine Size | About 4270*2320*1930mm |
| Packaging Size | About 1130*600*650mm(Vibratory Bowl Sorter) About 1160*700*740mm(Bracket) About 1340*1100*1260mm(Sorting Machine) About 1350*1060*1830mm(Main Machine) |
| Packing Weight | About 93kg(Vibratory Bowl Sorter) About 93kg(Bracket) About 287kg(Sorting Machine) About 311kg(Main Machine) |
| Filling Capping Machine Configuration | ||
| Machine Component | Brand | Origin |
| PLC | Siemens | Germany |
| Pneumatic Components | Airtac | Taiwan,China |
| Program Controller | Siemens | Germany |
| Electrical Sensor | Panasonic | Japan |
| F&C | Panasonic | |
| Relays & Air Switches | Siemens | Germany |
Product Details:
Touch Screen Control Panel
Customizable interface for different language

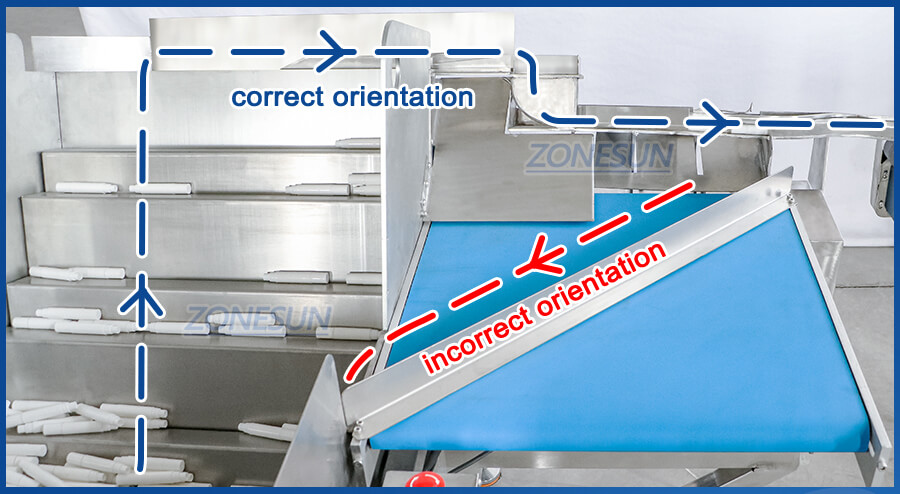

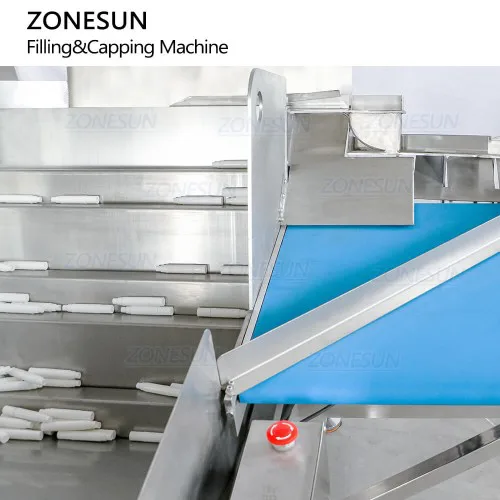

Pen Sorting Machine
Supply pen shaft timely and correctly

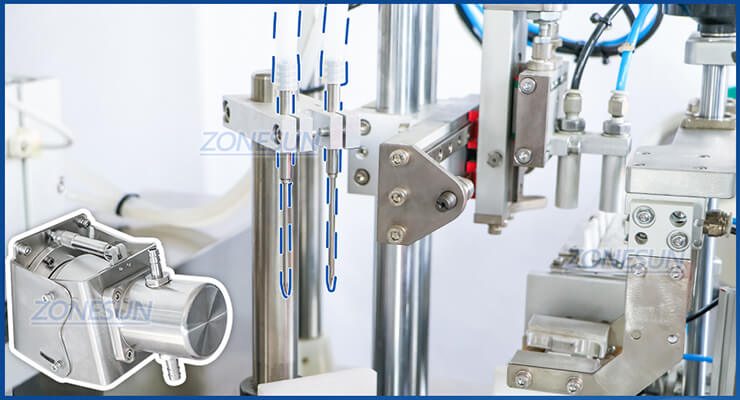

Double Filling Heads
High filling accuracy (3ml±0.1ml), quantity of filling nozzles can be customized.

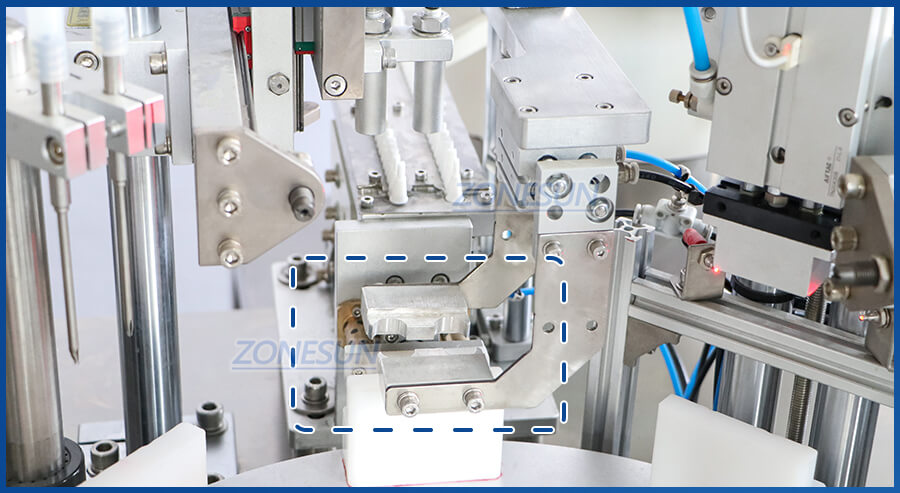

Pen Tips Placing Structure
Customized clamping structure improves working accuracy

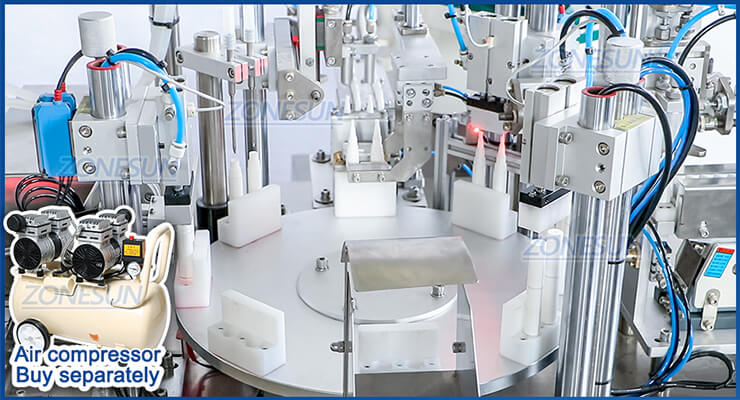

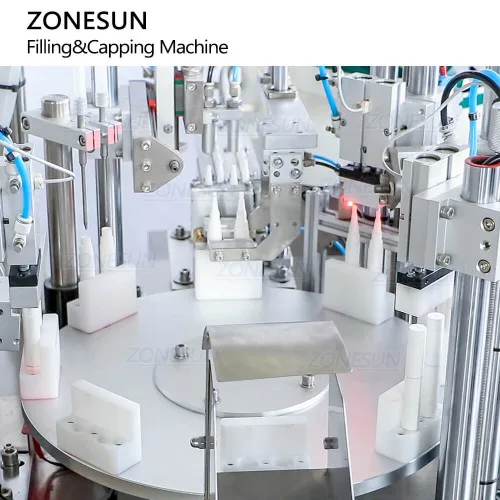

Rotary Starwheel

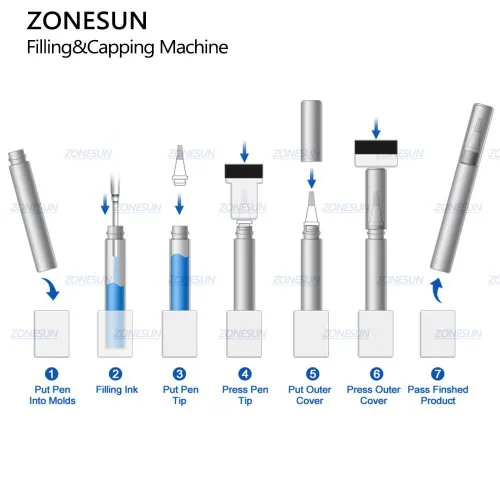

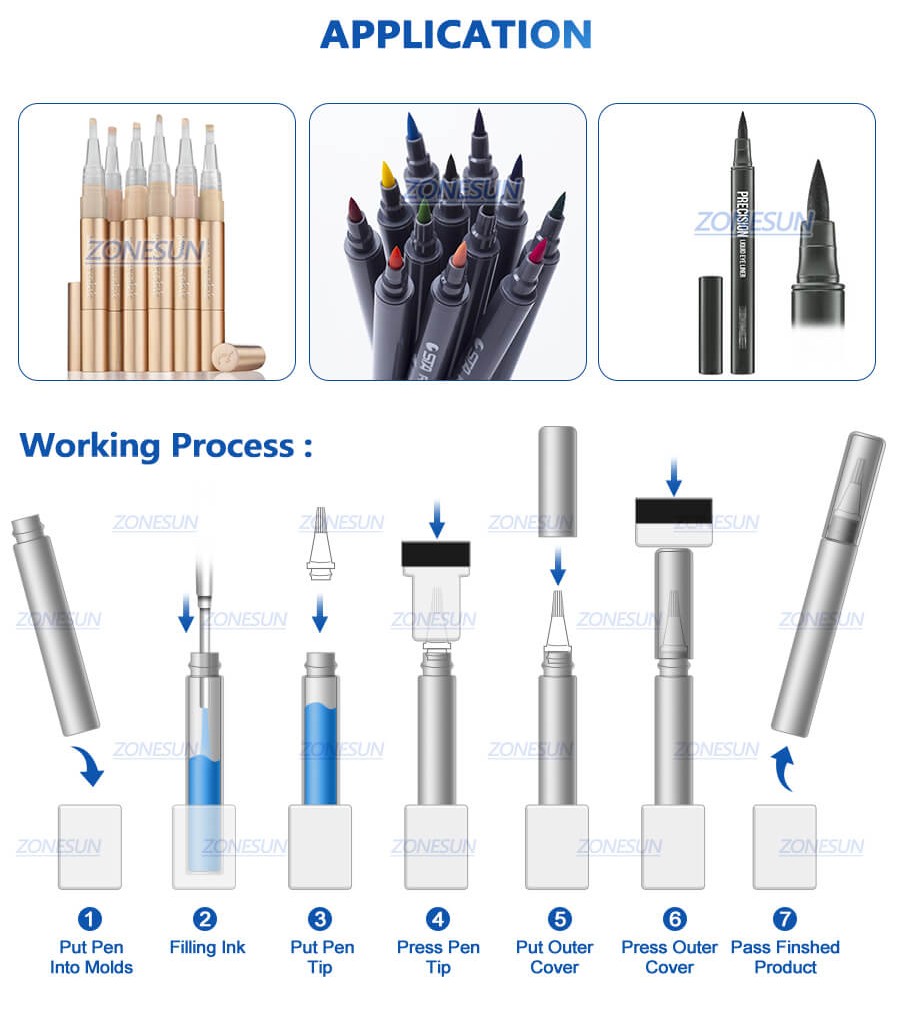

Filling, pen tip placing &pressing, covers placing & pressing can be finished at the same time.

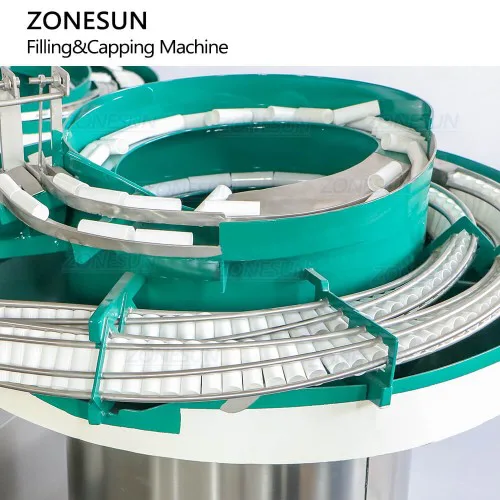

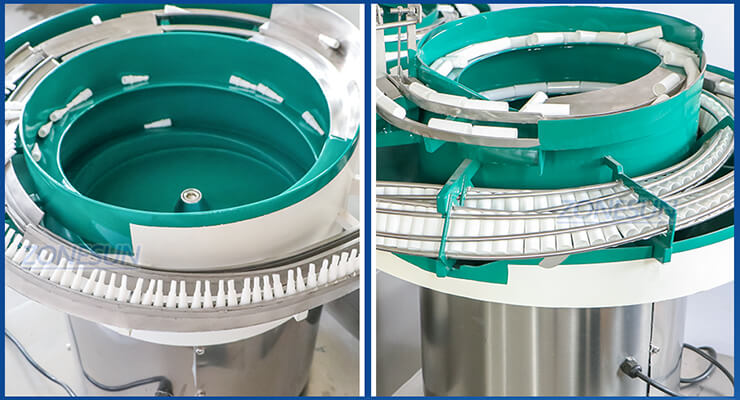

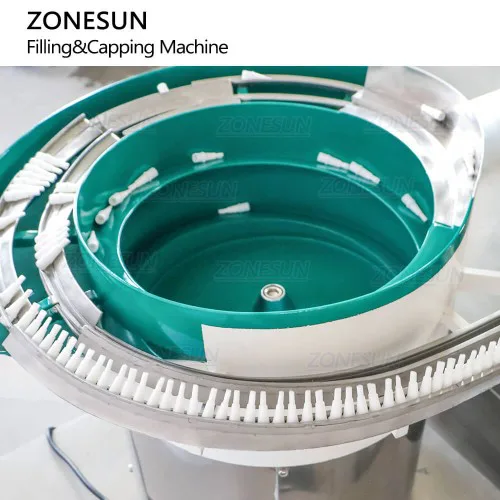

Vibratory Bowl Sorter
They are customized according to pen tips and outer cover size
