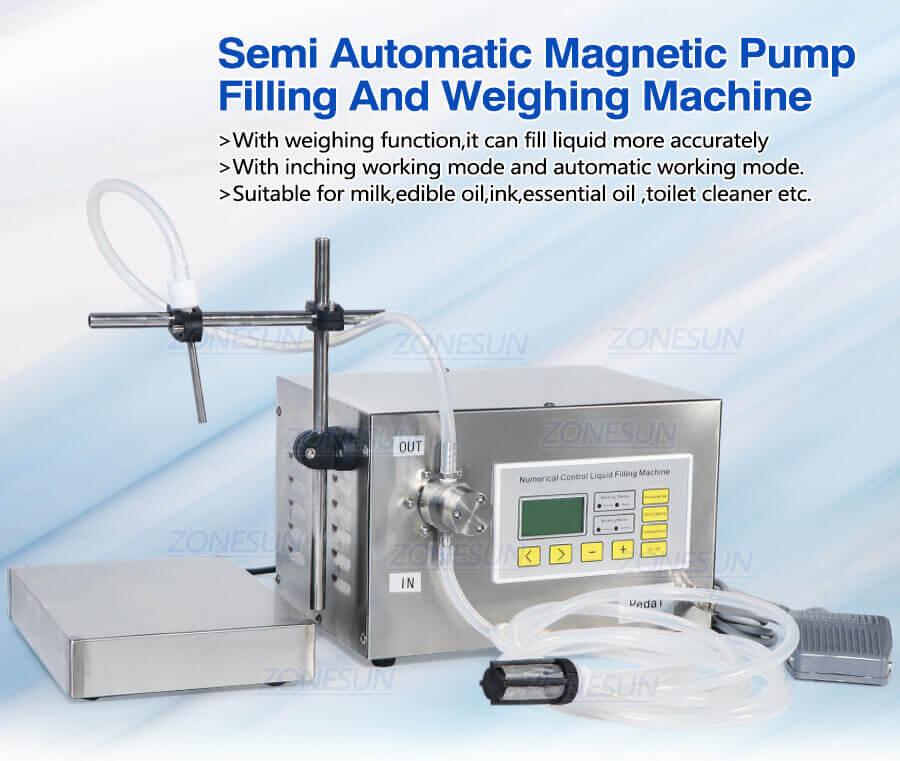

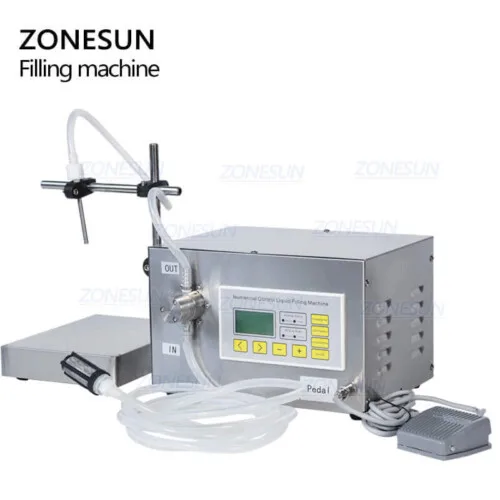

Magnetic Pump Weighing Filling Machine

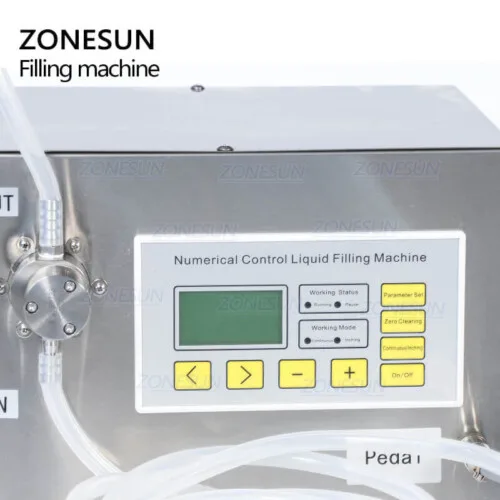

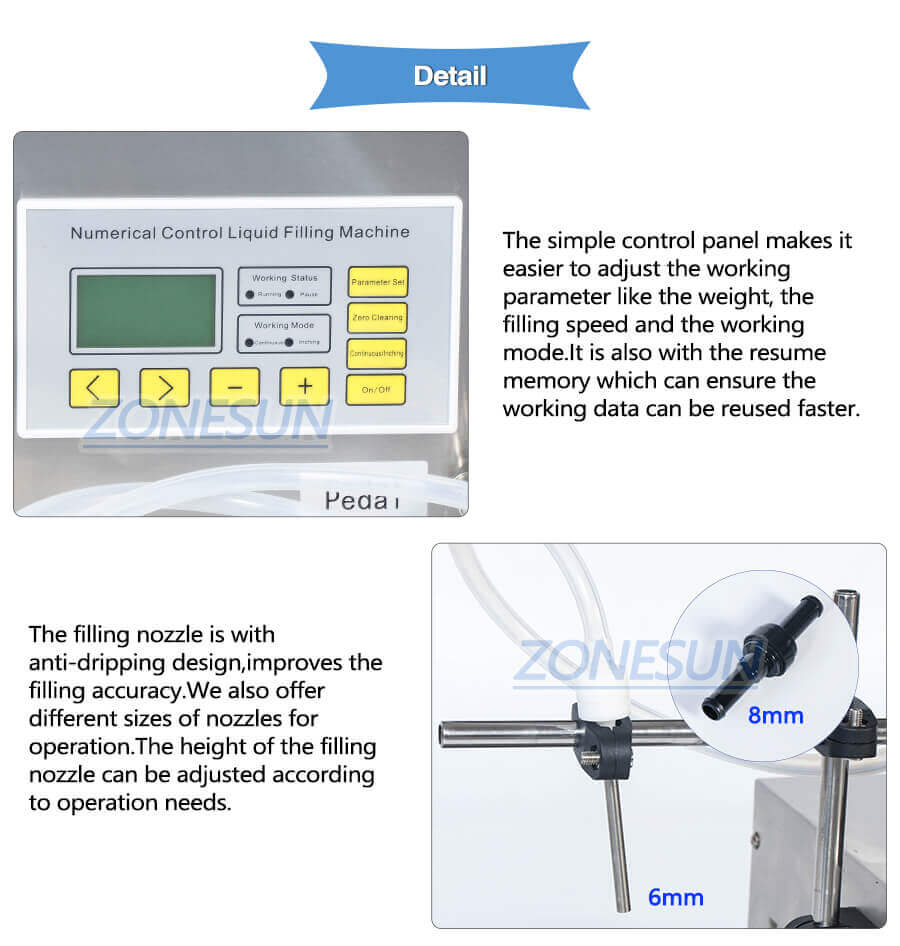

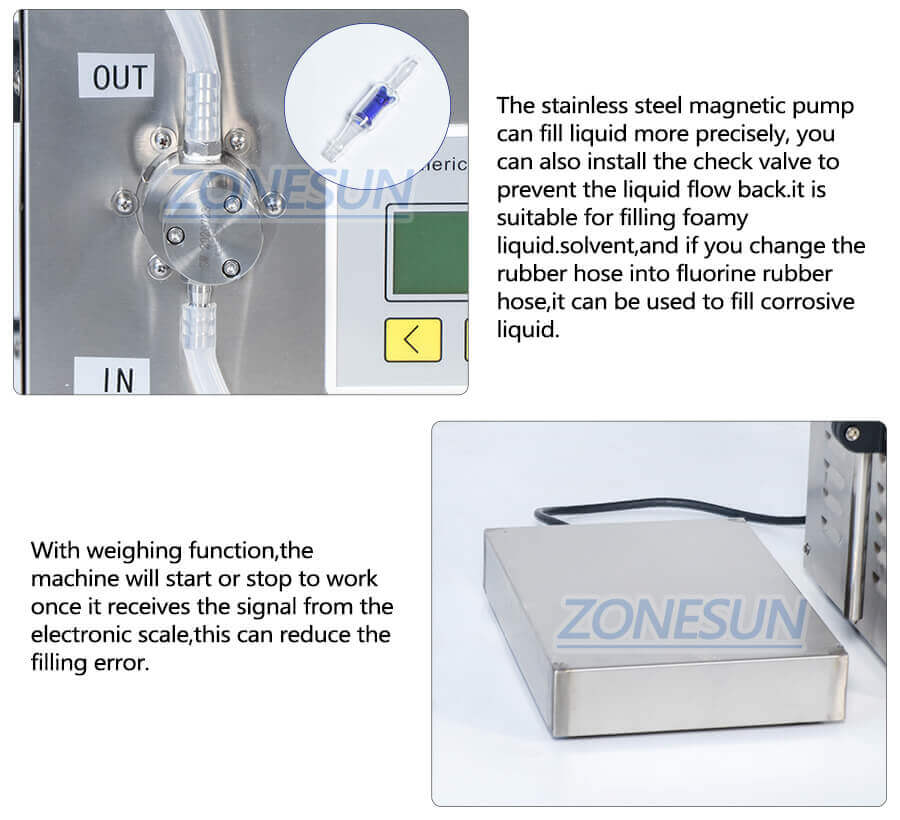

The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Product Description:
The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries.

Product Parameters:

Machine Model	ZS-MP251W

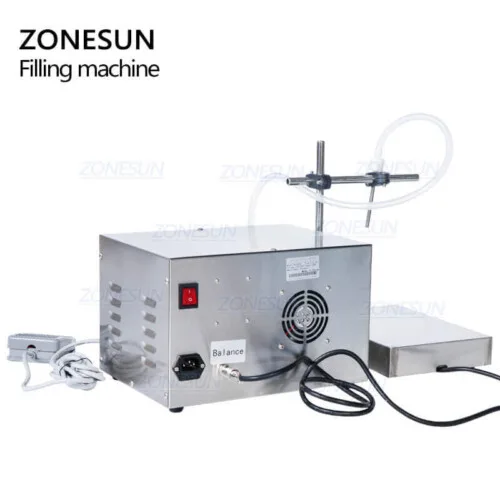

Machine Power	110/220V 50-60HZ 100W
Pump	Magnetic Pump
Max Flow Rate	3500ML/min

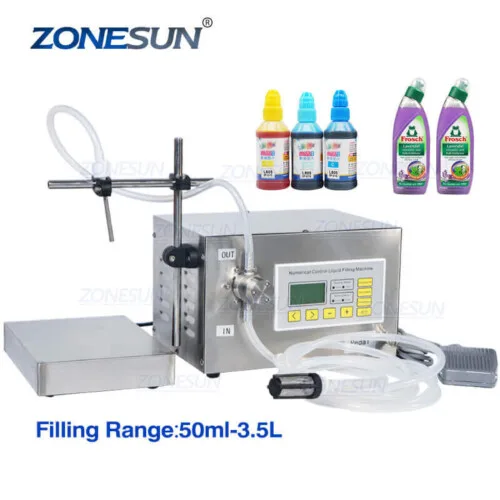

Filling Range	50ml-3500ml
Weighing Range	30g-10kg
Filling Error	About ±1g
Hose Diameter	6mm( ID ) /10mm( OD )
Hose Length	2m( inlet ) /1m( outlet )

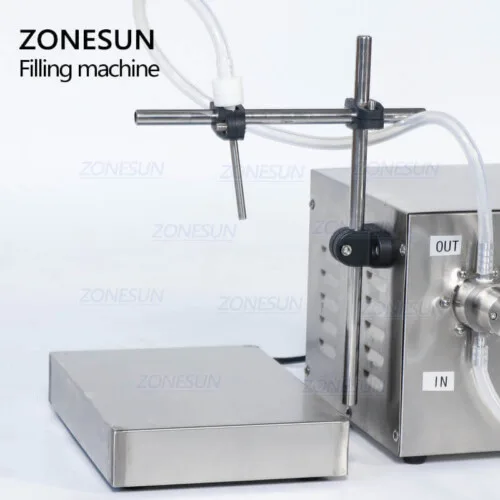

Filling Nozzle Diameter	6mm /8mm
Liquid Temperature	＜120℃
Max Suction Distance	4m
Max Head of Delivery	4m
Suitable Liquid	milk,ink,cooking oil,essential oil etc

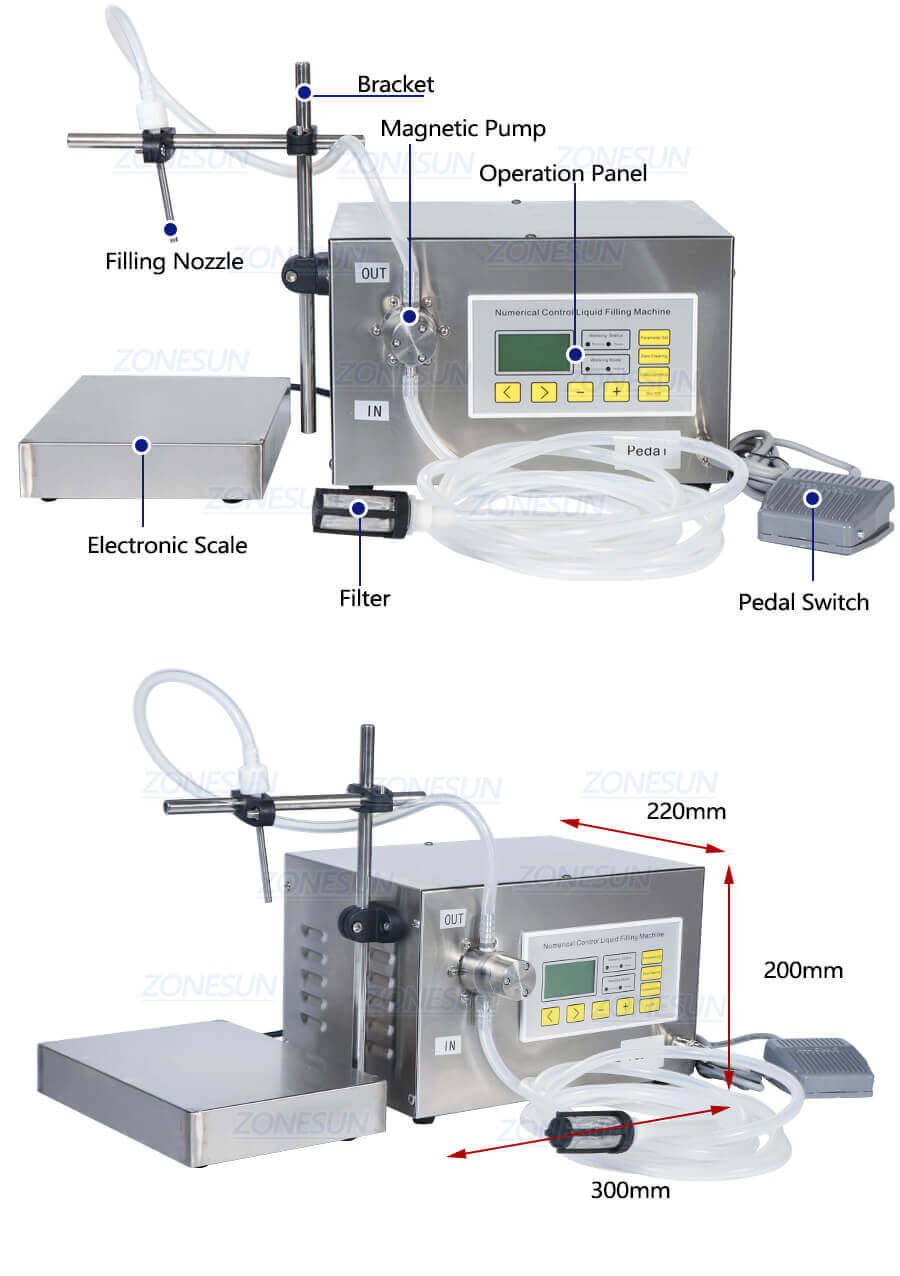

Machine Size	About 220300200mm
Machine Weight	About 7.2kg
Package Size	About 400370240mm
Package Weight	About 7.8kg
