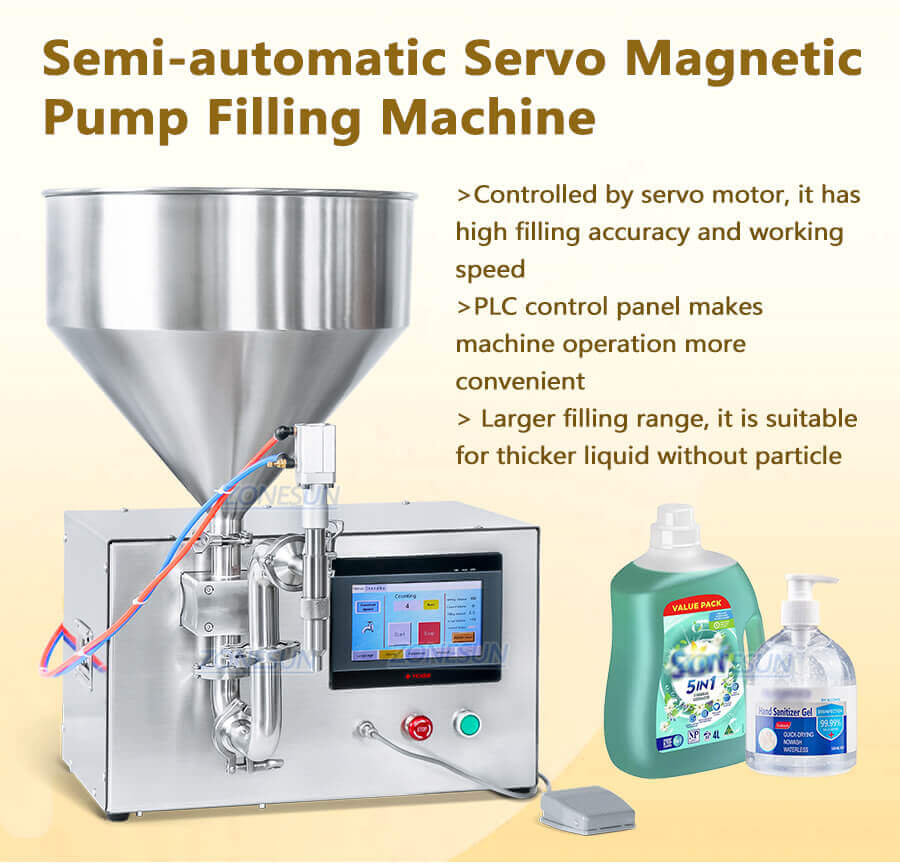

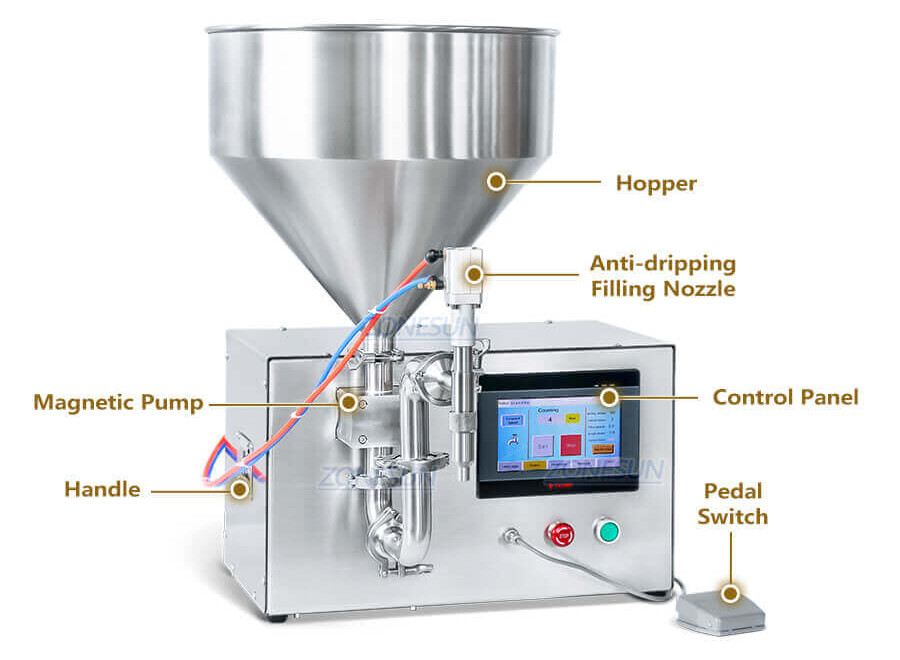

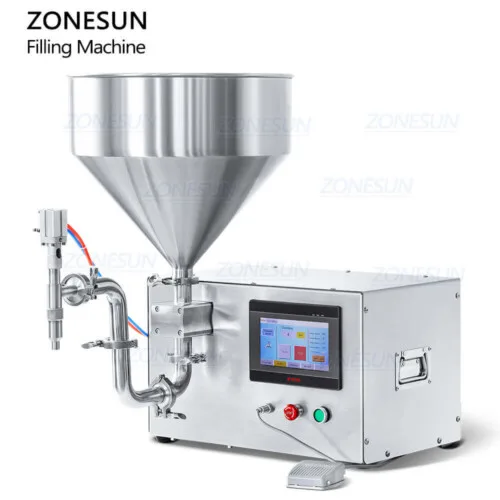

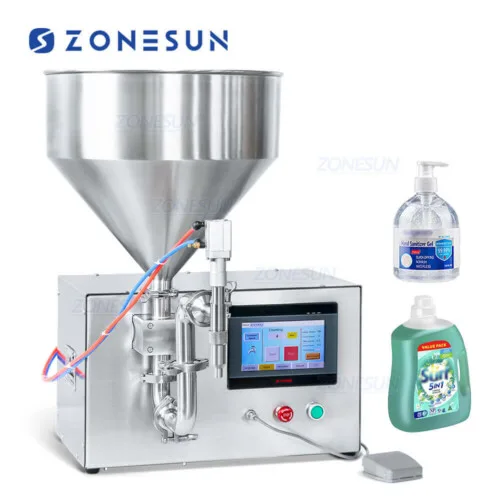

Large Flow Paste Filling Machine

This semi-automatic filling machine is equipped with 30L magnetic pump, it is suitable for filling thicker liquid like honey,peanut butter, massage oil, lotion etc.It is controlled by servo motor, machine operation is more convenient and has high filling accuracy.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Description:
This semi-automatic filling machine is equipped with 30L magnetic pump, it is suitable for filling thicker liquid like honey,peanut butter, massage oil, lotion etc.It is controlled by servo motor, machine operation is more convenient and has high filling accuracy.

Machine model	ZS-GTMP30L
Machine voltage	110/220V 50-60HZ 800W
Filling pump	Servo motor driven magnetic pump
Viscosity of liquid	0.2-12000cps
Max flow rate	45L/min
Recommend filling range	10ml-10L
Filling accuracy	0.2%-1%
Working speed	900-1200BPH(based on 400ml honey)

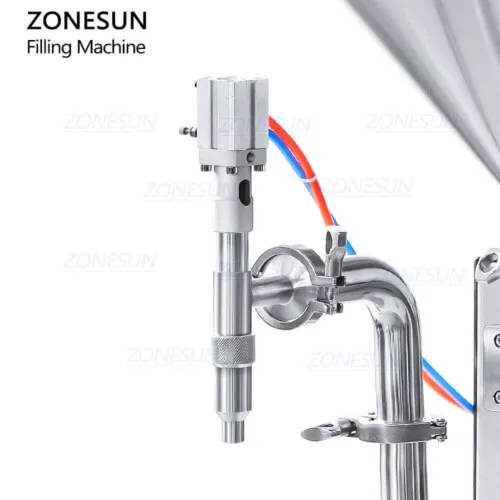

Filling nozzle size	Anti-dripping filling nozzle OD=12mm ID=10mm
Machine size	About 505060006950mm
Machine weight	About 28.5kg
