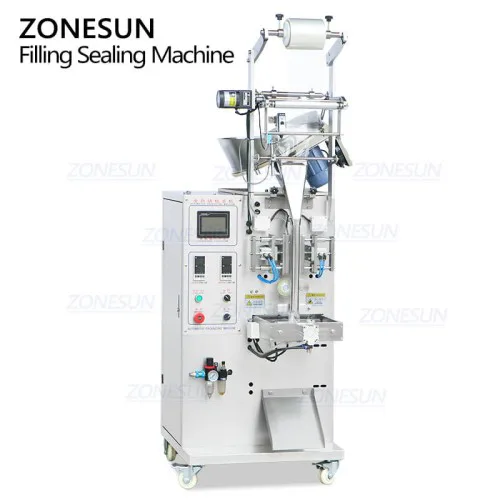

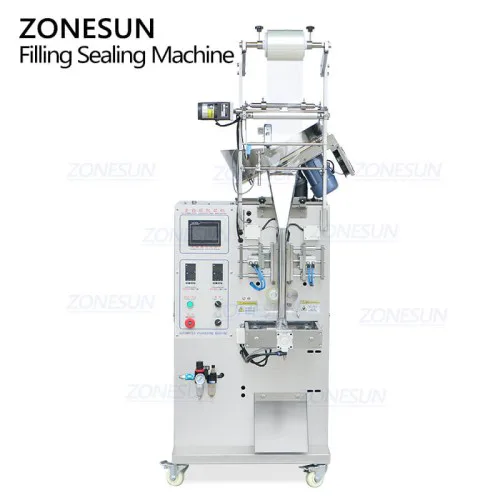

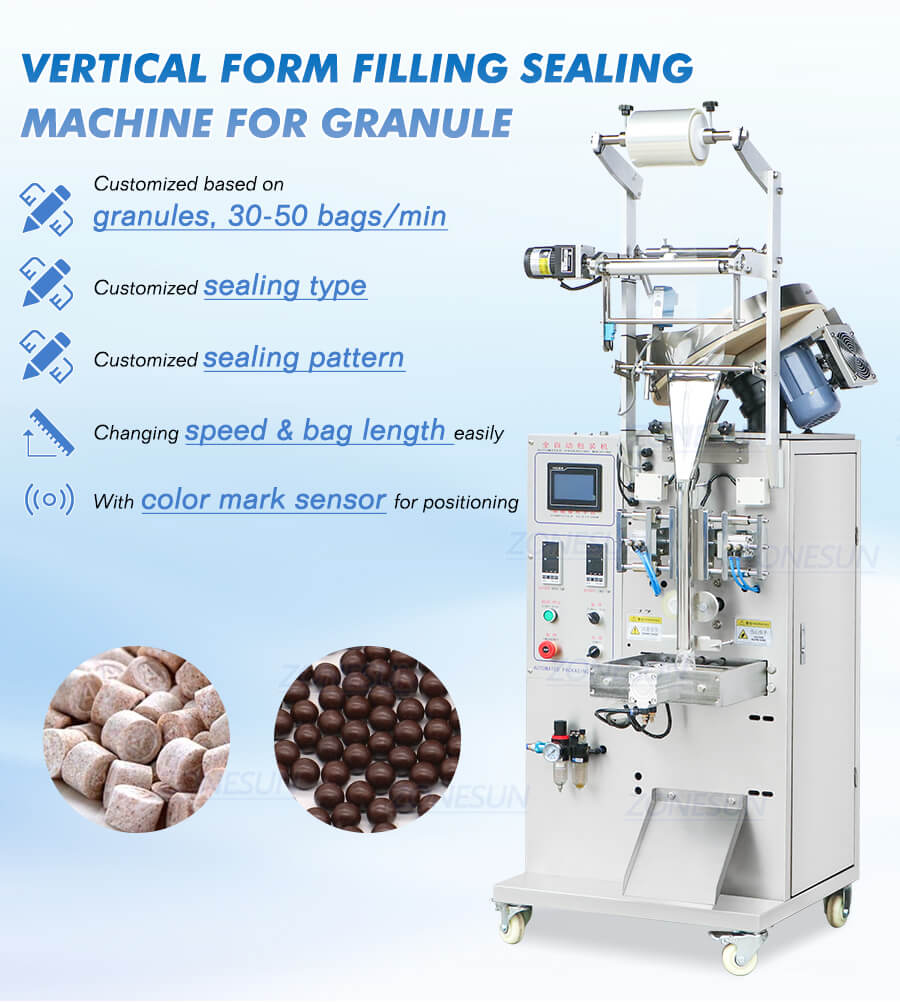

Granule Bag Vertical Form Filling Sealing Machine
Product Description:
This filling and sealing machine is ideal for automated packaging of round and spherical products in various industries, including food, chemicals, and cosmetics. It can be used for products like candies, chocolate beans, and coffee beans.
Product Parameters:
Machine Model | ZS-SLFK80 |
Machine Power | 1.1KW |
Power Supply Voltage | 220V50HZ-60HZ |
Measuring Range | 8pieces/bags (Customized) |
Granule Size | 3.2-3.8mm thickness 5mm diameter (Need sample for custom) |
Measuring Method | Counting |
Unloading Method | Through the counting disc |
Packing Speed | 30-50 bags/min |
Bag Size | 40-190(L)*40-100(W) (Customized) |

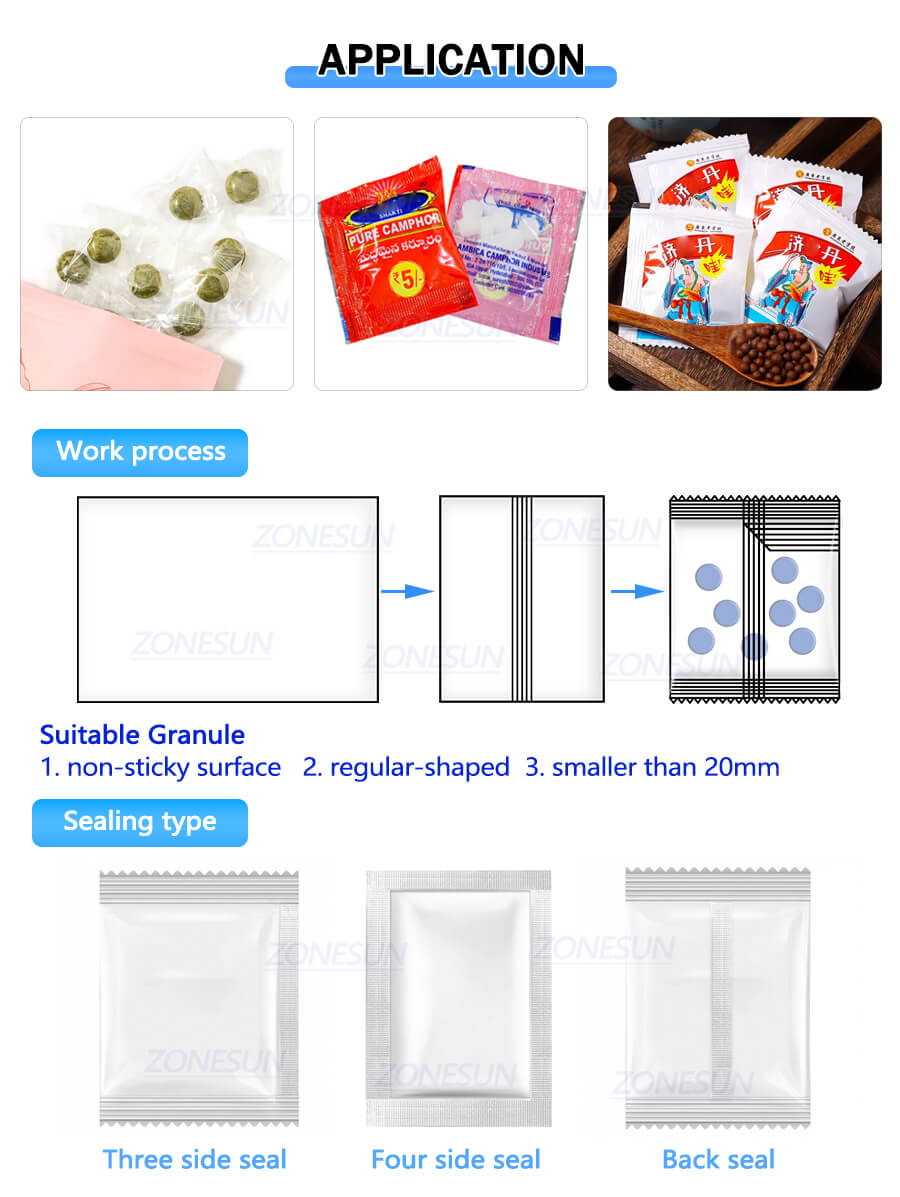

Sealing Form | three-side sealing, back sealing (Customized) |
Packing Material | paper/polyethylene, aluminum foil/polyethylene, nylon/tea filter paper, etc. |
Film Thickness | 0.04-0.08mm |
Film Width Range | 220mm |

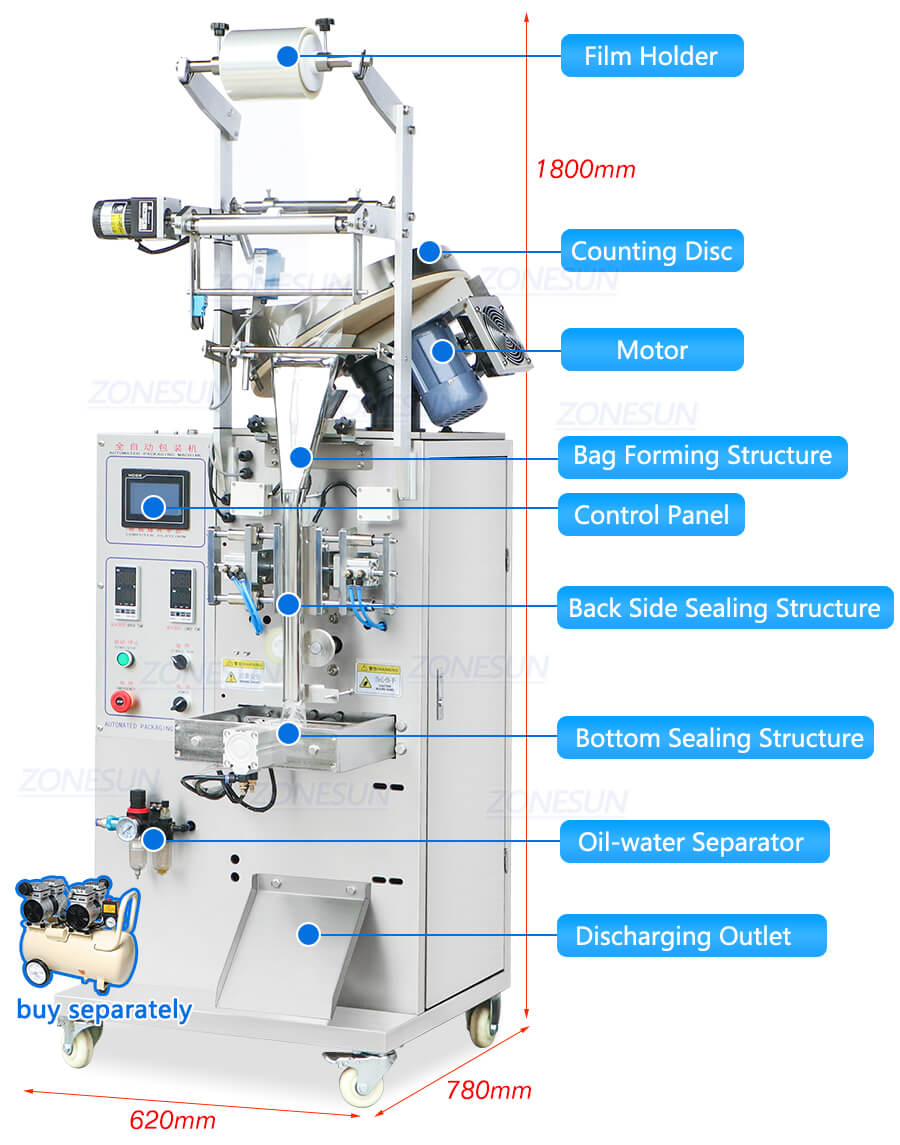

Machine Size | About 620*780*1800mm |
Machine Weight | About 200KG |
Product Details:

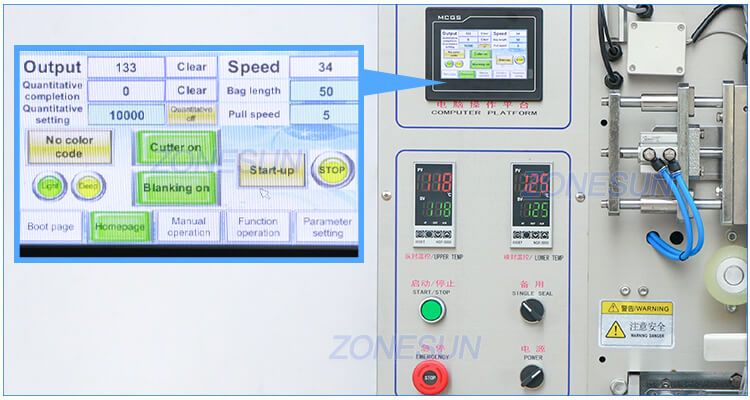

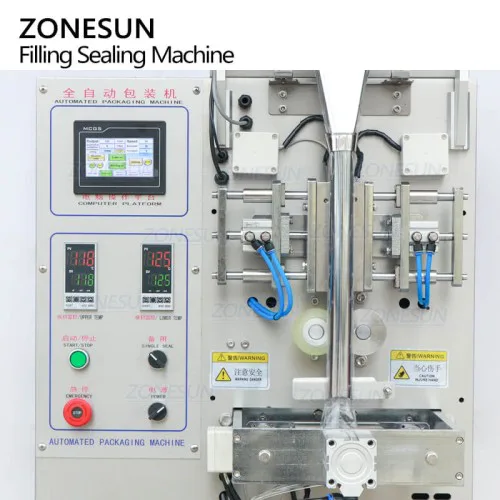

Control Panel
Integrated with the temperature controller, parameter setting more conveniently.

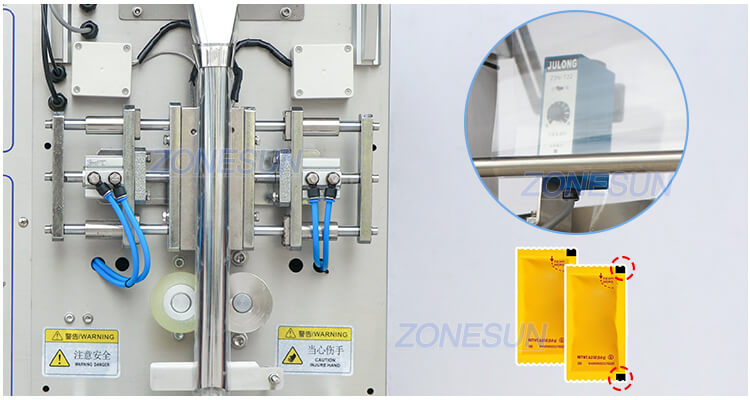

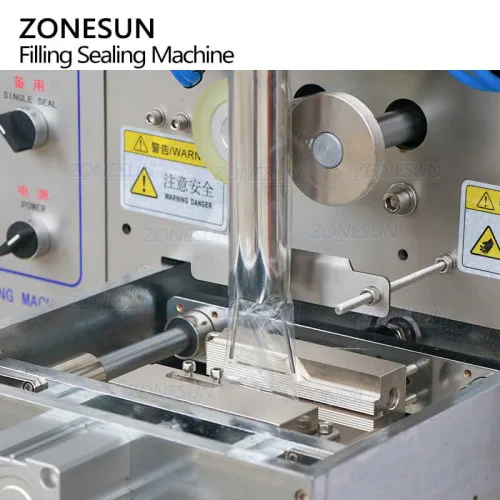

Sealing Structure
Back side&three sides sealing can be customized, has the function of color mark positioning.

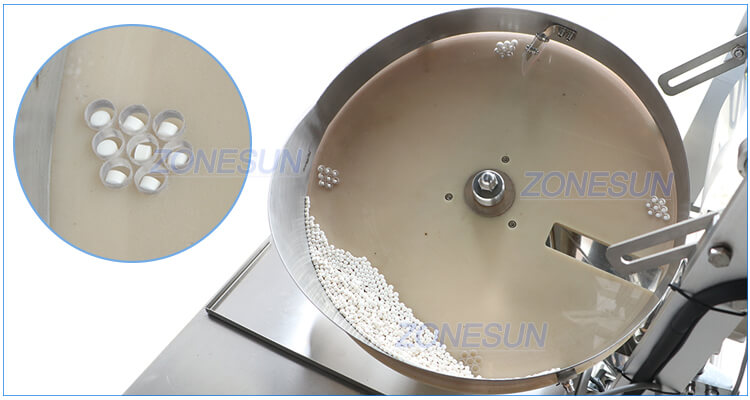

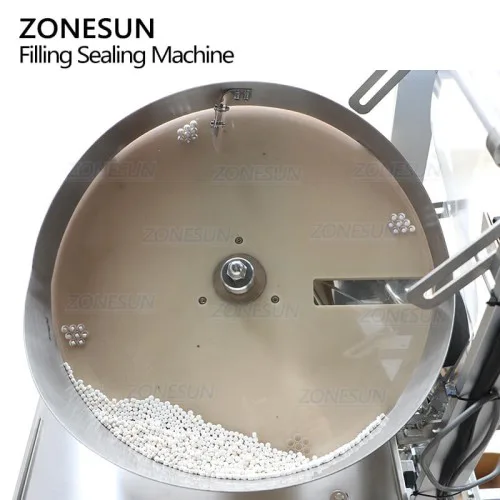

Counting Disc
Customized based on granule size and measuring range, we need detailed sample information.
Custom Sealing Structure
Sealing pattern can be customized based on production need.
