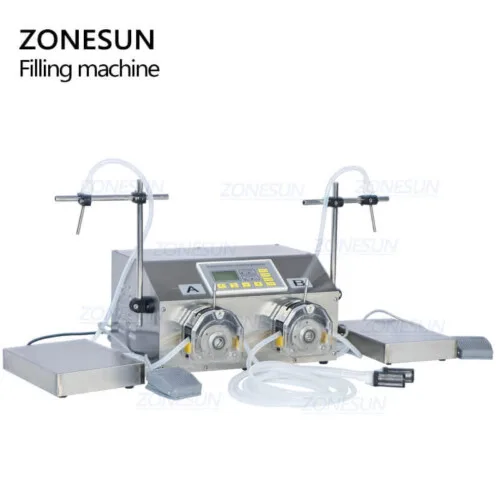

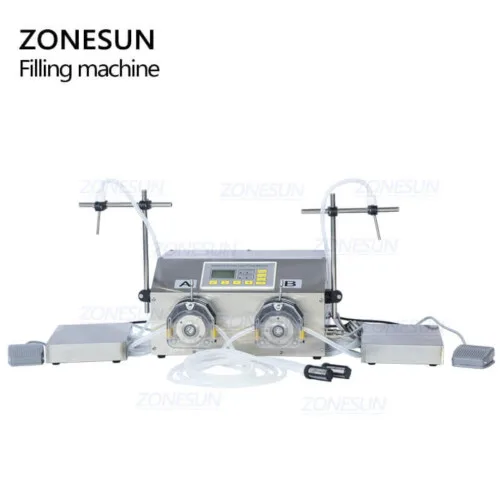

Double Head Peristaltic Pump Weighing Filling Machine

Double Head Peristaltic Pump Weighing Filling Machine
  • Double Head Peristaltic Pump Weighing Filling Machine
  • Double Head Peristaltic Pump Weighing Filling Machine
  • Double Head Peristaltic Pump Weighing Filling Machine
  • Double Head Peristaltic Pump Weighing Filling Machine
  • Double Head Peristaltic Pump Weighing Filling Machine
  • Double Head Peristaltic Pump Weighing Filling Machine

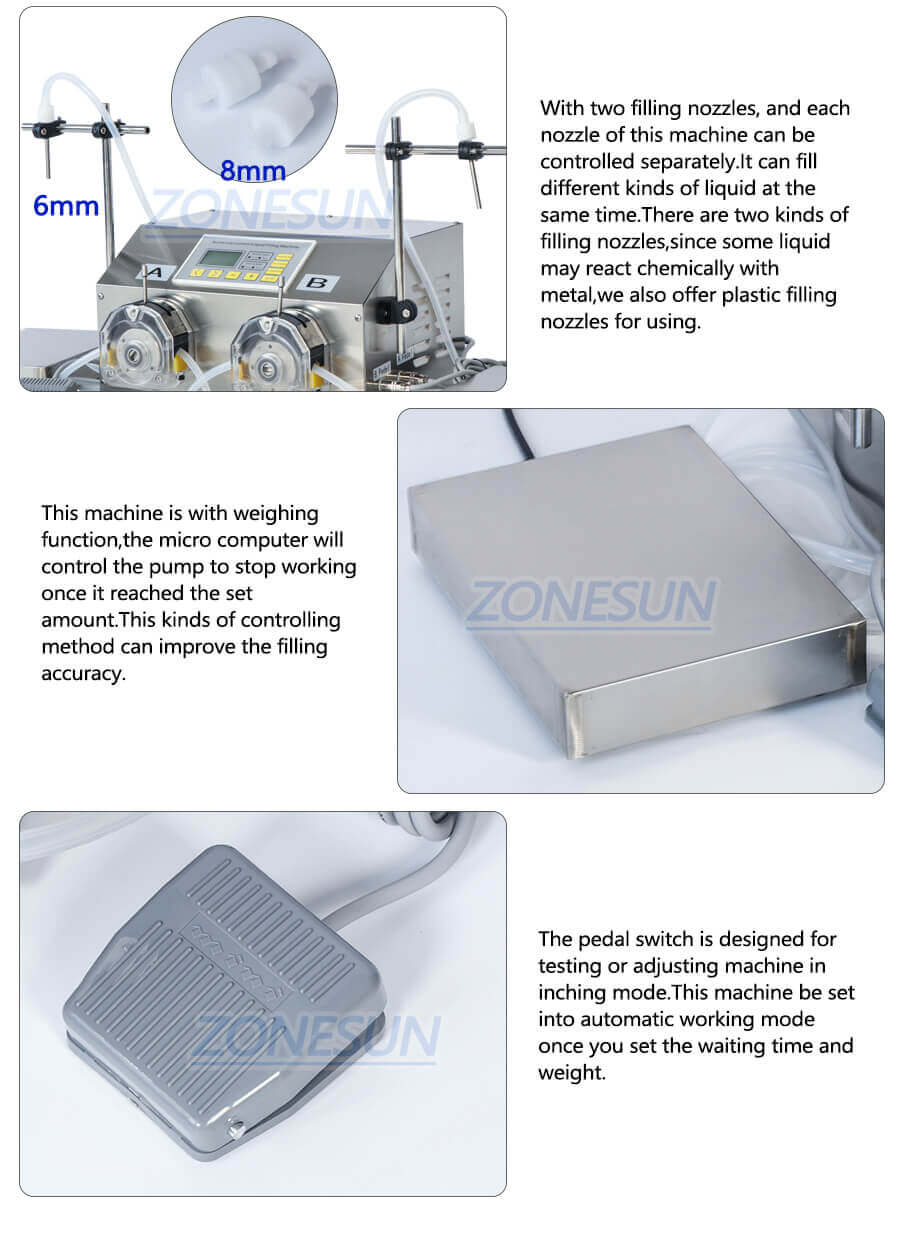

This machine control the micro computer to fill liquid and once the filling volume reach the set amount, the machine will stop to fill liquid. It is designed with the peristaltic pump, the liquid will not pass through the pump during filling, ensure the cleanliness. The weighing function can make it fills liquid more accurately. This machine is suitable for ink, water, essential oil, perfume etc.

Machine Video Click Here：

Product Detail

Product Tags

Product Description:

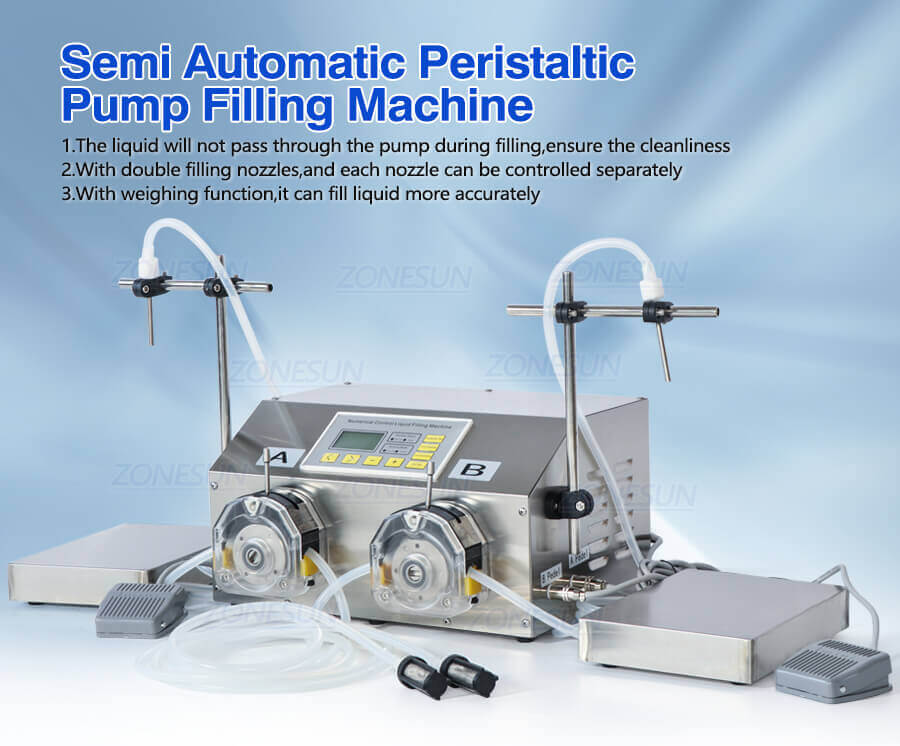

This machine control the micro computer to fill liquid and once the filling volume reach the set amount, the machine will stop to fill liquid. It is designed with the peristaltic pump, the liquid will not pass through the pump during filling, ensure the cleanliness. The weighing function can make it fills liquid more accurately. This machine is suitable for ink, water, essential oil, perfume etc.

Product Parameters:

Machine ModelZS-PP532W
Machine Power220V/110V 100W*2

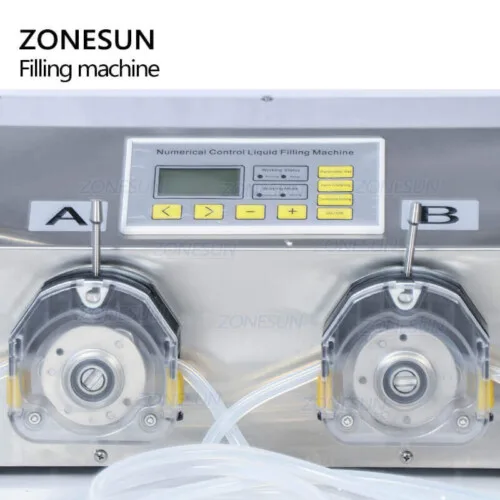

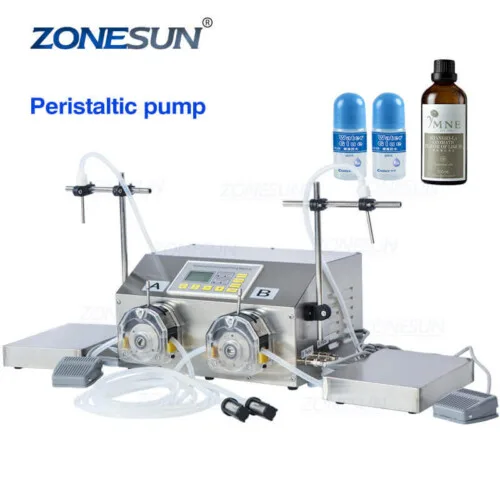

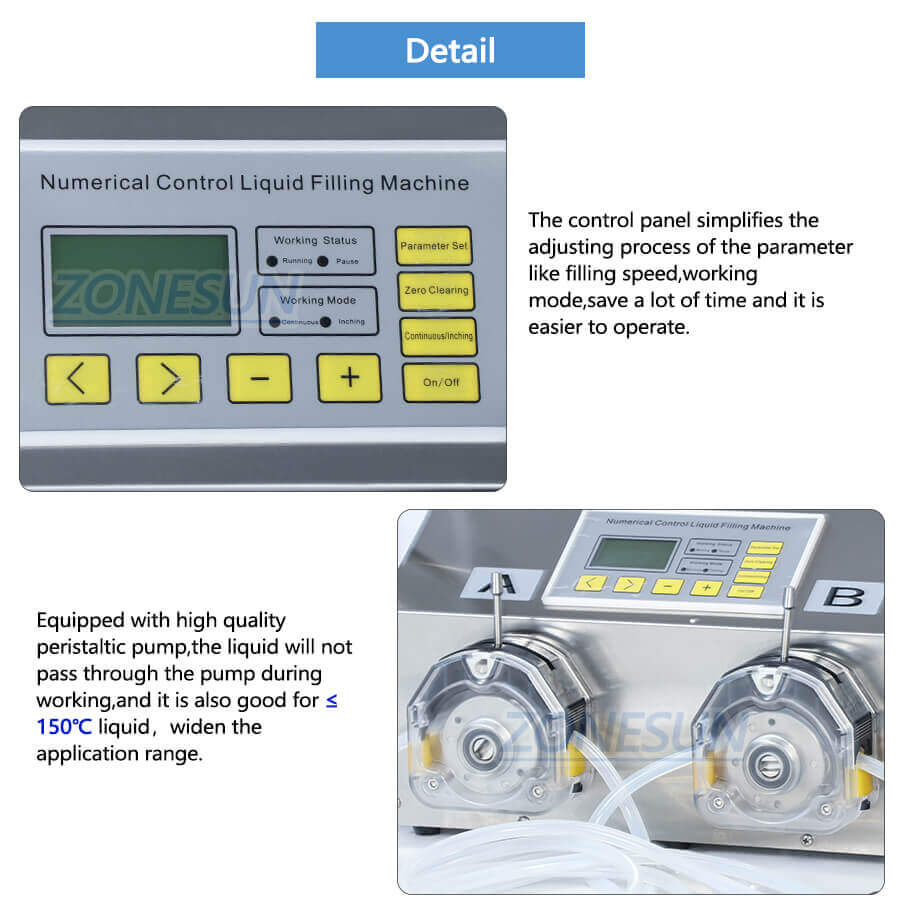

PumpPeristaltic Pump
Max Flow Rate6L/min *2
Filling Range30ml-6L *2

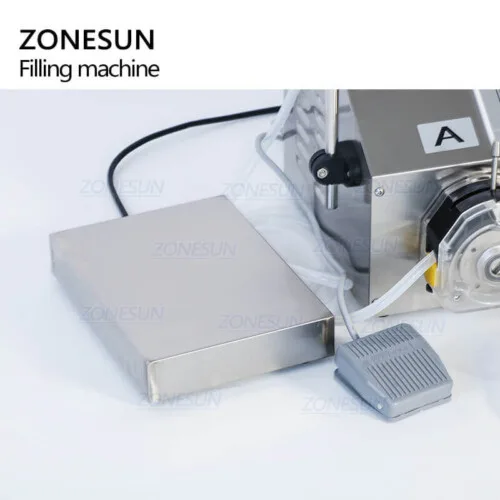

Weighing Range30g-10kg
Filling Error±1g
Hose Diameter6.4mm(ID) /9.4mm(OD)
Hose Length2m(inlet) /1m(outlet)
Filling Nozzle Diameter6mm /8mm
Liquid Temperature＜150℃
Max Suction Distance
4m
Max Head of Delivery4m
Suitable Liquidink,water,essential oil,perfume etc

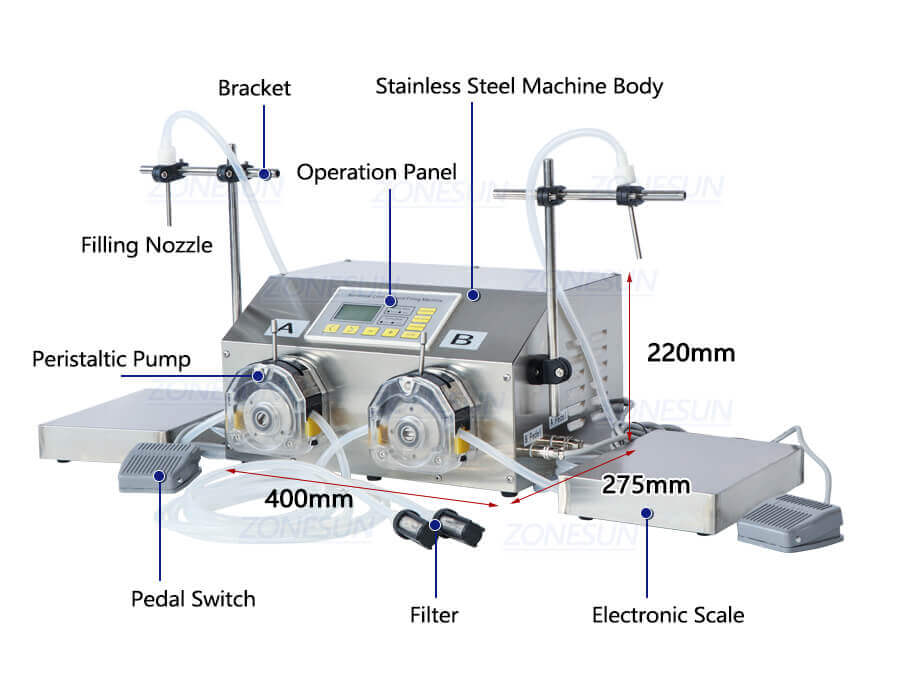

Machine SizeAbout 400*275*220mm
Machine WeightAbout 14kg
Package Size560*400*280mm(machine)+300*290*160mm(electronic scale)
Package WeightAbout 15kg
