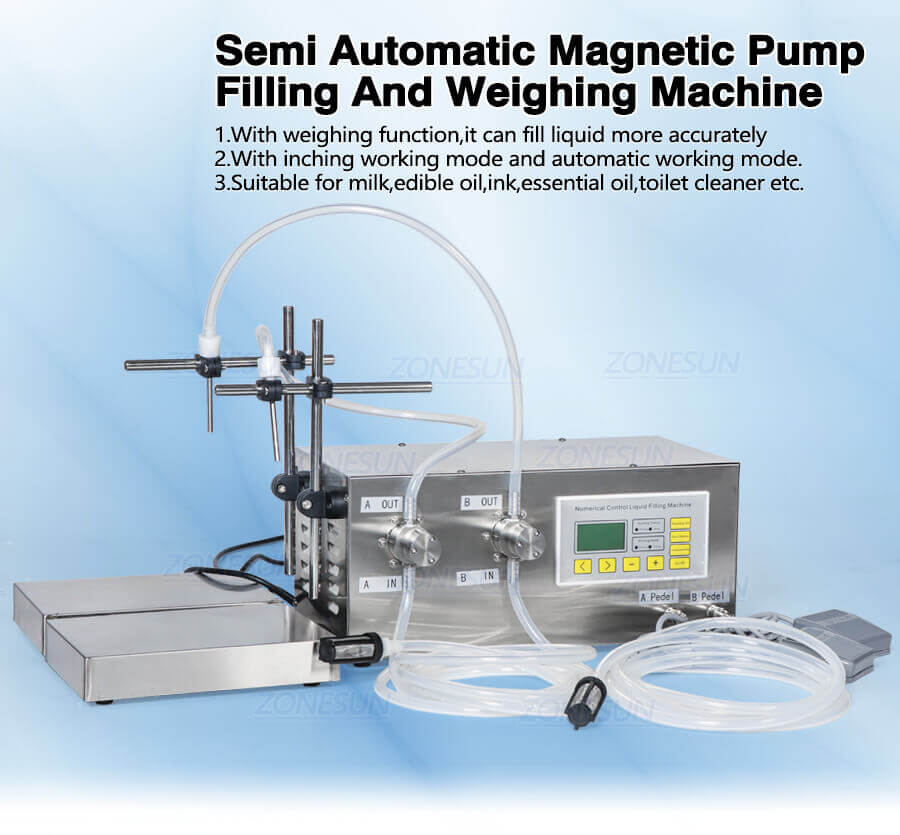

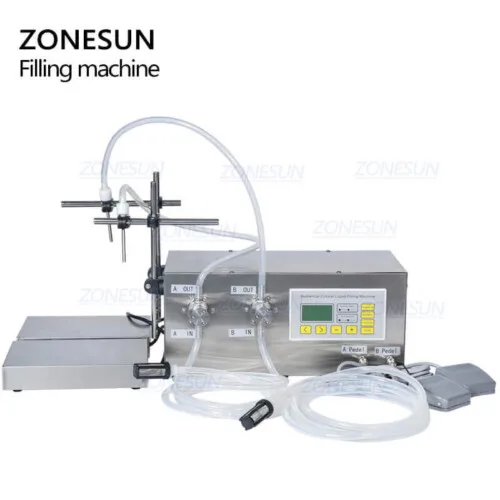

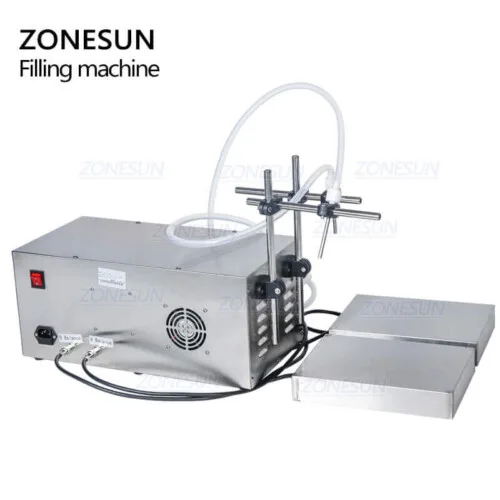

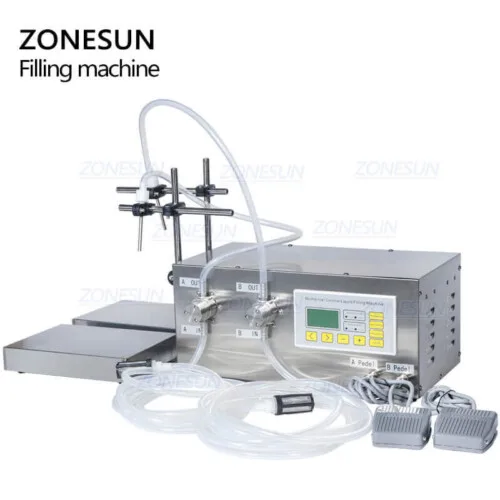

Double Head Magnetic Pump Weighing Filling Machine

The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Product Description:
The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries.

Product Parameters:

Machine Model	ZS-MP252W
Machine Power	110/220V 50-60HZ 100W*2
Pump	316 Stainless Steel Magnetic Pump
Max Flow Rate	3500ML/min *2

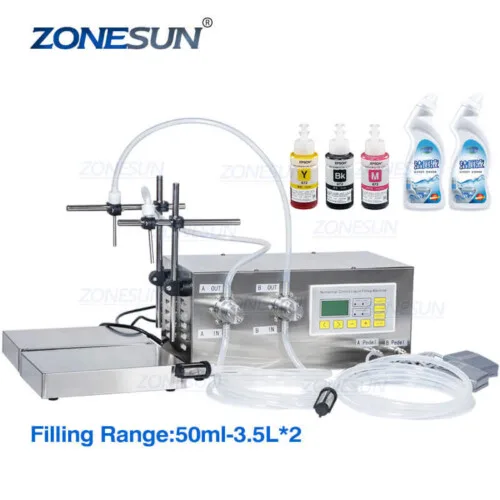

Filling Range	50ml-3500ml*2
Weighing Range	30g-10kg
Filling Error	About ±1g
Hose Diameter	6mm( ID ) /10mm( OD )
Hose Length	2m( inlet ) /1m( outlet )
Filling Nozzle Diameter	6mm /8mm
Liquid Temperature	＜120℃
Max Suction Distance	4m
Max Head of Delivery	4m
Suitable Liquid	milk,ink,cooking oil,essential oil etc

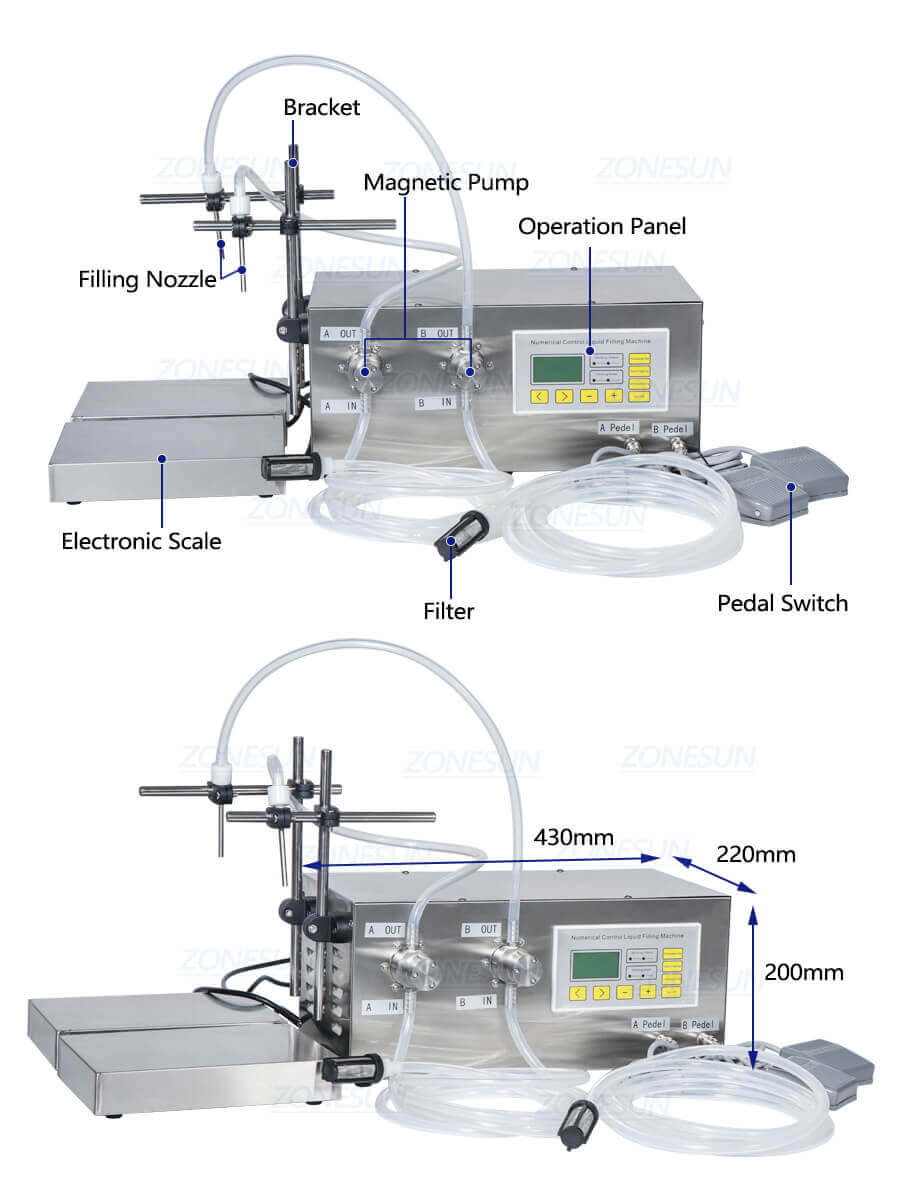

Machine Size	About 430220200mm
Machine Weight	About 12kg
Package Size	560400280mm(machine)+300290160mm(weighing device)
Package Weight	About 13.3kg
