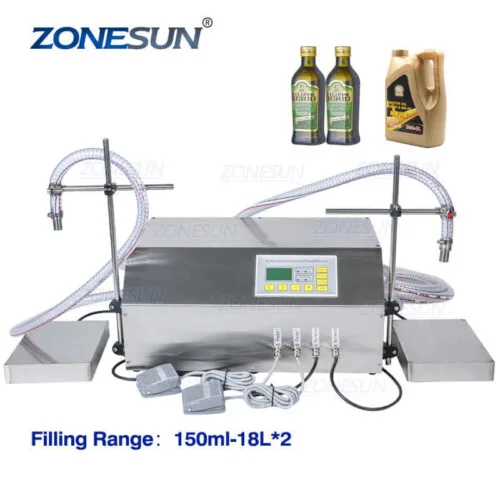

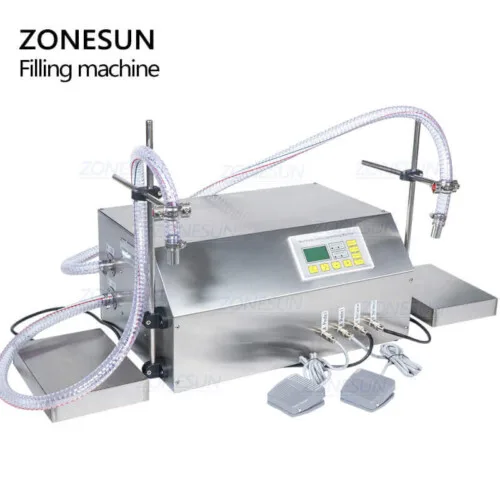

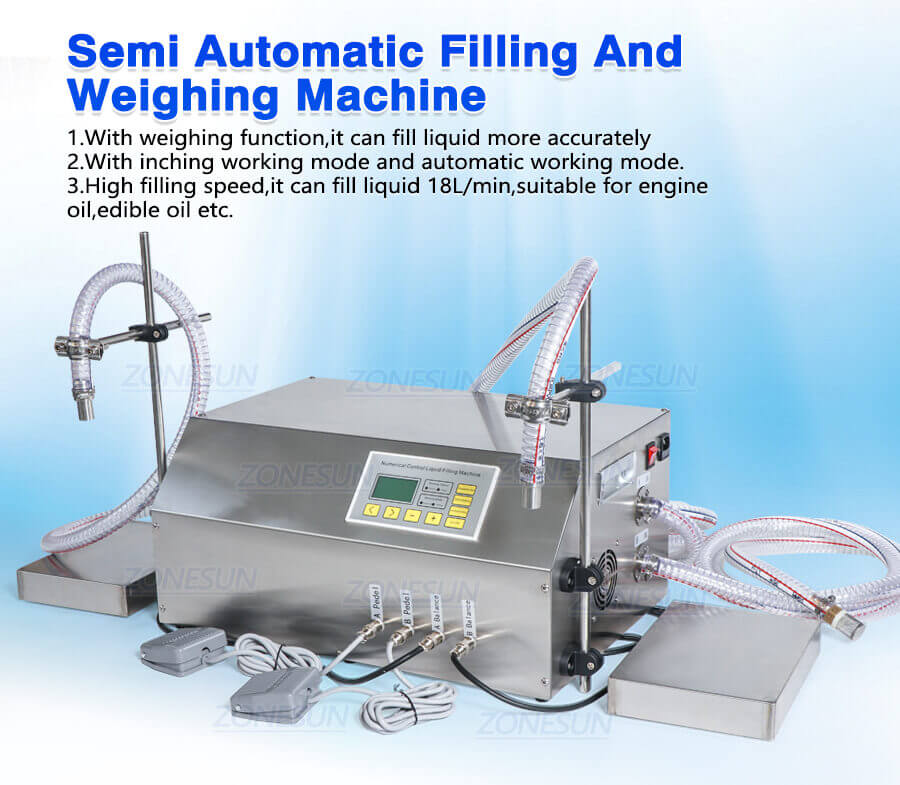

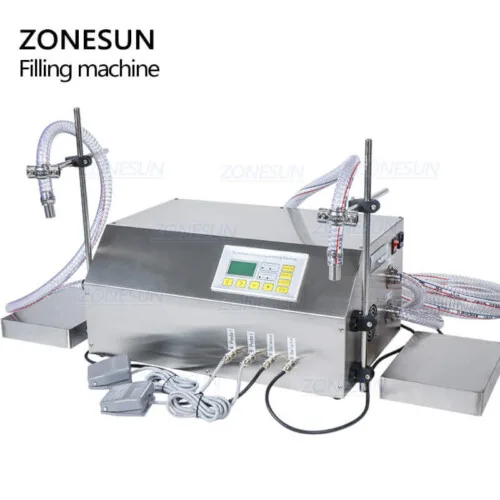

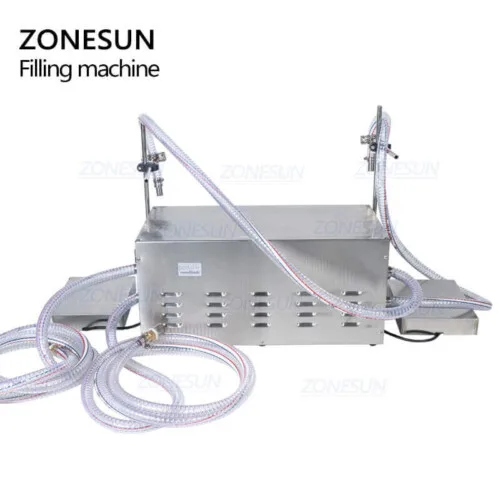

Double Head Gear Pump Weighing Filling Machine

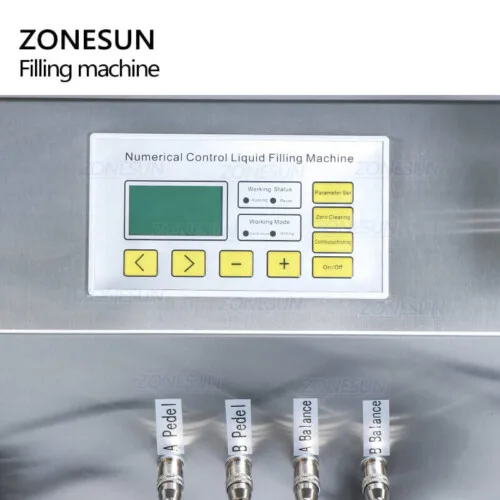

The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries, but please notice that this machine is not suitable for filling water.

Machine Video Click Here：

Send email to us

Product Detail

Product Tags

Product Description:
The weighing and filling machine controls the panel to pump liquid. The electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kind of filling method can reduce filling error greatly. It is widely used in medicine, chemical industry, food, beverage, wine, industrial oil, cosmetics and other industries, but please notice that this machine is not suitable for filling water.

Product Parameters:

Machine Model	ZS-GP262W
Machine Power	110/220V 50-60HZ 550W*2
Pump	Gear Pump
Max Flow Rate	18L/min*2
Filling Range	150ml-18L *2
Weighing Range	150g-100kg
Filling Error	About ±10g

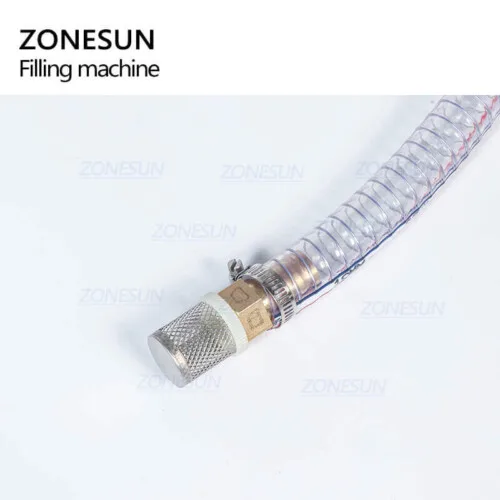

Hose Diameter	19mm( ID ) /25mm( OD )
Hose Length	3m( inlet ) /1m( outlet )

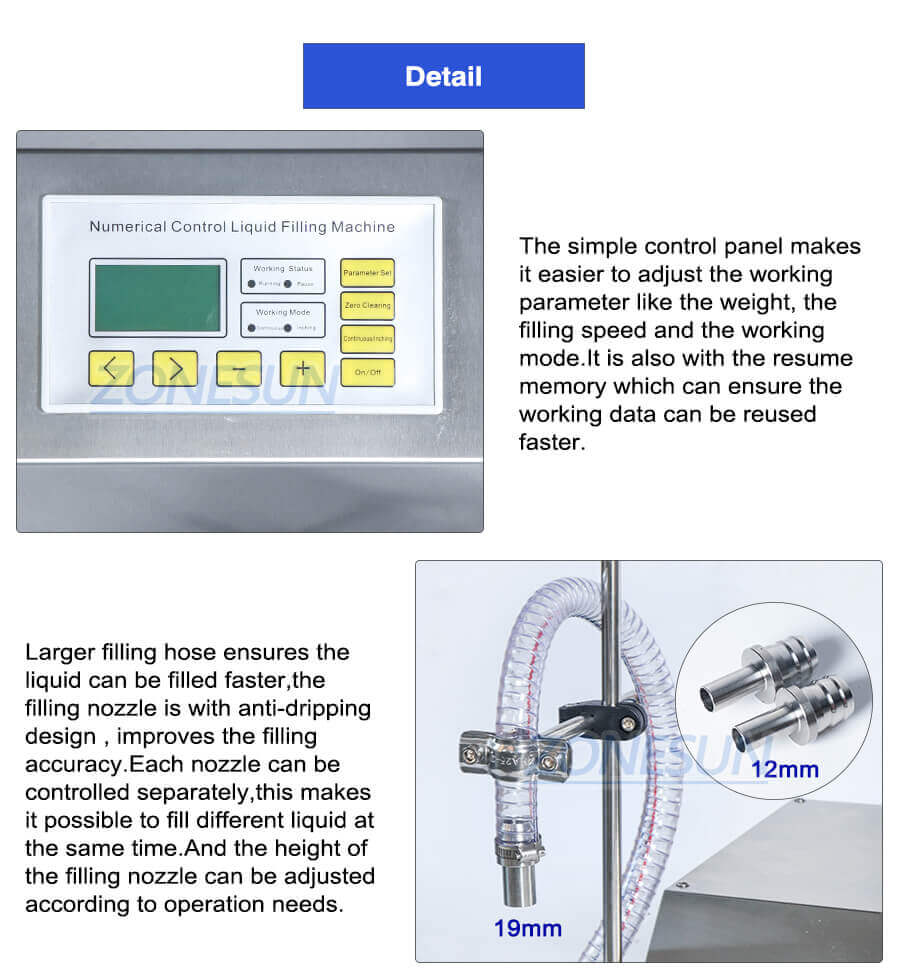

Filling Nozzle Diameter	12mm /19mm
Liquid Temperature	＜90℃
Max Suction Distance	4m
Max Head of Delivery	4m
Suitable Liquid	engine oil,cooking oil,not suitable for water

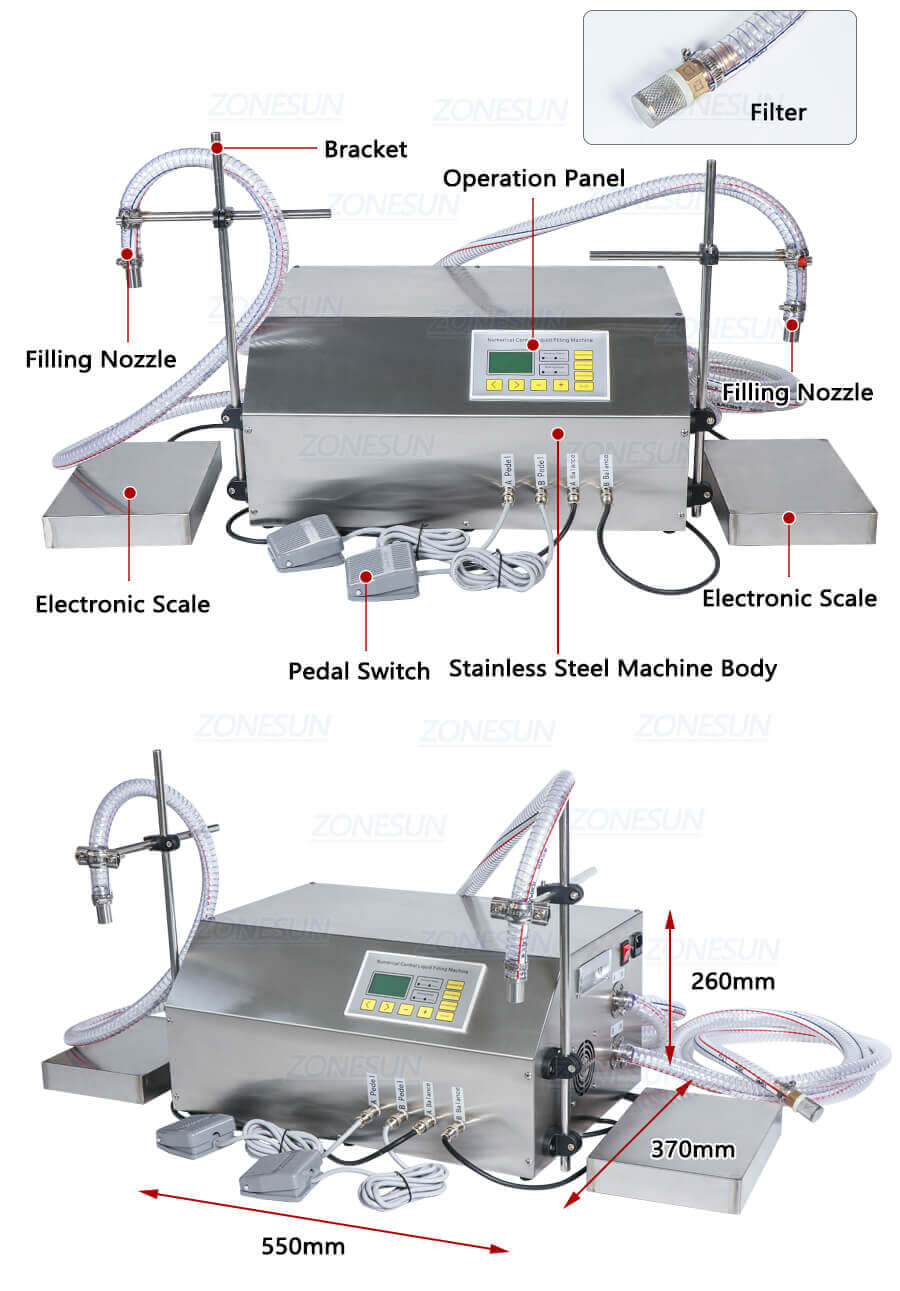

Machine Size	About 550370260
Machine Weight	About 28kg
Package Size	700430320mm(machine)+400370260(weighing device)
Package Weight	About 30kg
