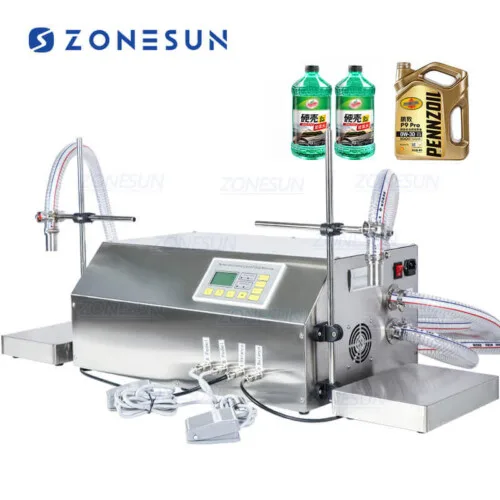

Double Head Diaphragm Pump Weighing Fillinng Machine

Double Head Diaphragm Pump Weighing Fillinng Machine
  • Double Head Diaphragm Pump Weighing Fillinng Machine
  • Double Head Diaphragm Pump Weighing Fillinng Machine
  • Double Head Diaphragm Pump Weighing Fillinng Machine
  • Double Head Diaphragm Pump Weighing Fillinng Machine
  • Double Head Diaphragm Pump Weighing Fillinng Machine
  • Double Head Diaphragm Pump Weighing Fillinng Machine

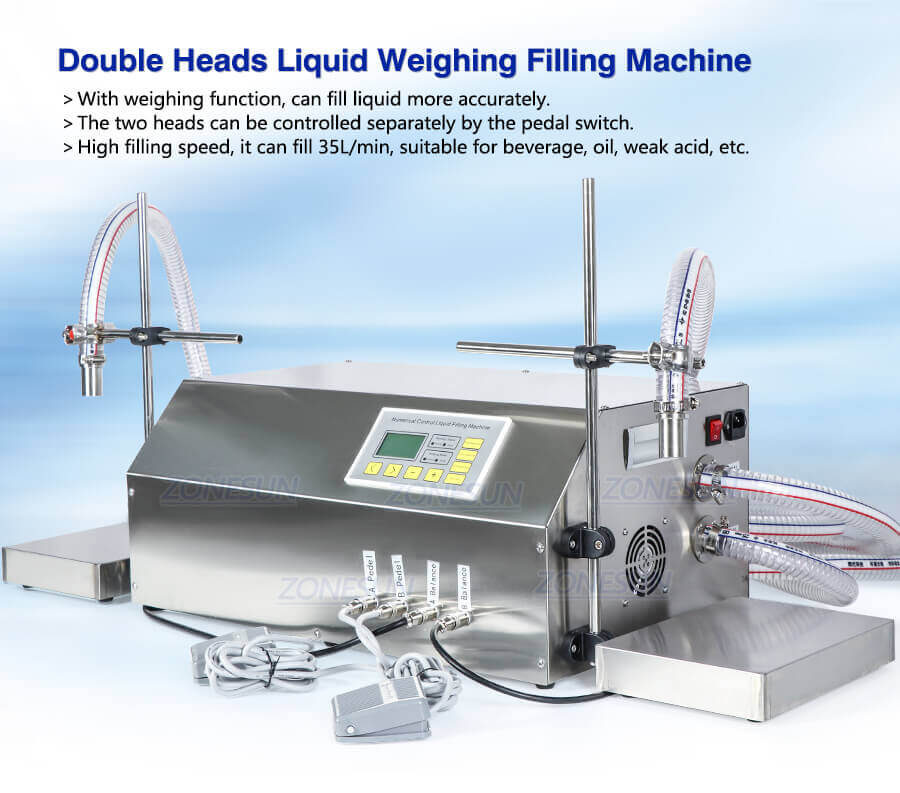

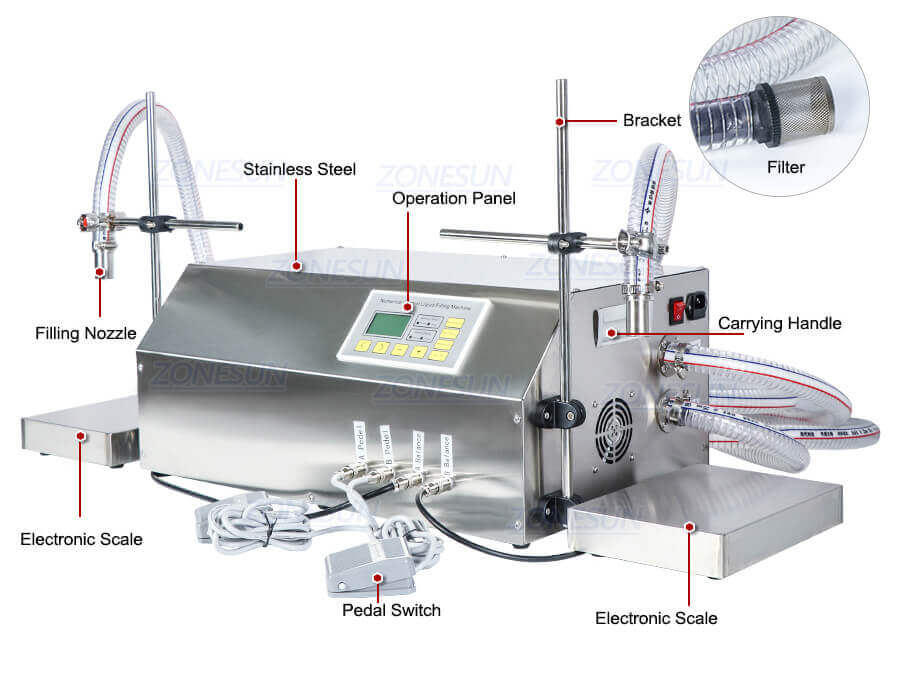

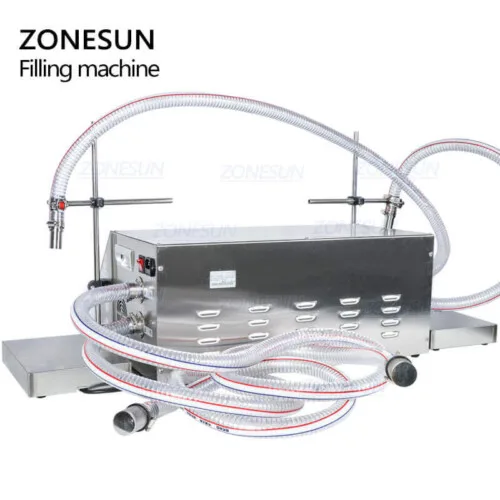

This semi automatic weighing filling machine is suitable for liquid which is without particles, like milk, cooking oil, essential oil, shampoo, etc. Each nozzle can fill 35L/min, improving working efficiency. With weighing function, it can fill liquid precisely. The machine can be widely used in cosmetic, medicine, beverage, daily chemical industries.

Machine Video Click Here：

Product Detail

Product Tags

Product Description:
This semi automatic weighing filling machine is suitable for liquid which is without particles, like milk, cooking oil, essential oil, shampoo, etc. Each nozzle can fill 35L/min, improving working efficiency. With weighing function, it can fill liquid precisely. The machine can be widely used in cosmetic, medicine, beverage, daily chemical industries.

Product Parameters:

Machine ModelZS-DP432W
Machine Power220V/110V 50-60Hz 1100W
Machine PumpDiaphragm Pump
Max Flow Rate35L/min*2
Filling Range150g-100kg
Weighing Range150g-100kg
Filling Error±10g

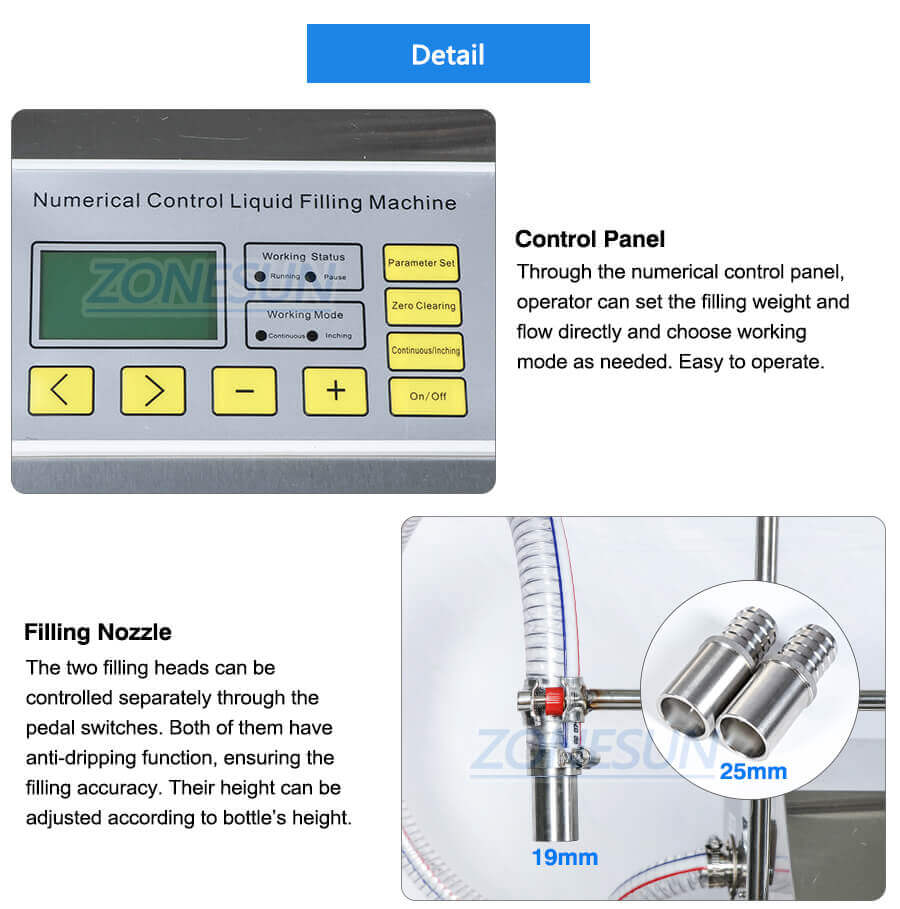

Filling Nozzle Diameter19mm/25mm
Hose Diameter19mm(ID)/25mm(OD) & 25mm(ID)/32mm(OD)
Hose Length3m(inlet)/1m(outlet)
Liquid Temperature＜50℃
Max Suction Distance4m
Max Head of Delivery4m
Memory Function out of PowerAvailable

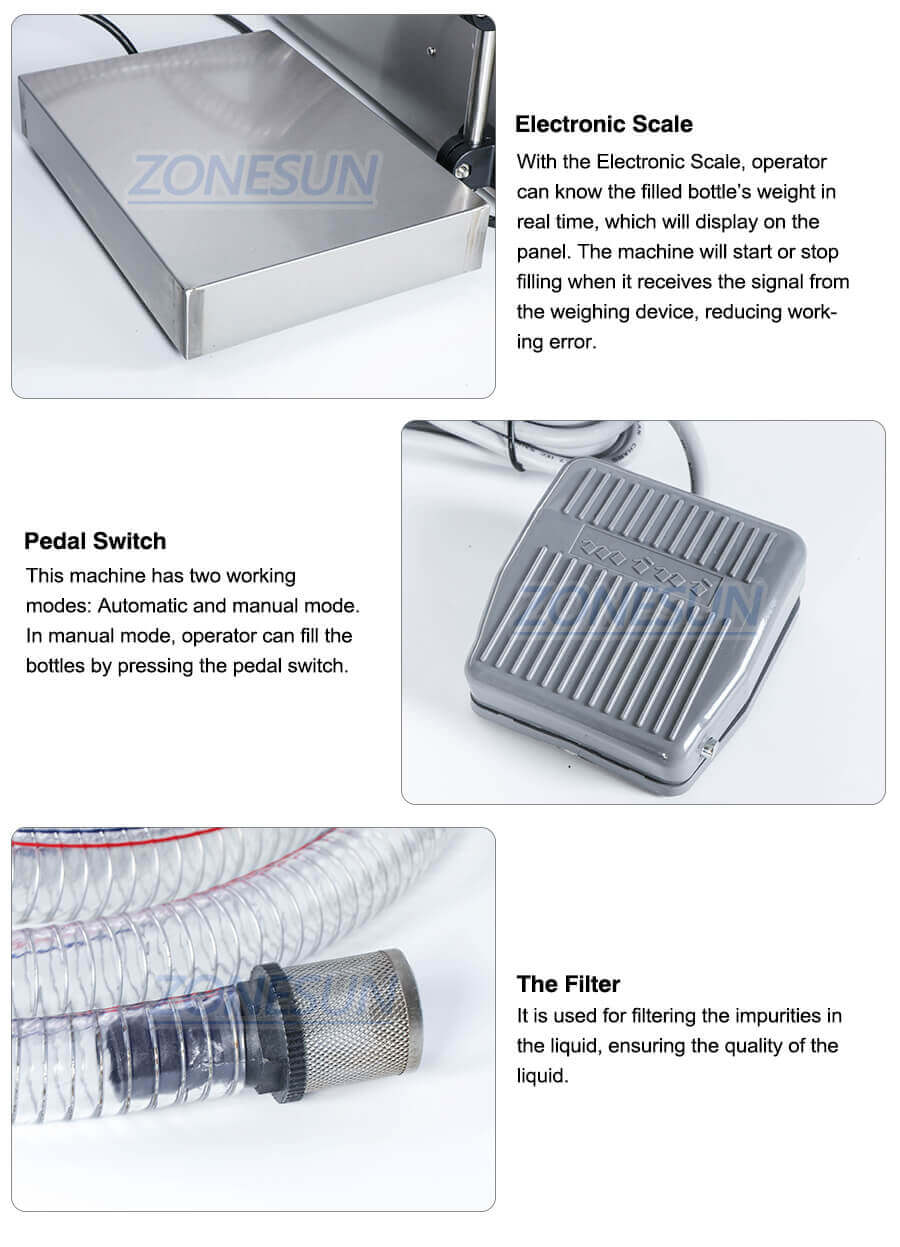

Weighing Device SizeAbout 250mm*180mm*42mm
Machine SizeAbout 600mm*370mm*250mm(L*W*H)
Package Size
About 700*430*320mm(machine)
About 300*290*160mm(weighing device)
Net weight/Gross weightAbout 28kg/30kg
