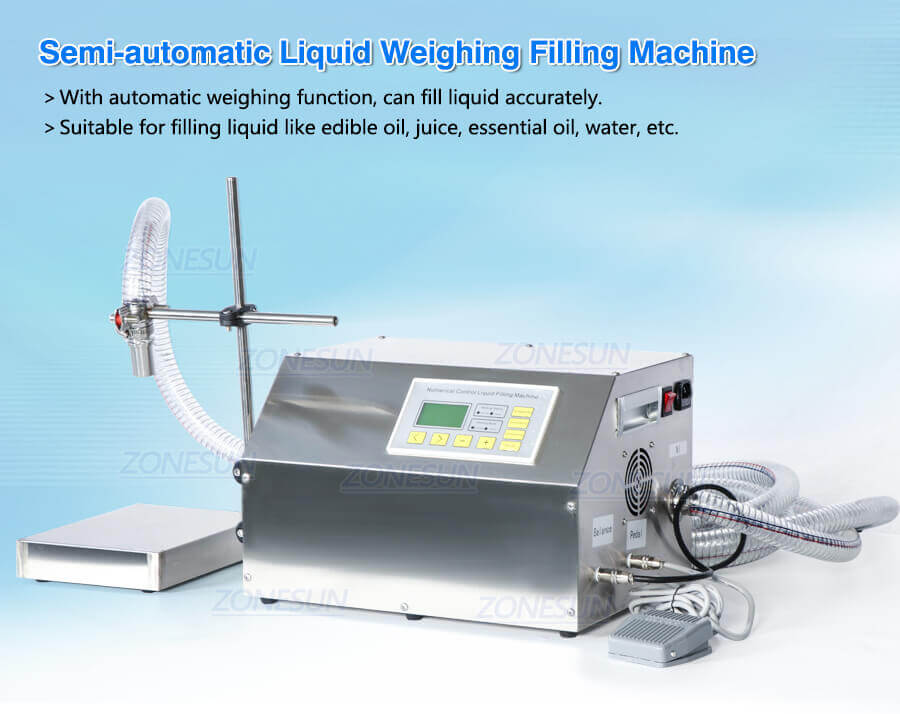

This semi automatic filling machine is equipped with diaphragm pump which is suitable for filling low viscosity liquid like water, milk, juice, perfume etc. It is with weighing function, the electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kinds of machine can fill liquid more accurately.

Machine Video Click Here：

Product Detail

Product Tags

Product Description:

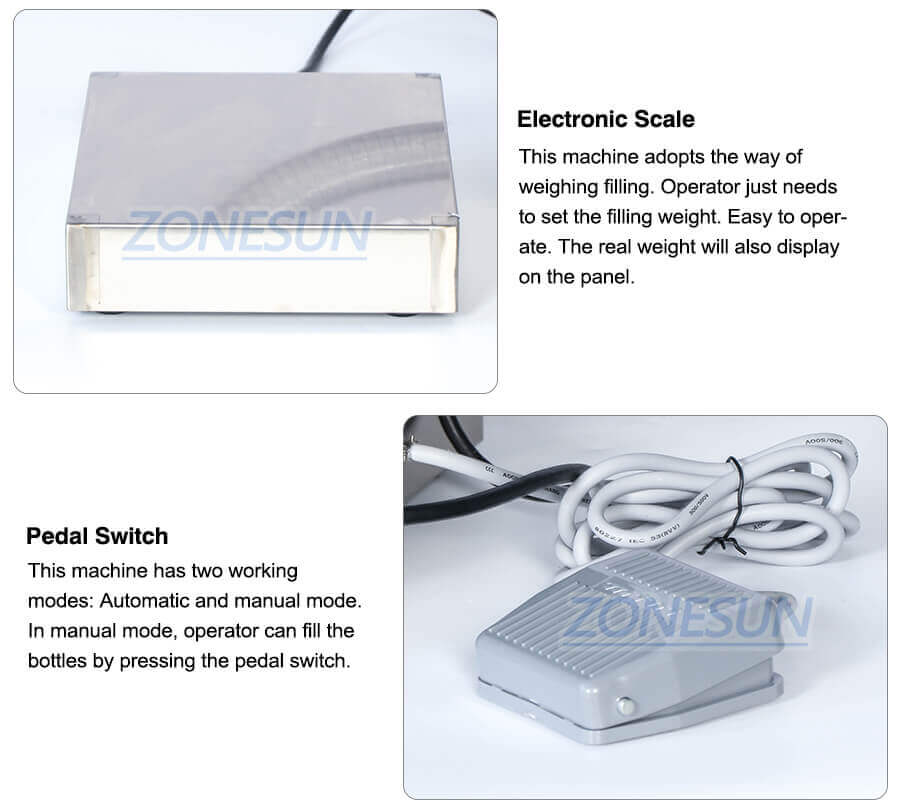

This semi automatic filling machine is equipped with diaphragm pump which is suitable for filling low viscosity liquid like water, milk, juice, perfume etc. It is with weighing function, the electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kinds of machine can fill liquid more accurately.

Product Parameters:

Machine ModelZS-DP431W
Machine Power220V/110V 50-60Hz 550W
Machine PumpDiaphragm Pump
Max Flow Rate35L/min
Filling Range150g-10kg
Weighing Range150g-10kg
Repetitive Error±10g

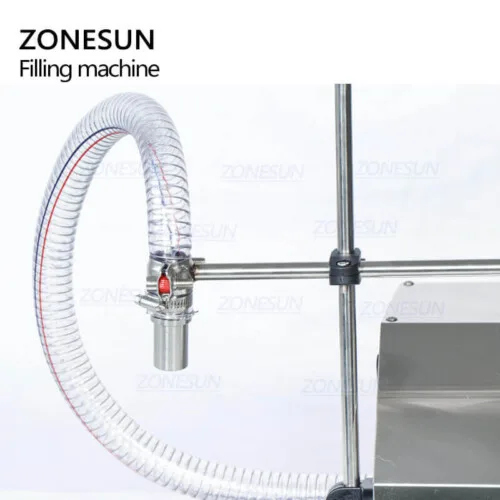

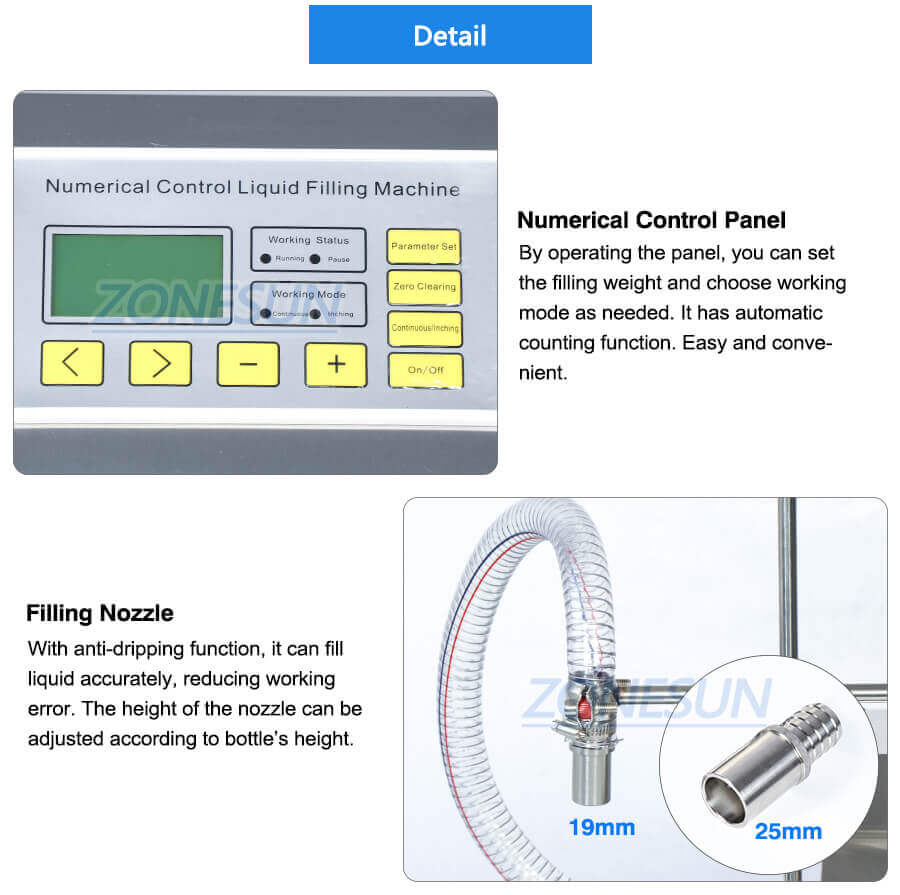

Filling Nozzle DiameterΦ25mm&Φ19mm
Hose Diameter19mm(ID)/25mm(OD) & 25mm(ID)/32mm(OD)
Hose Length3m(inlet) /1m(outlet)
Max Suction Distance4m
Liquid Temperature
＜50℃
Memory Function without ElectricityAvailable
Machine SizeAbout 400mm*300mm*260mm
Weighing Device SizeAbout 250*180*42mm
Net weight/Gross weightAbout 14kg/16kg
Package Size
About 410*500*330mm(machine)
About 400*370*270mm(weighing device)
