Automatic Perfume Production Line

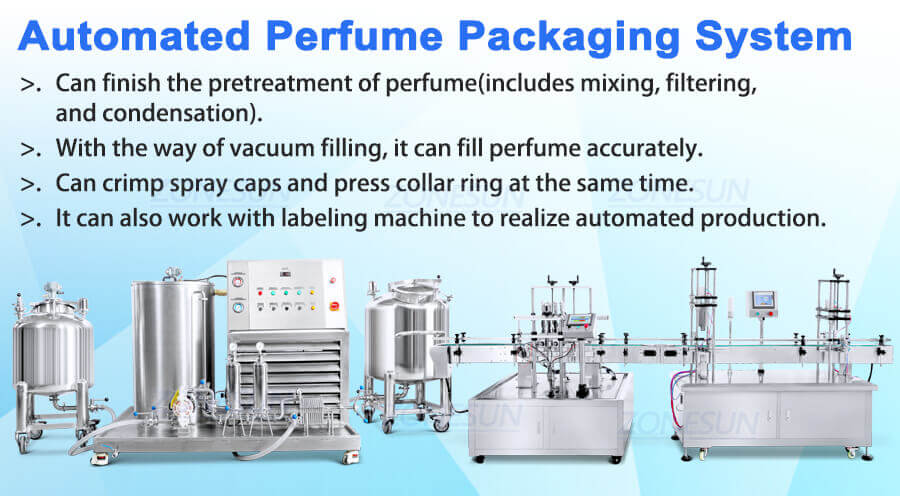

This packaging system can be used for the pretreatment of perfume(includes mixing,filtering,condensation)and producing(like filling perfume into bottles,crimping spray bottles).
Description：
This packaging system can be used for the pretreatment of perfume(includes mixing,filtering,condensation)and producing(like filling perfume into bottles,crimping spray bottles).

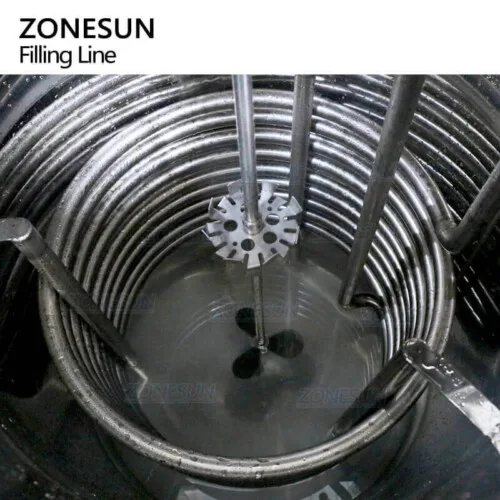

Mixing Tanks
| Machine Capacity | 20L/50L/100L/200L/300L/500L/800L/1000L/1500L/2000L/3000L/4000L/5000L |
| Rotating Speed | 40r/min(Can be customized for 0–80r/min) |
| Tank Material | 304/316 stainless steel |
| Extra Function | Emulsfying/Explosion/Vacuum / Heating/ Weighing and so on |

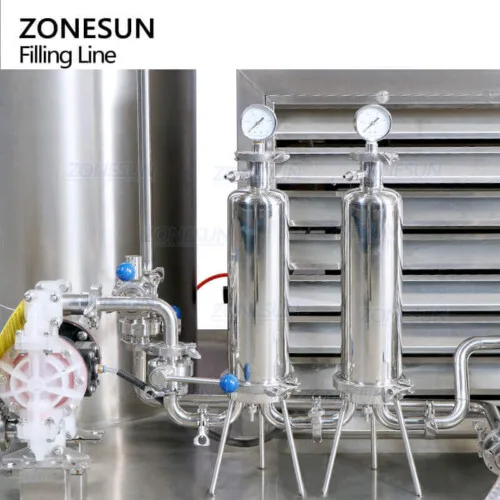

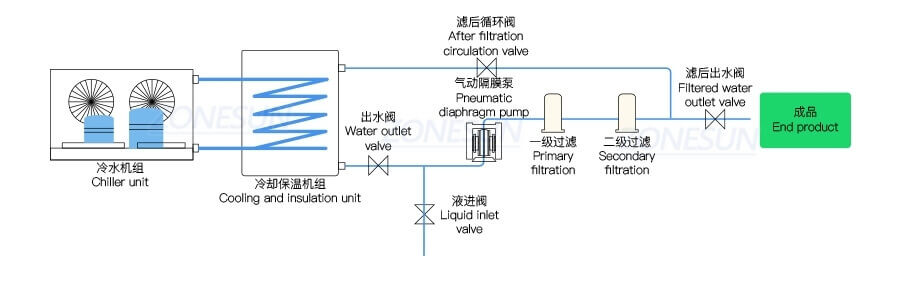

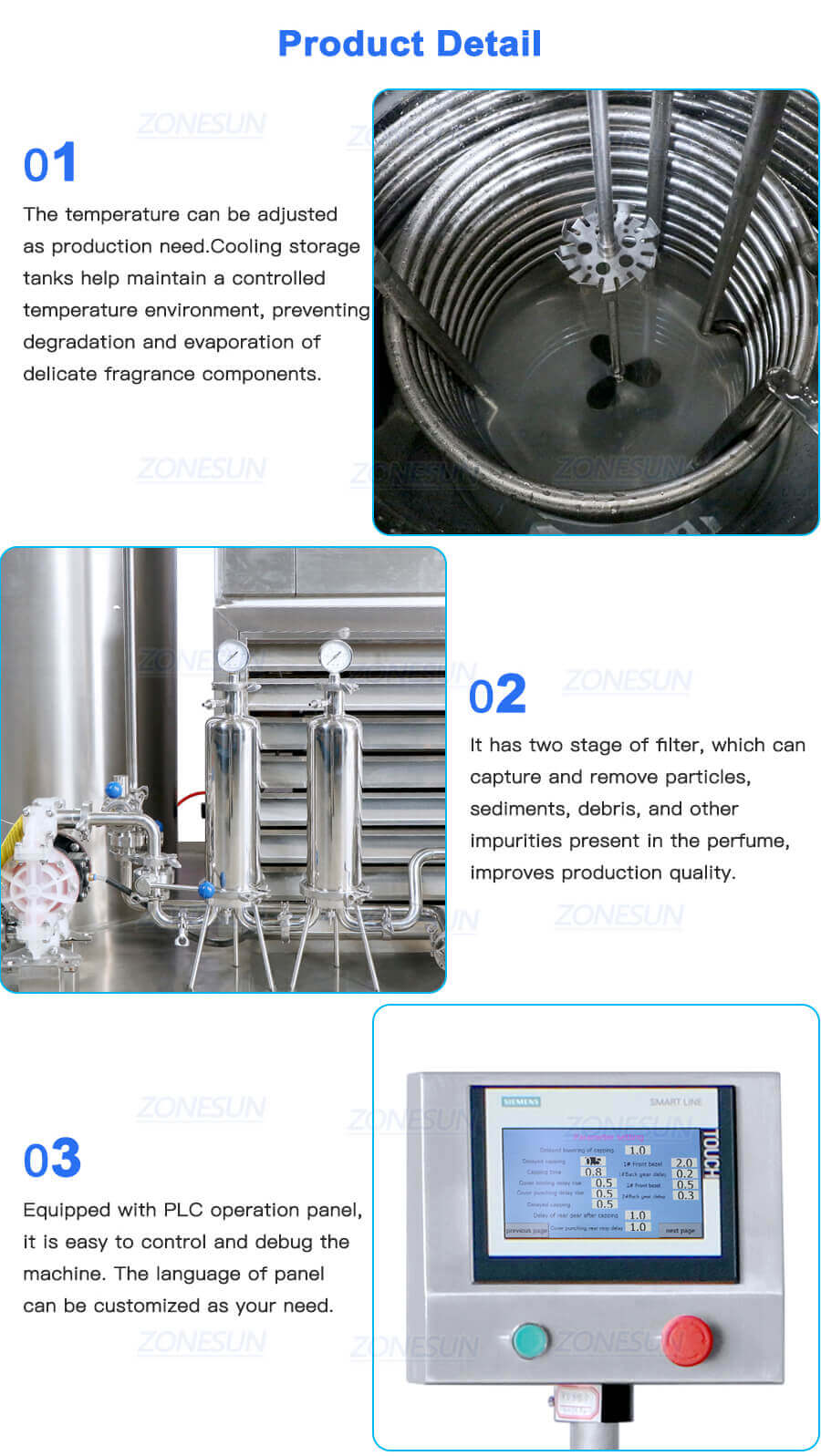

Filtering Machine
| Machine Model | ZS-PF100 | ZS-PF200 | ZS-PF300 | ZS-PF500 | ZS-PF1000 | ||
| Volume | 100L | 200L | 300L | 300L | 500L | 500L | 1000L |
| Specification | 2P | 3P | 3P | 5P | 5P | 10P | 10P |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power | 1.5KW | 2.2KW | 2.2KW | 3.75KW | 3.75KW | 7.5KW | 7.5KW |
| Refrigeration Temperature | -5—-15℃ | -5—-15℃ | -5—-15℃ | -5—-15℃ | -5—-15℃ | -5—-15℃ | -5—-15℃ |
| Refrigerating Fluid | R22 | R22 | R22 | R22 | R22 | R22 | R22 |
| Air Pressure | 0.5-0.6MPa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa |
| Filter Pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa | 0.2Mpa |
| Filter Accuracy | 0.2um | 0.2um | 0.2um | 0.2um | 0.2um | 0.2um | 0.2um |

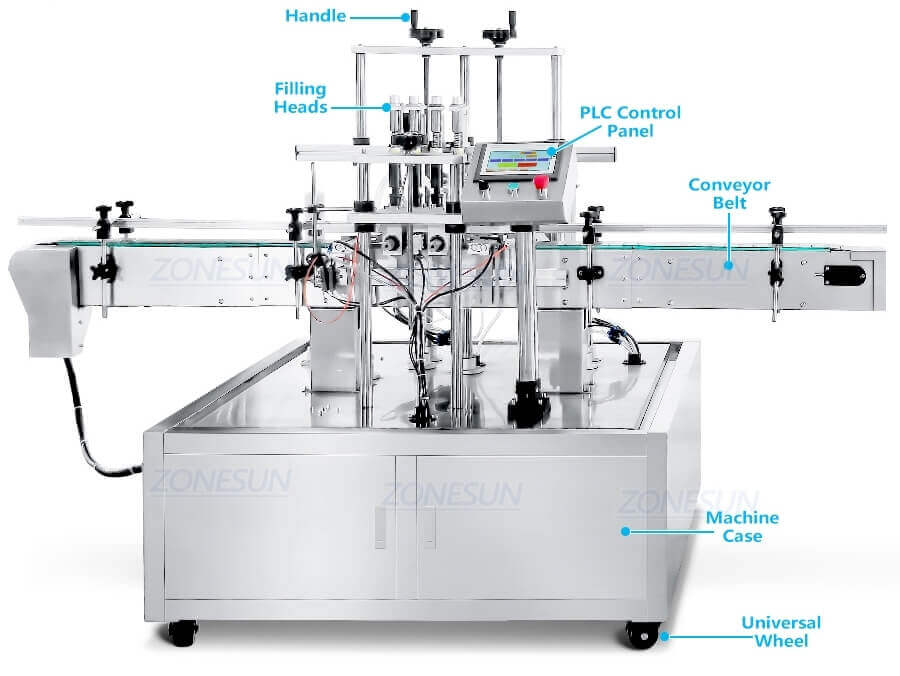

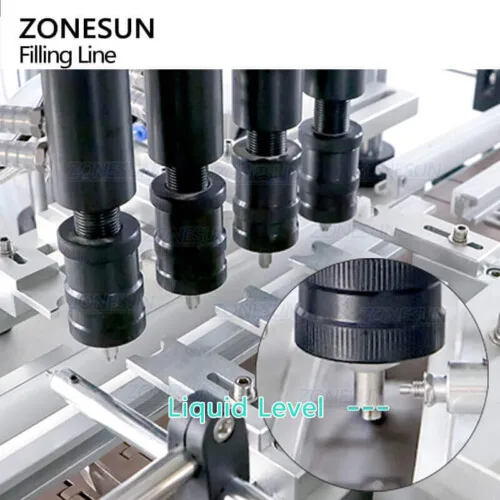

Filling Machine
| Model | ZS-YTZL4A |
| Filling Head | 4 Heads |
| Air Pressure | 0.5-0.8MPa |
| Liquid Level Accuracy | ±1mm |
| Viscosity Range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working Speed | 20-40 bottles/min(depending on filling volume) |
| Bottle Height | ≤250mm |
| Bottle Opening Size | ≤φ4.5mm-φ28mm |
| Adjustable Liquid Level (from the bottle mouth) | 15-50mm |
| Pumping Rate | 5.5L/S |
| Machine Size | About 1500*1150*1530mm |
| Package Size | About 1660*1310*1670mm |
| Net Weight/Gross Weight | About 278kg/339kg |

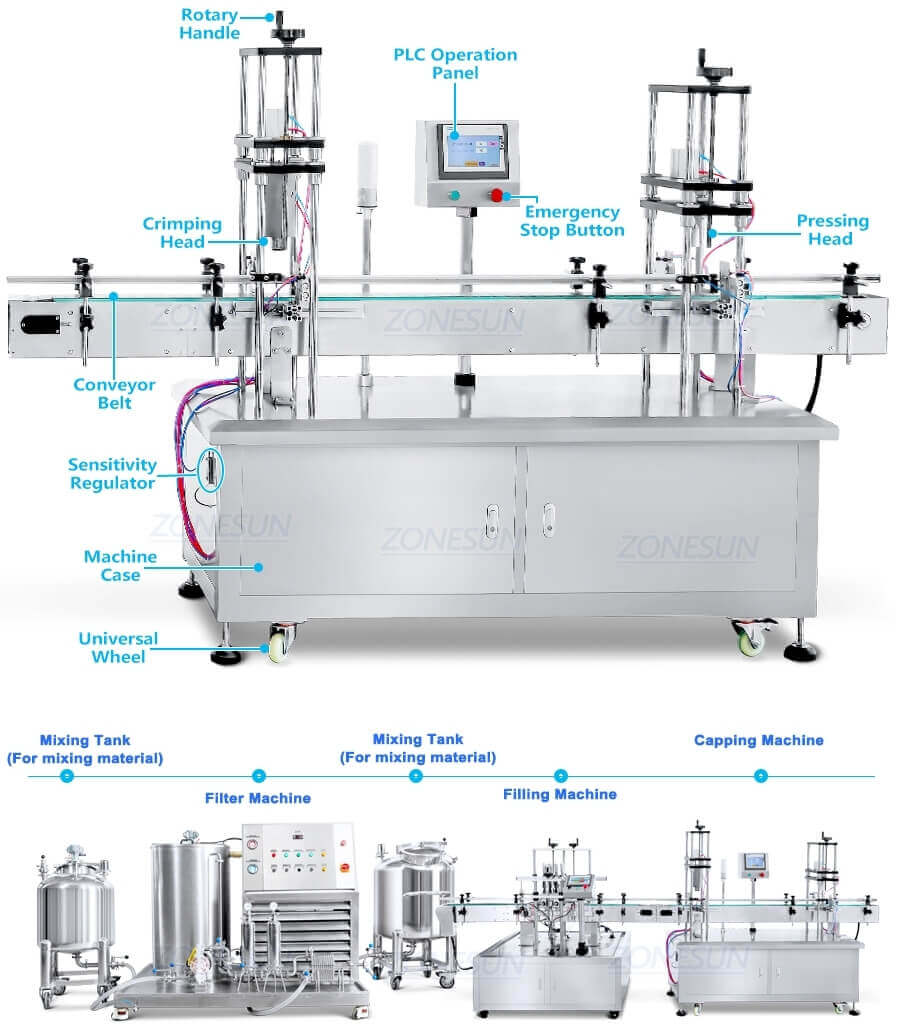

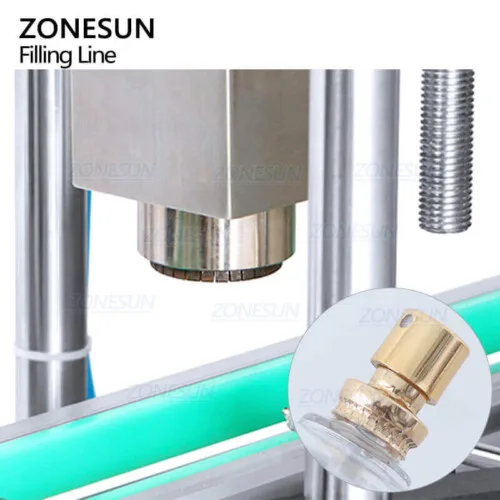

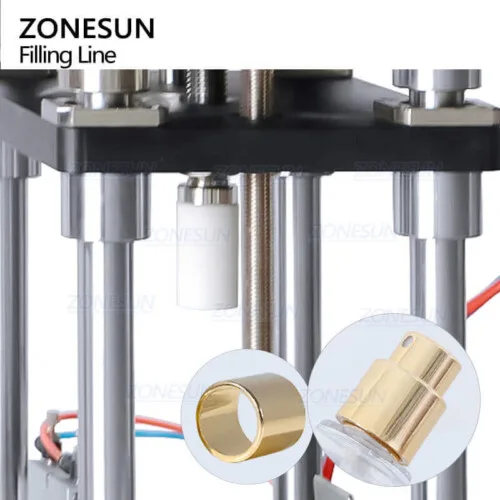

Capping Machine
| Machine Model | ZS-YG11U |
| Voltage | 220V/110V 50-60Hz |
| Power | 1.5kW |
| Capping Speed | About 20bottles/min(depending on bottle and cap size) |
| Suitable Bottle Height | 50-200mm |
| Bottle Cap Diameter | 15-22mm |
| Bottle Mouth Diameter | 14-20mm |
| Suitable Bottle Diameter | 40-110mm |
| Machine Size | About 2600*760*1700mm(L*W*H) |
| Machine Weight | About 300kg |
