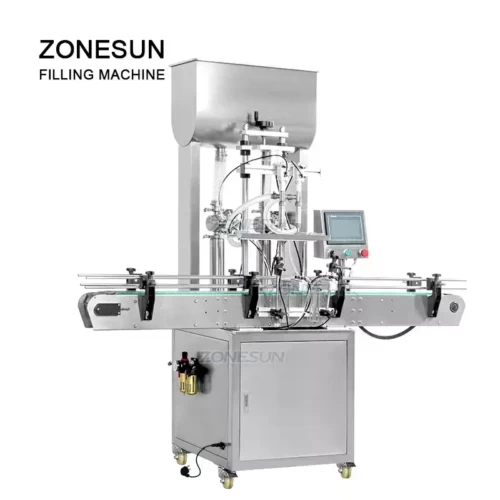

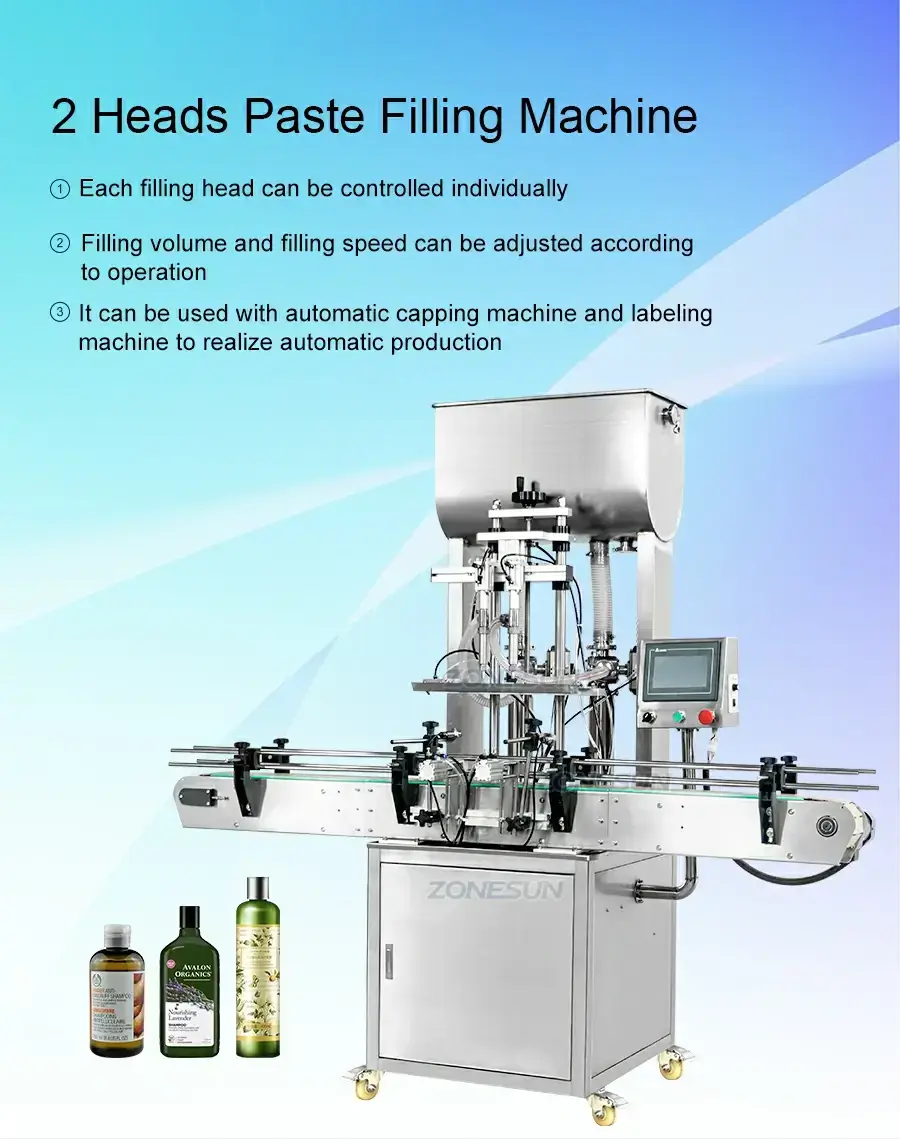

Double-head Paste Filling Machine

Double-head Paste Filling Machine
  • Double-head Paste Filling Machine
  • Double-head Paste Filling Machine
  • Double-head Paste Filling Machine
  • Double-head Paste Filling Machine
  • Double-head Paste Filling Machine
  • Double-head Paste Filling Machine
There are several nozzles and customers can control each nozzle separately if they need this.This full automatic liquid filling machine is with conveyor and can be used as one part of production line.These are all help you improve working efficiency greatly.

Product Detail

Product Tags

Description：

There are several nozzles and customers can control each nozzle separately if they need this.This full automatic liquid filling machine is with conveyor and can be used as one part of production line.These are all help you improve working efficiency greatly.

Parameter：

ModelZS-YT2T-2P
Voltage110/220V 50-60HZ
Flling range5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working speed(base on water)10-40bottles/min
Filling accuracy≤+1%

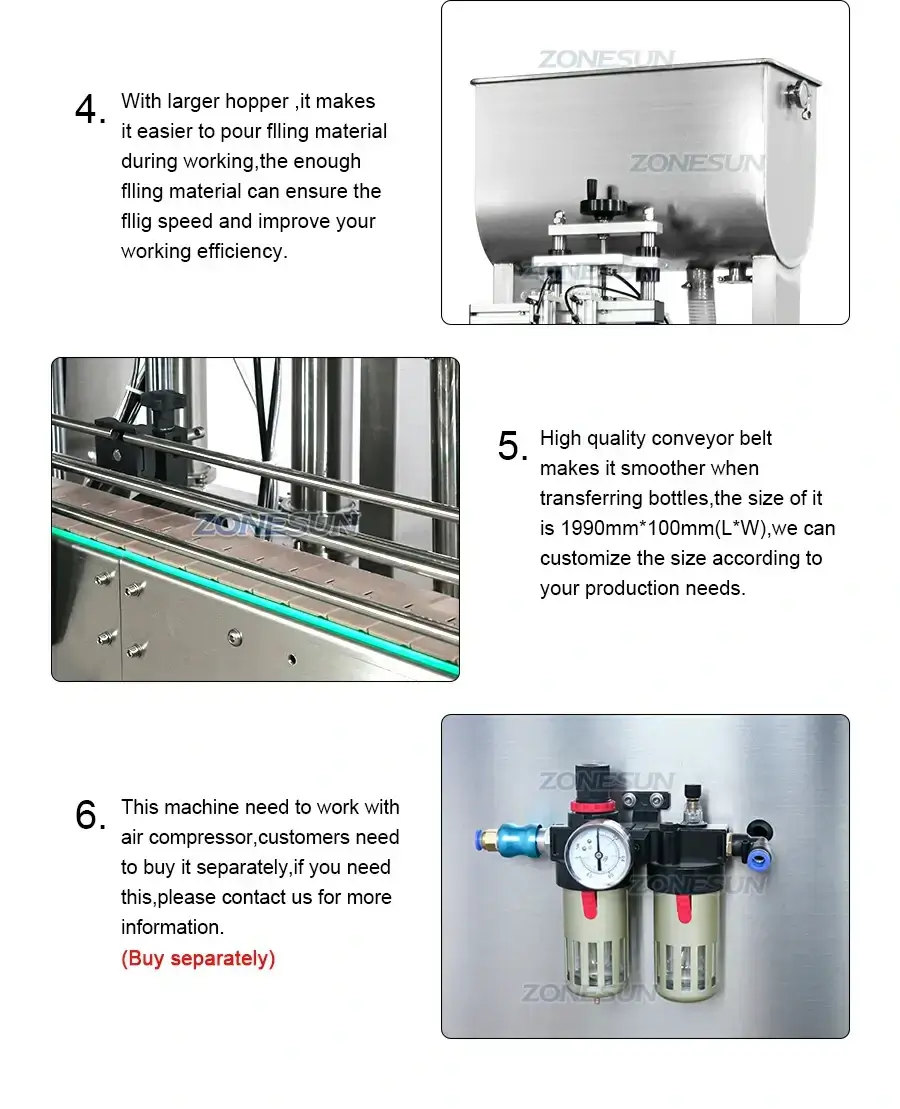

Conveyor sizeAbout 1990*100mm(L*W)
Size of filling nozzleφ10mm
Size of air compressor connectorφ10mm
Power of whole machine800W
Machine sizeAbout 2000*1200*2300mm
Package sizeAbout 1150*1000*2130mm
Net weight/Gross weightAbout 220kg/370kg
